Cold Rolled Inconel 600 Coil with Bright Surface and Corrosion Resistant Alloy 600 Strip
Product Details
| Model NO. | Inconel 600 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness Range | 0.05MM To 3MM |
| Width Range | Up To 3000 Wide | Surface Finish | 2B / 2D / BA |
| Hardness Options | 1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, Spring Hard, Annealed, Pickled Soft | Density | 8.4 G/cm3 |
| Melting Point | 1370-1425 °C | Tensile Strength | 550 N/mm2 (Annealing Treatment) |
| Yield Strength | 240 N/mm2 (Annealing Treatment) | Elongation | 30% (Annealing Treatment) |
| Brinell Hardness | 95 HB (Annealing Treatment) | ||
| Highlight | Cold Rolled Inconel 600 Coil,Bright Surface Alloy 600 Strip,Corrosion Resistant N06600 Coil |
||
Product Description
Inconel 600 / Ns312 / N06600 / Na14 / Nc15fe / 2.4816 T0.1-1.0mm Cold Rolled Coils
We are a professional manufacturer of Inconel 600 Plates, Sheets, Strips, and Coils (UNS N06600, 2.4816, Alloy 600, Inconel 600). Our production capabilities include a comprehensive range of specifications and processing options to meet exact customer requirements.
Product Specifications
Available Dimensions
- Plates and Sheets: 4.5mm to 200mm thickness, up to 3000mm width
- Strips and Coils: 0.05mm to 3mm thickness
- Surface Finishes: 2B, 2D, BA
- Hardness Options: 1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, Spring Hard, Annealed, Pickled Soft
Processing Capabilities
- Custom cutting to reduce material costs, production time, and scrap
- Polishing services: #4, #6, #7, or #8 mirror finish on one or both sides
- Comprehensive quality control with metallurgical laboratory testing
- Chemical composition verification via optical emission spectrometer
- Microstructure examination for strength, ductility, and corrosion resistance
Material Specifications
Standard Designations
| UNS | Trademark | JIS | W.Nr |
|---|---|---|---|
| N06600 | Inconel 600 | NCF600 | 2.4816 |
Chemical Composition
| Alloy | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
|---|---|---|---|---|---|---|---|---|---|
| 600 | Min. 72 | 14-17 | 6-10 | Max. 0.15 | Max. 1 | Max. 0.5 | Max. 0.5 | Max. 0.015 | Max. 0.015 |
Physical Properties
| Density | Melting Point |
|---|---|
| 8.4 g/cm³ | 1370-1425 °C |
Mechanical Properties
| Alloy Status | Tensile Strength (Rm N/mm²) | Yield Strength (RP0.2 N/mm²) | Elongation A5 % | Brinell Hardness HB |
|---|---|---|---|---|
| Annealing Treatment | 550 | 240 | 30 | 95 |
| Solution Treatment | 500 | 180 | 35 | 85 |
Material Characteristics
- Excellent corrosion resistance in reduction, oxidation, nitric, and other media
- Superior stress corrosion cracking resistance at both room and high temperatures
- Effective corrosion resistance against dry chlorine and chlorine hydride
- Outstanding mechanical properties from sub-zero to high temperatures
- Excellent anti-creep rupture strength, recommended for 700°C+ working environments
Metallurgical Structure
Face-centered cubic lattice structure
Application Fields
- Erosion thermocouple sheath in atmospheric conditions
- Vinyl chloride monomer production: resistant to chlorine, hydrogen chloride, oxidation, and carbonation
- Automotive: exhaust-system components, manifolds, mufflers, catalytic converter shells
- Construction: gutters, downspouts, roofing, siding
- Kitchenware: cooking utensils, dishwashers, ovens, refrigerators
- Chemical processing: oil refinery equipment, heater parts
- Appliances: hot water tanks, residential furnaces
- Power generation: heat exchanger tubing
- Farming: dry fertilizer spreaders, animal pens
How to Order
Please provide the following information:
- Grade, Surface, Thickness, Size, Tolerance, Special requirements
- Quantity
- Price terms
- Contact information

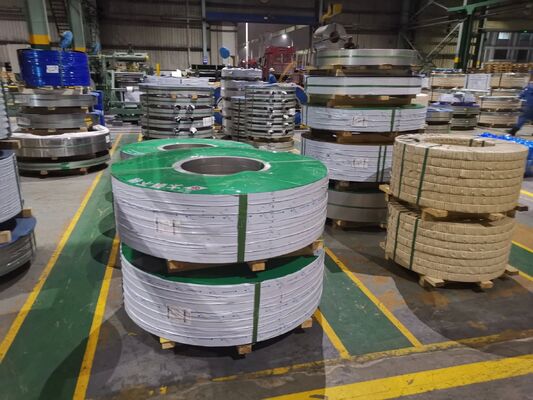

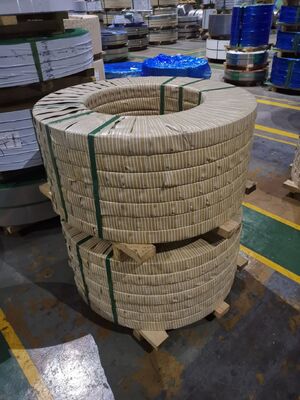

Product Images
