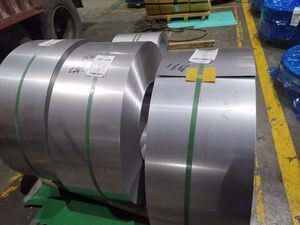

Cold Rolled Inconel 600 Plates and Sheets with Bright Surface and Corrosion Resistance

  • Cold Rolled Inconel 600 Plates and Sheets with Bright Surface and Corrosion Resistance
Certification AISI, ASTM, EN, DIN
Minimum Order Quantity 50 kg
Price US $11.25-23.35 / k
Product Details
Model NO. Inconel 600 Shape Flat
Technique Cold Rolled Surface Treatment Bright
Specification 1220*2440, 1500*3000, 1500*6000, 2000*6000mm Thickness Range 4.5MM To 200MM
Width Range Up To 3000 Wide Strip Thickness 0.05MM To 3MM
Surface Finish 2B / 2D / BA Hardness Options 1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, Spring Hard, Annealed, Pickled Soft
Density 8.4 G/cm3 Melting Point 1370-1425 °C
Tensile Strength 550 N/mm2 Yield Strength 240 N/mm2
Elongation 30%
Highlight

Cold Rolled Inconel 600 Plates

,

Bright Surface Inconel 600 Sheets

,

Corrosion Resistant Inconel 600 Strips
Leave a Message
Product Description
Inconel 600 Plates, Sheets, Strips & Coils
Professional manufacturer of Inconel 600 plates, sheets, strips, and coils (UNS N06600, 2.4816, Alloy 600) with comprehensive production capabilities and strict quality control standards.
Product Specifications
Available Forms & Dimensions
Plates & Sheets: 4.5mm to 200mm thickness, up to 3000mm width
Strips & Coils: 0.05mm to 3mm thickness
Surface Finishes: 2B, 2D, BA
Hardness Options: 1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, Spring Hard, Annealed, Pickled Soft
Material Standards
UNS Trademark JIS W.Nr
N06600 Inconel600 NCF600 2.4816
Chemical Composition
Element Min (%) Max (%)
Ni72-
Cr1417
Fe610
C-0.15
Mn-1
Si-0.5
Cu-0.5
P-0.015
S-0.015
Physical Properties
Density: 8.4 g/cm³
Melting Point: 1370-1425 °C
Mechanical Properties
Alloy Status Tensile Strength (N/mm²) Yield Strength (N/mm²) Elongation A5 (%) Brinell Hardness (HB)
Annealing Treatment 550 240 30 95
Solution Treatment 500 180 35 85
Key Characteristics
  • Excellent corrosion resistance in reduction, oxidation, nitric, and other media
  • Superior stress corrosion cracking resistance at room and high temperatures
  • Outstanding corrosion resistance to dry chlorine and chlorine hydride
  • Excellent mechanical properties from cryogenic to elevated temperatures
  • Good anti-creep rupture strength, recommended for 700°C+ working environments
Metallurgical Structure
Face-centered cubic lattice structure
Processing Capabilities
Custom processing options available to meet exact specifications, reducing material costs, production time, scrap, and internal handling. All grades can be cut to required dimensions.
Polishing services available: #4 Polish, #6 Polish, #7 Polish, or #8 Mirror Finish on one or both sides.
Quality Assurance
Comprehensive quality control with test pieces analyzed in our Metallurgical Laboratory. Each plate, sheet, coil, and strip undergoes optical emission spectrometry for chemical verification and microstructure examination for strength, ductility, and corrosion resistance. All scrap is separated by grade and recycled.
Application Fields
Primary Applications:
• Erosion thermocouple sheath of the atmosphere
• Vinyl chloride monomer production: corrosion resistance to chlorine, hydrogen chloride, oxidation and carbonation
Industry Applications
Automotive: Exhaust-system components, tubular manifolds, mufflers, catalytic converter shells, clamps
Construction: Gutters, downspouts, roofing, siding
Kitchenware: Cooking utensils, dishwashers, ovens, range hoods, refrigerators
Chemical Processing: Oil refinery equipment, oil burner and heater parts
Appliances: Hot water tanks, residential furnaces
Power Generation: Heat exchanger tubing
Farming: Dry fertilizer spreaders, farm animal pens
How to Order
Please provide the following information:

1. Product Specifications: Grade, Surface, Thickness, Size, Tolerance, Special requests
2. Quantity: Amount required
3. Pricing: Price term
4. Contact Details: Your contact information
