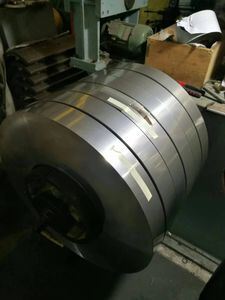

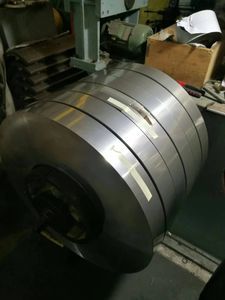

Cold Rolled 301 Stainless Steel Coil with Polished Surface and Width 10-2000mm
Product Details
| Model NO. | 301 | Shape | Round |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Polished |
| Specification Width | 10-2000mm | Carbon Content | 0.15 Max |
| Manganese Content | 2.0 Max | Chromium Content | 16.0 - 18.0 |
| Nickel Content | 6.0 - 8.0 | Density | 7.88 G/cm3 |
| Modulus Elasticity | 193 X 103MPa | Coefficient Expansion | 16.9 μm/m-°C |
| Electrical Resistivity | 69.5 μ Ohm.cm | Thermal Conductivity | 16.2 W/m-K |
| Tensile Strength | 515 MPa | ||
| Highlight | Cold Rolled Stainless Steel Coil,Polished Surface Stainless Steel Strip,Width 10-2000mm 301 Stainless Steel |
||
Product Description
Cold Rolled Stainless Steel ASTM A301 / AISI301 / DIN 1.4310 Coil
Temper Level: Full Hard (4/4 HD)
301 Stainless Steel Overview
UNS: S30100 | EN-DIN: 1.4310 | ASTM A240, ASTM A666
Austenitic chromium-nickel stainless steel with high strength and corrosion resistance. Versatile alloy suitable for appliances, automotive applications, utensils, and high-strength structural parts.
Nominal Composition
| Element | Content (%) |
|---|---|
| C (Carbon) | 0.15 max |
| Mn (Manganese) | 2.0 max |
| P (Phosphorus) | 0.045 max |
| S (Sulfur) | 0.030 max |
| Si (Silicon) | 1.00 max |
| Cr (Chromium) | 16.0 - 18.0 |
| Ni (Nickel) | 6.0 - 8.0 |
| N (Nitrogen) | 0.10 max |
| Fe (Iron) | Balance |
Physical Properties at 70°F (20°C)
| Property | Value |
|---|---|
| Density | 0.285 lb/in³ (7.88 g/cm³) |
| Modulus of Elasticity | 28.0 × 10³ ksi (193 × 10³ MPa) |
| Coefficient of Expansion | 9.4 × 10⁻⁶ µin/in-°F (16.9 μm/m-°C) |
| Electrical Resistivity | 27.4 μΩ·in (69.5 μΩ·cm) |
| Thermal Conductivity | 9.4 Btu·in/ft²·hr·°F (16.2 W/m·K) |
Typical Mechanical Properties (Annealed Condition)
| Property | Minimum Value |
|---|---|
| Tensile Strength (UTS) | 75 ksi (515 MPa) |
| 0.2% Yield Strength | 30 ksi (205 MPa) |
| Elongation (in 2"/50.8 mm) | 40% |
| Hardness (Rockwell) | 92 HRBW max |
*Tempered properties available upon request
About Type 301 Stainless Steel
Type 301 stainless steel is an austenitic alloy that achieves high strength and ductility through cold working. Similar to type 201 steel, 301 is non-magnetic in the annealed state but becomes increasingly magnetic with cold working.
This steel features higher carbon and lower nickel content, which supports excellent drawing and forming characteristics while slightly compromising corrosion resistance compared to Type 304. A secondary annealing process can restore corrosion resistance at weld or laser cut edges.
Applications
Type 301 stainless steel is widely used in:
- Subway cars and aircraft structural parts
- Trailer bodies and automotive trim
- Automobile wheel covers
- Drainage products and conveyor belts
- Storm door frames
