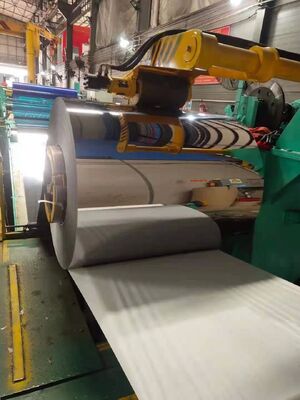

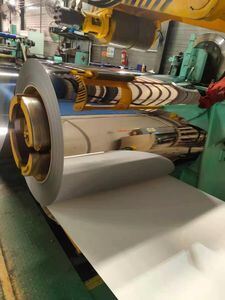

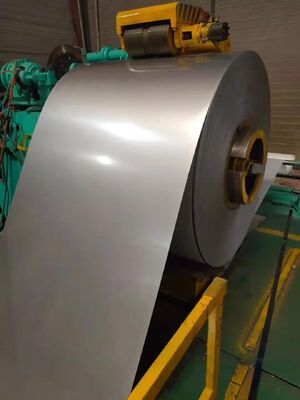

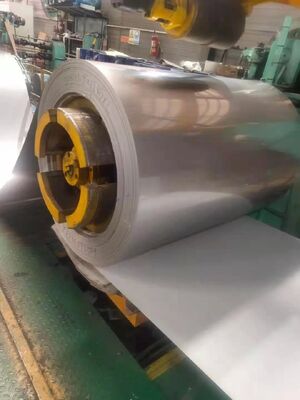

Cold Rolled 436L Stainless Steel Coil with Polished Surface and 0.3-4mm Thickness for Industrial Applications
Product Details
| Model Number | 436L | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Polished |
| Thickness Range | 0.3-4mm | Carbon Content | ≤ 0.12 |
| Manganese Content | ≤1.00 | Silicon Content | ≤1.00 |
| Chromium Content | 16.0~18.0 | Molybdenum Content | 0.75~1.25 |
| Tensile Strength | 531 MPa Min | Yield Strength | 365 MPa Min |
| Elongation | 22% Min | Hardness | HRB 89 Max |
| Production Capacity | 50000kgs | ||
| Highlight | Cold Rolled Stainless Steel Coil,Polished Surface SS Strip,0.3-4mm Thickness 436L Stainless Steel |
||
Product Description
SUS436L Stainless Steel Strip Coil
436 stainless steel is an enhanced modification of 434 grade, specifically engineered to minimize "wrinkling" during demanding stretch forming operations. While 430 grade is commonly used for automotive interior trim panels, 434 and 436 stainless steel grades are selected when superior corrosion resistance is required.
436L Stainless Steel Specifications
Standard: AISI, ASTM
Model Number: 436
UNS Number: S43600
Chemical Composition
Carbon (C): ≤ 0.12%
Manganese (Mn): ≤ 1.00%
Silicon (Si): ≤ 1.00%
Chromium (Cr): 16.0-18.0%
Nickel (Ni): -
Phosphorus (P): ≤ 0.04%
Sulfur (S): ≤ 0.03%
Molybdenum (Mo): 0.75-1.25%
Niobium (Nb): (5C-0.80)
Mechanical Properties at Room Temperature (Annealed)
Ultimate Tensile Strength: 77 KSI min (531 MPa min)
Yield Strength (0.2% Offset): 53 KSI min (365 MPa min)
Elongation: 22% min
Hardness: HRB 89 max
Available Stainless Steel Products
Product Forms
Coil, Strip, Sheet, Plate, Tube/Pipe
Available Grades
201, 301, 304, 304L, 309S, 310S, 316L, 317L, 321, 409L, 410, 410S, 430, 439, 444, 904L, 2205, 2507, etc.
Surface Finishes
NO.1, 2B, 2D, BA, NO.4, NO.8, 8K, mirror, hair line, sand blast, brush, etching, checkered, embossed, etc.
Dimensions
Thickness: 0.2 - 200 mm
Width: 4 - 2000 mm
Length: 500 - 12000 mm / coil
Stainless Steel Grade Comparison
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | Hardness |
|---|---|---|---|---|---|---|---|---|---|
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.03 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100,HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.0/20.0 | - | HB≤187,HRB≤90,HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187,HRB≤90,HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187,HRB≤90,HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.03 | ≤0.06 | 11.5/13.5 | - | HB≤183,HRB≤88,HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.0/18.0 | - | HB≤183,HRB≤88,HV≤200 |
Product Applications
Our stainless steel products are widely used in automotive components, industrial equipment, construction materials, and various manufacturing applications requiring corrosion resistance and durability.
