409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength

  • 409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength
  • 409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength
  • 409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength
  • 409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength
  • 409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength
  • 409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength
  • 409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength
Certification AISI, ASTM
Minimum Order Quantity 50 kg
Price US $1.25-2.35 / kg
Product Details
Model NO. 409L Shape Flat
Technique Cold Rolled Surface Treatment Bright
Thickness Range 0.2mm - 8.0mm Width Range 600mm - 2000mm
Max Coil Weight 25MT Coil ID 508mm,610mm
Finish 2B,2D Tensile Strength > 380 Mpa
Yield Strength >205 Mpa Elongation > 20%
Hardness < HRB88 Bending Angle 180 Degree
Production Capacity 50000kgs
Highlight

Corrosion Resistant 409L Stainless Steel Coil

,

Automotive Exhaust 409L Stainless Steel Coil

,

High Tensile Strength Cold Rolled Stainless Steel Strip
Leave a Message
Product Description
409L Stainless Steel Coil Strip - Cold Rolled SUH409L Stainless Steel Coils
409L stainless steel coil strip cold rolled SUH409L stainless steel coils are premium ferritic stainless steel products designed for demanding industrial applications, particularly in automotive exhaust systems.
Product Specifications
Parameter Specification
Thickness 0.2mm - 8.0mm
Width 600mm - 2000mm (narrower products available in strip products)
Max Coil Weight 25MT
Coil ID 508mm, 610mm
Finish 2B, 2D
409 Stainless Steel Grades
International Equivalent Grades
1.4512, S40930, 0Cr11Ti
Chemical Composition
C: ≤0.08
Si: ≤1.0
Mn: ≤1.0
S: ≤0.03
P: ≤0.045
Cr: 10.5~11.7
Ni: 0.5 Max
Ti: 6xC - 0.75
Mechanical Properties
Tensile Strength: > 380 MPa
Yield Strength: > 205 MPa
Elongation: > 20%
Hardness: < HRB88
Bending Angle: 180°
409L Stainless Steel Grades
International Equivalent Grades
SUH409L, S40903, 00Cr11Ti, 022Cr11Ti
Chemical Composition
C: ≤0.03
Si: ≤1.0
Mn: ≤1.0
S: ≤0.03
P: ≤0.045
Cr: 10.5~11.7
Ni: 0.5 Max
Ti: 6xC - 0.75
Mechanical Properties
Tensile Strength: > 380 MPa
Yield Strength: > 205 MPa
Elongation: > 20%
Hardness: < HRB88
Bending Angle: 180°
Application & Description
The 409L/S40903 stainless steel is primarily used for manufacturing automotive exhaust gas treatment devices due to its excellent corrosion resistance and thermal stability.
Crystalline Characteristics
  • The solid and liquid two-phase region of 409L steel is very small, less than 30°C
  • There is almost no γ phase at high temperature, resulting in fine equiaxed crystal formation during crystallization
  • Unique crystallization behavior prevents columnar crystal formation, producing uniform equiaxed crystal structures
  • Minimal phase transitions from high to low temperature prevent grain coarsening and maintain structural integrity
Available Stainless Steel Products
Product Type Available Grades
Coil, Strip, Sheet, Plate, Tube/Pipe 201, 301, 304, 304L, 309S, 310S, 316L, 317L, 321, 409L, 410, 410S, 430, 439, 444, 904L, 2205, 2507, etc.
Surface Finishes
Finish Surface Feature Manufacturing Method Application
NO.1 Silver white matt Hot rolled to specified thickness, then annealed and descaled Does not require surface gloss
NO.2D Silver white Heat treatment and pickling after cold rolling General materials and deep drawing applications
NO.2B Gloss stronger than NO.2D After NO.2D treatment, final pass lightly cold rolled by polishing rollers General materials
BA Bright as mirror Bright annealed surface processing with high reflectivity Building materials, kitchen utensils
NO.3 Rough grinding 100~200# grinding belt Building materials, kitchen utensils
NO.4 Intermediate grinding 150~180# abrasive belt Building materials, kitchen utensils
NO.240 Fine grinding 240# grinding belt Kitchenware
NO.320 Very fine grinding 320# grinding belt Kitchenware
NO.400 Gloss close to BA 400# polishing wheel General timber, construction, kitchen utensils
HL Hairline grinding 150~240# abrasive material Buildings, construction materials
NO.7 Close to mirror polishing 600# rotary polishing wheel Art and decoration
NO.8 Mirror grinding Polishing wheel mirror grinding Reflector, decoration
Product Images

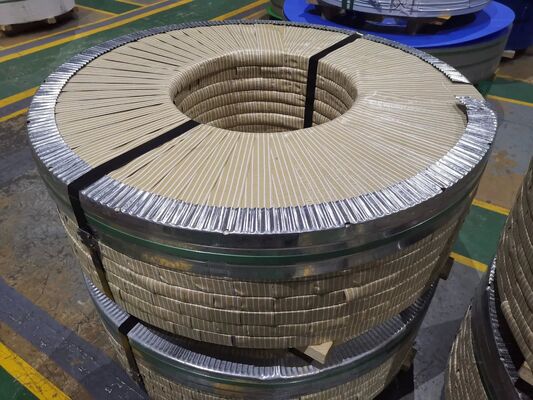

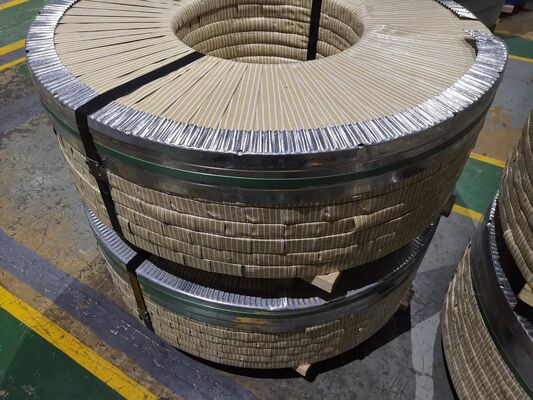

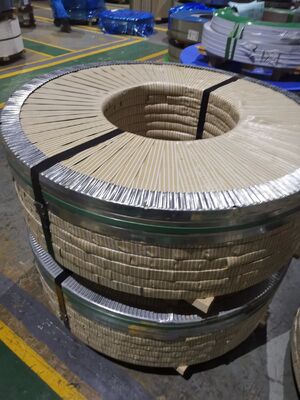

409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength 0 409L Stainless Steel Coil Cold Rolled Corrosion Resistant Strip for Automotive Exhaust with High Tensile Strength 1
