Hot Rolled 201 Stainless Steel Channel Bar - Metal U Channel Customized for Industrial Use
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Specification | 30*30-100*100 |
| Grade | 201 304 310S 316L 321 2205 | Standard | ASTM GB DIN |
| Angle Bar Size | 30*30*3 - 200*200*10mm * 6m | Channel Bar Size | 50*30*3 - 200*100*10mm * 6m |
| Thickness Range | 3mm - 10mm | Length | 6m |
| Weight Per Meter | 0.894kg - 35.8kg | Material | Stainless Steel |
| Packing | Waterproof Paper Or Wooden Pallets | Processing Service | Cutting |
| Max Thickness | 150mm | ||
| Highlight | Hot Rolled Stainless Steel Channel Bar,201 Stainless Steel U Channel,Customized Metal U Channel |
||
Product Description
Hot Rolled 201 Stainless Steel Channel Bar - Customized Metal U Channel
Premium hot rolled stainless steel channel bars available in customized specifications to meet your specific project requirements.
Product Specifications
Technical Details
| Product Name | Stainless Steel Angle Bar / Channel Bar |
|---|---|
| Available Grades | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standards | ASTM, GB, DIN |
| Angle Bar Size Range | 30×30×3 - 200×200×10mm × 6m length |
| Channel Bar Size Range | 50×30×3 - 200×100×10mm × 6m length |
| Services | Custom Cutting |
| Packing | Waterproof paper wrapping or wooden pallets |
| Brand | TSINGSHAN |
Standard Sizes & Weights
Stainless Steel Angle Bar Specifications
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar Specifications
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
Strategic Partnerships
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, South Korea, and other regions.
Material Range & Processing Capabilities
- Materials: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and more
- Specialized series: High-temperature resistant, duplex stainless steel, super stainless steel
- Processing equipment: Plasma cutting machines, coil material opening equipment, laser cutting machines
- Surface treatments: 8K mirror finishing, grinding wire drawing, film and titanium plating
- Special services: Thick plate cutting (up to 150mm), custom shapes, casting and forging parts
Our materials are widely used across multiple industries including machinery, chemical processing, petroleum, boilers, heat exchangers, food machinery, beverage machinery, and medical equipment.

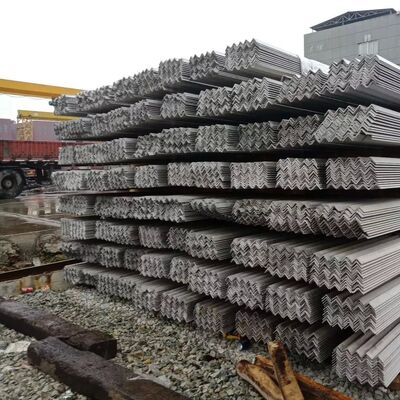

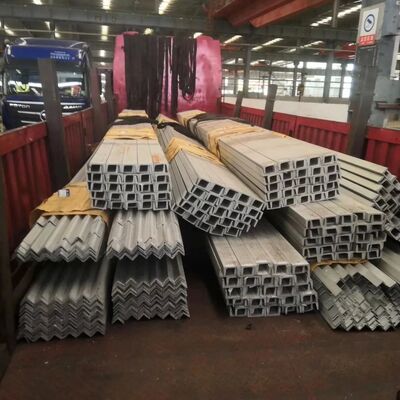

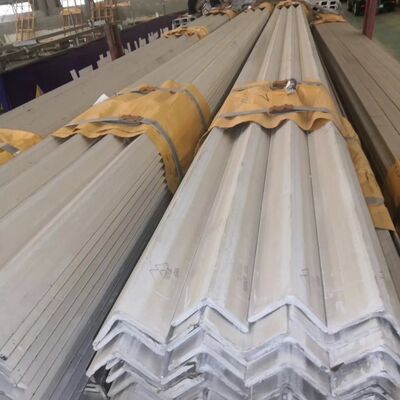

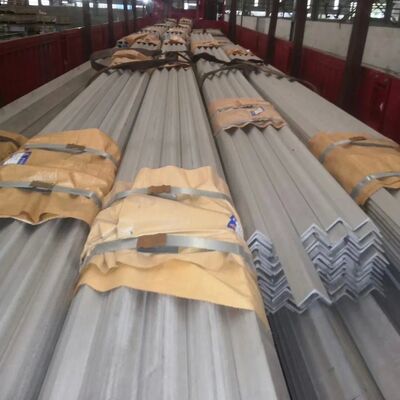

Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for constructing frame structures across various industries:
- High-voltage power transmission towers
- Steel structure bridge main beam frames
- Tower crane columns and booms on construction sites
- Workshop columns and beams
- Air-conditioning and solar-powered shelf supports
- Building structures and engineering construction
- Ship beams and industrial furnaces
Our stainless steel angle bars and channel bars find applications across diverse sectors including construction, marine, industrial manufacturing, and renewable energy.
Contact Information
For inquiries about our stainless steel channel bars, angle bars, or custom fabrication services, please contact our sales team for detailed specifications and pricing.
