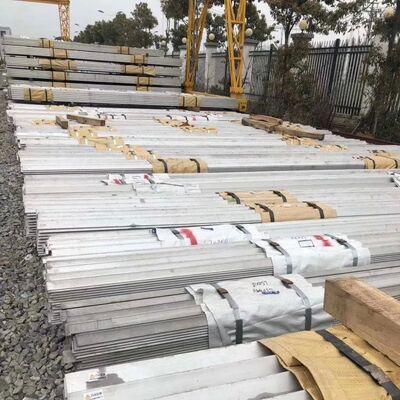

Grade 316L Hot Rolled Bright Surface Stainless Steel Angle Bar and U Channel Bar
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Angle Bar Size | 30*30*3 - 200*200*10mm |
| Channel Bar Size | 50*30*3 - 200*100*10mm | Length | 6m |
| Angle Bar Thickness | 3-10mm | Channel Bar Thickness | 3-12mm |
| Angle Bar Weight | 0.894-15.0 Kg/m | Channel Bar Weight | 1.79-35.8 Kg/m |
| Grade | 316L / 1.4404 / S31603 | Material | Stainless Steel |
| Standard | ASTM GB DIN | Processing Service | Cutting |
| Packing | Waterproof Paper Or Wooden Pallets | ||
| Highlight | Grade 316L Stainless Steel Angle Bar,Hot Rolled U Channel Bar,Bright Surface Stainless Steel Channel Bar |
||
Product Description
3# - 20# Grade 316L / 1.4404 / S31603 Stainless Angle Bar
High-quality stainless steel angle and channel bars manufactured to international standards for industrial and construction applications.
Product Specifications
- Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Grades Available: 201, 304, 310S, 316L, 321, 2205, etc.
- Standards: ASTM, GB, DIN
- Angle Bar Size Range: 30×30×3mm - 200×200×10mm × 6m length
- Channel Bar Size Range: 50×30×3mm - 200×100×10mm × 6m length
- Services: Custom cutting available
- Packing: Waterproof paper wrapping or wooden pallets
- Brand: TSINGSHAN
Stainless Steel Angle Bar - Standard Sizes & Weights
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
* Weights shown in kg per meter
Stainless Steel Channel Bar - Standard Sizes & Weights
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
* Weights shown in kg per meter
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
Strategic Partnerships: We maintain long-term cooperative relationships with leading steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea.
Material Range: Our products include 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and other high-temperature resistant stainless steel series, duplex stainless steel series, and super stainless steel series.
Processing Capabilities: We operate plasma cutting machines, coil material opening equipment, laser cutting machines, 8K mirror finishing, grinding wire drawing, film and titanium plating equipment. Services include material opening, strip cutting, plate cutting, oil mill wire drawing, complete coil oil film wire drawing, 8K mirror finishing, and titanium processing.
Specialized Services: Thick plate zero cutting, circular cutting, square cutting, shaped cutting, casting parts, forging parts with thickness up to 150MM. Custom materials and specifications can be ordered directly from steel mills according to customer requirements.
Industry Applications: Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment and other industries.
Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for constructing frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel bridge construction
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
These structural components are widely used in building construction and engineering projects such as house beams, ship beams, industrial furnaces, and various industrial applications across multiple sectors.
