6m Length ASTM A276 304 316L Grade Stainless Steel Angle Bar and U Channel Bar
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Specification | 30*30-100*100 |
| Grade | 201 304 310S 316L 321 2205 | Standard | ASTM GB DIN |
| Angle Bar Size | 30*30*3 - 200*200*10mm | Channel Bar Size | 50*30*3 - 200*100*10mm |
| Length | 6m | Weight Per Meter | 0.894 - 15.0 Kg |
| Thickness Range | 3 - 12mm | Angle Bar Weight | 0.894 - 15.0 Kg/m |
| Channel Bar Weight | 1.79 - 35.8 Kg/m | Material | Stainless Steel |
| Transport Package | Wooden Box | ||
| Highlight | 6m Length Stainless Steel Angle Bar,ASTM A276 Stainless Steel Channel Bar,304 316L Grade U Channel Bar |
||
Product Description
6m Length ASTM A276 Stainless Steel Angle & Channel Bars
High-quality stainless steel angle and channel bars manufactured to ASTM standards, available in grades 201, 304, 310S, 316L, 321, 2205 and more.
Product Specifications
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Angle Bar Size | 30×30×3 - 200×200×10mm × 6m length |
| Channel Bar Size | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
Standard Size and Weight per Meter - Stainless Steel Angle Bar
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Standard Size and Weight per Meter - Stainless Steel Channel Bar
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, South Korea, and other regions.
Available Materials
- 310S, 309S, 316L, 321, 304L, TP304, 347H
- 17-4PH, 317L, 2507, 2205-904L
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
Our manufacturing capabilities include plasma cutting machines, coil material opening equipment, laser cutting machines, 8K mirror finishing, grinding wire drawing, film and titanium plating equipment. We offer comprehensive processing services including material opening, strip cutting, plate cutting, oil mill wire drawing, full coil oil film wire drawing, 8K mirror finishing, and titanium coating.
Specialized services include thick plate zero cutting, circular cutting, square cutting, shaped cutting, casting parts, forging parts with thickness up to 150MM. We can customize all types of special materials and specifications according to customer requirements.
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment and other industries.

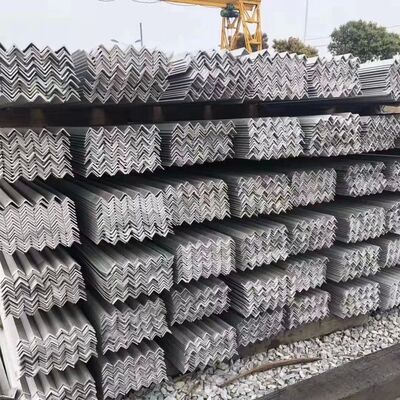

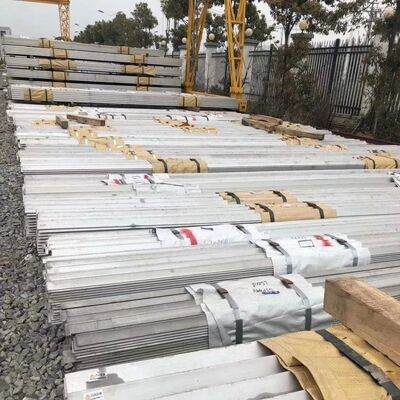

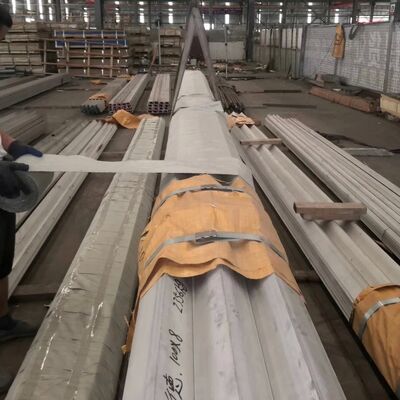

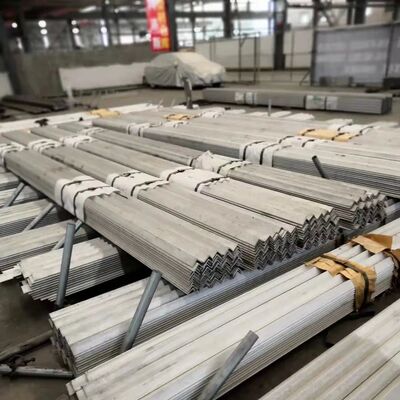

Product Photos
Product Applications
Stainless steel angle bars and channel bars are primarily used for constructing frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel bridge construction
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
Widely used in building structures and engineering construction applications such as house beams, ship beams, industrial furnaces, and various structural frameworks across multiple industries.
