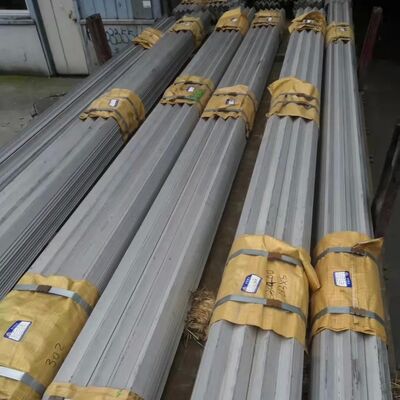

Hot Rolled Bright Surface Stainless Steel Angle Bar and Channel Bar in 30*30-100*100mm Sizes
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Angle Bar Size | 30*30*3 - 200*200*10mm * 6m Length |
| Channel Bar Size | 50*30*3 - 200*100*10mm * 6m Length | Angle Bar Thickness | 3-10mm |
| Channel Bar Thickness | 3-12mm | Angle Bar Weight | 0.894-15.0 Kg/m |
| Channel Bar Weight | 1.79-35.8 Kg/m | Grade | 201 304 310S 316L 321 2205 |
| Standard | ASTM GB DIN | Length | 6m |
| Material | Stainless Steel | Angle Bar Dimensions | 20×20 - 100×100mm |
| Channel Bar Dimensions | 40×20 - 200×100mm | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,Bright Surface Stainless Steel Channel Bar,30*30-100*100mm U Channel Bar |
||
Product Description
Stainless Steel Angle Bar & Channel Bar
High-quality 201, 304, 316, 2520 stainless steel angle bars and channel bars manufactured to international standards for industrial and construction applications.
Product Specifications
Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grades Available: 201, 304, 310S, 316L, 321, 2205, and others
Standards: ASTM, GB, DIN
Angle Bar Sizes: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Sizes: 50×30×3 - 200×100×10mm × 6m length
Services: Custom cutting available
Packing: Waterproof paper wrapping or wooden pallets
Brand: TSINGSHAN
Stainless Steel Angle Bar Specifications
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
*Weight shown in kg per meter
Stainless Steel Channel Bar Specifications
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
*Weight shown in kg per meter
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
Manufacturing Partnerships
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, South Korea, and other regions.
Material Range
Our product portfolio includes 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and other materials, covering high-temperature resistant stainless steel series, duplex stainless steel series, super stainless steel series, and specialized materials.
Processing Capabilities
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror finishing
- Grinding and wire drawing
- Film and titanium plating equipment
- Material opening, strip cutting, plate cutting
- Oil mill wire drawing and full coil processing
Specialized Services: Thick plate cutting (up to 150mm), round cutting, square cutting, shaped cutting, casting parts, forging parts. Custom orders available according to customer specifications and requirements.
Industry Applications: Machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various industrial sectors.
Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures in various industrial and construction applications:
- High-voltage power transmission towers
- Frame structures for steel bridge main beams
- Tower crane columns and booms on construction sites
- Workshop columns and beams
- Air-conditioning and solar-powered shelf supports
- Building structures and engineering construction
- House beams and ship beams
- Industrial furnace construction
Our stainless steel angle bars and channel bars are applied across diverse industries and construction projects worldwide.
Contact Information
For inquiries about our stainless steel angle bars and channel bars, please contact our sales team for pricing, specifications, and custom order requirements.
