316L Stainless Steel U Channel Bar Hot Rolled with Bright Surface Inox Steel Channel Bar
Product Details
| Model NO. | 201 304 316L 310S 2205 | Shape | U Channel |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | 30*30-100*100 | Grade | 201 304 310S 316L 321 2205 |
| Standard | ASTM GB DIN | Angle Bar Size | 30*30*3 - 200*200*10mm * 6m Length |
| Channel Bar Size | 50*30*3 - 200*100*10mm * 6m Length | Angle Bar Thickness | 3-10mm |
| Channel Bar Thickness | 3-12mm | Angle Bar Weight | 0.894-15.0 Kg/m |
| Channel Bar Weight | 1.79-35.8 Kg/m | Length | 6m |
| Material | 316L Stainless Steel | ||
| Highlight | 316L Stainless Steel U Channel Bar,Hot Rolled Inox Steel Channel Bar,Bright Surface Stainless Steel Channel Bar |
||
Product Description

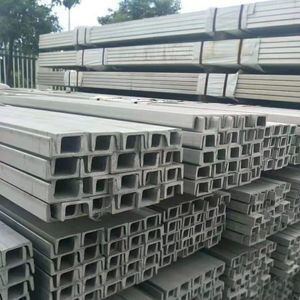

316L Stainless Steel U Channel Bar
High-quality DIN 1.4404 stainless steel channel bars manufactured to exacting standards for industrial and construction applications.
Product Specifications
- Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Available Grades: 201, 304, 310S, 316L, 321, 2205, and others
- Standards: ASTM, GB, DIN
- Angle Bar Sizes: 30×30×3mm to 200×200×10mm × 6m length
- Channel Bar Sizes: 50×30×3mm to 200×100×10mm × 6m length
- Services: Custom cutting available
- Packaging: Waterproof paper wrapping or wooden pallets
- Brand: TSINGSHAN
Stainless Steel Angle Bar Dimensions & Weights
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Weights shown in kg per meter
Stainless Steel Channel Bar Dimensions & Weights
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
Weights shown in kg per meter
Company Overview
We are a comprehensive stainless steel enterprise specializing in wholesale distribution, material processing, storage, and logistics. Located in Wuxi, the stainless steel trading hub, we have invested over 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term partnerships with leading steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and source imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea.
Material Range & Processing Capabilities
- Material Grades: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205, 904L
- Specialty Materials: High-temperature resistant series, duplex stainless steel, super stainless steel
- Processing Equipment: Plasma cutting, coil material opening, laser cutting, 8K mirror finishing, grinding, wire drawing, film and titanium plating
- Special Services: Thick plate cutting (up to 150mm), custom shapes, casting parts, forging parts
Our materials serve diverse industries including machinery, chemical processing, petroleum, boilers, heat exchangers, food and beverage machinery, and medical equipment.
Product Gallery
Applications
Stainless steel angle bars and channel bars are essential structural components used in frame construction for high-voltage power transmission towers, steel structure bridge frameworks, construction site tower crane components, industrial workshop columns and beams, and support structures for air conditioning and solar power installations.
These versatile structural elements are widely employed in building construction and engineering projects including house beams, ship beams, industrial furnaces, and various industrial applications across multiple sectors.
