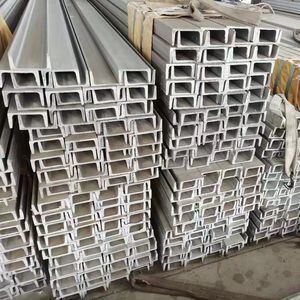

Hot Rolled 304 Stainless Steel Channel Bar with Bright Surface U Channel for Structural Applications
Product Details
| Model NO. | 201 304 316L 310S 2205 | Shape | U Channel |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | 30*30-100*100 | Grade | 201 304 310S 316L 321 2205 |
| Standard | ASTM GB DIN | Angle Bar Size | 30*30*3 - 200*200*10mm * 6m Length |
| Channel Bar Size | 50*30*3 - 200*100*10mm * 6m Length | Thickness Range | 3-12mm |
| Weight Per Meter | 0.894-35.8kg | Length | 6m |
| Material | Stainless Steel | Processing Service | Cutting |
| Packing | Waterproof Paper Or Wooden Pallets | ||
| Highlight | Hot Rolled Stainless Steel Channel Bar,304 Stainless Steel U Channel,Bright Surface Stainless Steel Channels |
||
Product Description
Hot Rolled Stainless Steel Channel Bars & Angle Bars
Premium quality 201, 304, and 316L stainless steel channel bars and angle bars, available in various sizes and specifications for industrial applications.
Product Specifications
- Product Types: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Available Grades: 201, 304, 310S, 316L, 321, 2205, and others
- Standards: ASTM, GB, DIN
- Angle Bar Sizes: 30×30×3mm to 200×200×10mm × 6m length
- Channel Bar Sizes: 50×30×3mm to 200×100×10mm × 6m length
- Services: Custom cutting available
- Packaging: Waterproof paper wrapping or wooden pallets
- Brand: TSINGSHAN
Stainless Steel Angle Bar Specifications
Weight per meter (kg/m) for various sizes and thicknesses:
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar Specifications
Weight per meter (kg/m) for various sizes and thicknesses:
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
Company Overview
We are a comprehensive stainless steel enterprise specializing in wholesale distribution, material processing, storage, and logistics. Located in Wuxi - the stainless steel trading hub - with total investment of 100 million RMB and annual sales exceeding 300 million RMB.
Strategic Partnerships: Long-term cooperation with leading steel mills including Taiyuan, East, Zhang Pu, Hongwei, Zhejiang Qingshan, and distribution of imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea.
Material Range & Processing Capabilities
- Material Grades: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205, 904L
- Specialty Series: High-temperature resistant, duplex stainless steel, super stainless steel
- Processing Equipment: Plasma cutting, coil material opening, laser cutting, 8K mirror finishing, grinding, wire drawing, film coating, titanium plating
- Specialized Services: Thick plate cutting (up to 150mm), round/square/shaped cutting, casting parts, forging parts, custom specifications
Industry Applications: Machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various industrial sectors.
Product Applications
Stainless steel angle bars and channel bars are essential structural components used in:
- Frame structures for high-voltage power transmission towers
- Main beam frameworks in steel structure bridges
- Columns and booms for construction site tower cranes
- Workshop columns and beams
- Air-conditioning and solar-powered shelf supports
- Building structures and engineering construction
- House beams, ship beams, industrial furnaces
Our stainless steel angle bars and channel bars serve diverse applications across multiple industries and construction projects.
