304 316L 201 Stainless Steel Channel Bar with Hot Rolled Technique and Bright Surface Treatment

Minimum Order Quantity	30 kg
Price	US $2.54-4.52 / kg

Product Details

Shape	U Channel	Technique	Hot Rolled
Surface Treatment	Bright	Specification	3030-100100
Grade	201 304 310S 316L 321 2205	Angle Bar Size	30303 - 20020010mm * 6m Length
Channel Bar Size	50303 - 20010010mm * 6m Length	Angle Bar Thickness	3-10mm
Channel Bar Thickness	3-12mm	Weight Per Meter	0.894-15.0 Kg (Angle Bar)
Channel Bar Weight	1.79-35.8 Kg	Length	6m
Material	Stainless Steel	Processing Service	Cutting
Packing	Waterproof Paper Or Wooden Pallets
Highlight	304 316L 201 Stainless Steel Channel Bar , Hot Rolled Technique Stainless Steel Channel Bar , Bright Surface Treatment Stainless Steel Channel Bar

Leave a Message

Product Description

Premium Stainless Steel Channel Bars

Manufacturer offering high-quality 304, 316L, and 201 stainless steel channel bars at competitive prices for industrial applications.

Product Specifications

Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grades Available: 201, 304, 310S, 316L, 321, 2205, etc.
Standards: ASTM, GB, DIN
Angle Bar Sizes: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Sizes: 50×30×3 - 200×100×10mm × 6m length
Services: Custom cutting available
Packing: Waterproof paper wrapping or wooden pallets
Brand: TSINGSHAN

Stainless Steel Angle Bar Specifications

Size (A×B mm)	3mm	4mm	5mm	6mm	7mm	8mm	9mm	10mm
20×20	0.894	1.13	1.38
25×25	1.13	1.45	1.77	2.06
30×30	1.37	1.77	2.17	2.53
35×35	1.61	2.09	2.57	3.01
40×40	1.85	2.41	2.97	3.49
45×45	2.12	2.76	3.40	4.00
50×50	2.36	3.07	3.79	4.46	5.13	5.76	6.42	7.06
60×60			4.58	5.42	6.24	7.03
63×63			5.03	5.95	6.84	7.71	8.60	9.48
70×70			5.42	6.42	7.39	8.34	9.31	10.3
75×75			5.82	6.89	7.95	8.97	10.0	11.1
80×80				7.37	8.50	9.61	10.7	11.8
90×90				8.33	9.65	11.90	12.2	13.4
100×100				9.28	10.8	12.20	13.6	15.0

All weights shown in kg/m

Stainless Steel Channel Bar Specifications

Size (H×B mm)	3mm	4mm	5mm	6mm	7mm	8mm	9mm	10mm	12mm
40×20	1.79
50×25	2.27
60×30	2.74	3.56	4.37	5.12
70×35	3.23	4.21	5.17	6.08
80×40	3.71	4.84	5.96	7.03
90×45	4.25	5.55	6.83	8.05
100×50	4.73	6.18	7.62	8.98	10.3	11.7	13.0	41.2
120×60			9.20	10.9	12.6	14.2
130×65			10.1	11.9	13.8	15.5	17.3	19.1
140×70				12.9	14.9	16.8	18.8	20.7
150×75				13.9	16.0	18.1	20.2	22.2	26.3
160×80				14.8	17.1	19.3	21.6	23.8	28.1
180×90				16.7	19.4	22.0	24.5	27.0	32.0
200×100				18.6	21.6	24.5	27.4	30.2	35.8

All weights shown in kg/m

About Our Company

Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.

We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, Korea, and other regions.

Material Range: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L, high-temperature resistant stainless steel series, duplex stainless steel series, super stainless steel series, and other specialized materials.

Processing Capabilities: Plasma cutting machines, coil material opening equipment, laser cutting machines, 8K mirror finishing, grinding wire drawing, film and titanium plating equipment. We offer material opening, strip cutting, plate cutting, oil mill wire drawing, full coil oil film wire drawing, 8K mirror finishing, titanium plating, and other processing services.

Specialized Services: Thick plate zero cutting, circular cutting, square cutting, shaped cutting, casting parts, forging parts with thickness up to 150MM. Custom materials and specifications can be ordered directly from steel mills according to customer requirements.

Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.

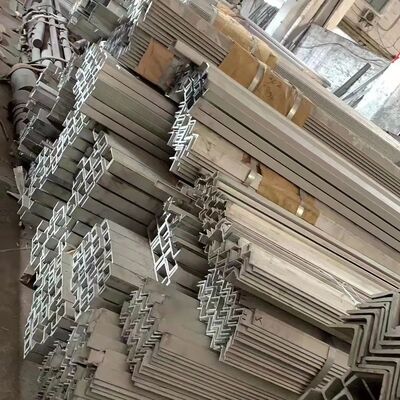

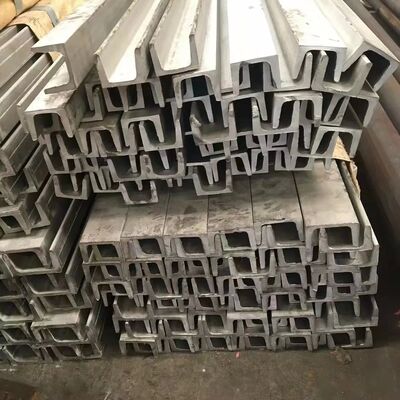

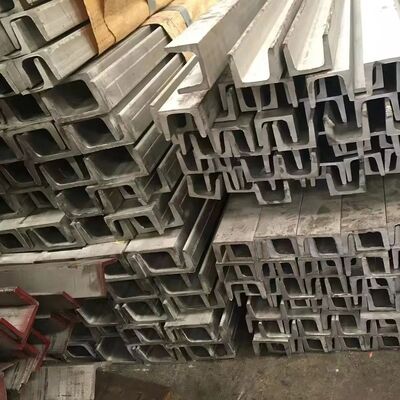

Product Gallery

Applications

Stainless steel angle bars and channel bars are primarily used for frame structures including:

High-voltage power transmission towers
Frame structures on both sides of main beams in steel bridge construction
Columns and booms of tower cranes on construction sites
Columns and beams in workshop construction
Air conditioning and solar power mounting brackets under windows

Widely used in building structures and engineering construction applications such as house beams, ship beams, industrial furnaces, and various structural frameworks across multiple industries.

Contact Information

For pricing, specifications, and custom orders, please contact our sales team for professional service and competitive quotations.
