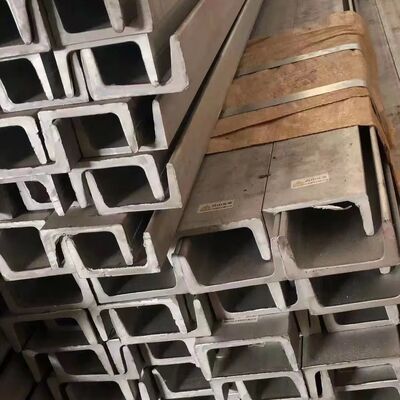

Hot Rolled Stainless Steel Channel Bar with Bright Surface Treatment in 30*30-100*100mm Sizes
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Specification | 30*30-100*100 |
| Grade | 201 304 310S 316L 321 2205 | Angle Bar Size | 30*30*3 - 200*200*10mm * 6m |
| Channel Bar Size | 50*30*3 - 200*100*10mm * 6m | Angle Bar Thickness | 3-10mm |
| Channel Bar Thickness | 3-12mm | Angle Bar Weight | 0.894-15.0 Kg/m |
| Channel Bar Weight | 1.79-35.8 Kg/m | Standard | ASTM GB DIN |
| Length | 6m | Material | Stainless Steel |
| Processing Service | Cutting | ||
| Highlight | Hot Rolled Stainless Steel Channel Bar,Bright Surface Stainless Steel U Channel,30*30-100*100mm Stainless Steel C-Channel |
||
Product Description
Stainless Steel Angle Bar & Channel Bar Specifications
Product Specifications
| Products Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Size of Angle Bar | 30×30×3 - 200×200×10mm × 6m length |
| Size of Channel Bar | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
Stainless Steel Angle Bar Dimensions & Weight
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
* Weight in kg per meter
Stainless Steel Channel Bar Dimensions & Weight
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
* Weight in kg per meter
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in wholesale, material processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
Manufacturing Partnerships
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, Korea, and other regions.
Material Range
- 310S, 309S, 316L, 321, 304L, TP304, 347H
- 17-4PH, 317L, 2507, 2205-904L and other materials
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
Processing Capabilities
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror, grinding wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting
- Oil mill wire drawing, complete coil oil film wire drawing
Specialized Services
Thick plate zero cutting, circular cutting, square cutting, shaped cutting, casting parts, forging parts with thickness up to 150MM. Customized materials and specifications available according to customer requirements.
Industry Applications
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.

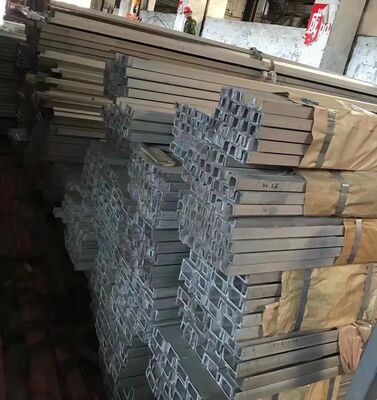

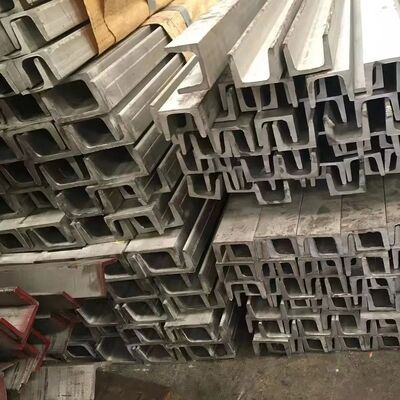

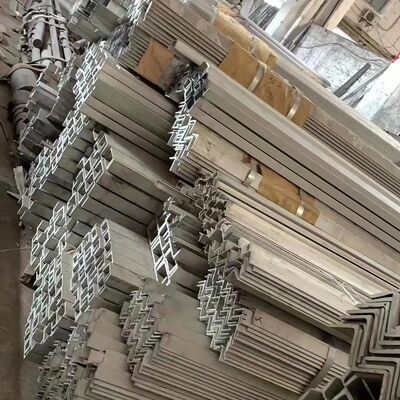

Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel bridge construction
- Column and boom of tower cranes on construction sites
- Column and beam structures in workshop construction
- Air-conditioning and solar-powered shelf installations under windows
Widely applied in building structures and engineering projects such as house beams, ship beams, industrial furnaces, and various construction applications across multiple industries.
Contact Information
For inquiries about our stainless steel angle bars and channel bars, please contact our sales team for pricing, specifications, and custom order requirements.
