Hot Rolled 316L Stainless Steel U Channel Bar with Bright Polished Surface
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Specification | 30*30-100*100 |
| Grade | 201 304 310S 316L 321 2205 | Angle Bar Size | 30*30*3 - 200*200*10mm |
| Channel Bar Size | 50*30*3 - 200*100*10mm | Length | 6m |
| Angle Bar Thickness | 3-10mm | Channel Bar Thickness | 3-12mm |
| Angle Bar Weight | 0.894-15.0 Kg/m | Channel Bar Weight | 1.79-35.8 Kg/m |
| Material | Stainless Steel | Standard | ASTM GB DIN |
| Packing | Waterproof Paper Or Wooden Pallets | ||
| Highlight | Hot Rolled Stainless Steel U Channel Bar,316L Stainless Steel Channel Bar,Bright Polished U Channel Bar |
||
Product Description
Hot Rolled Stainless Steel U Channel Bar 316L
Premium stainless steel channel bars available in NO.1/Bright Polished finish, manufactured to exacting standards for industrial and construction applications.
Product Specifications
- Product Type: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Available Grades: 201, 304, 310S, 316L, 321, 2205, and others
- Standards: ASTM, GB, DIN
- Angle Bar Size Range: 30×30×3mm to 200×200×10mm × 6m length
- Channel Bar Size Range: 50×30×3mm to 200×100×10mm × 6m length
- Services: Custom cutting available
- Packaging: Waterproof paper wrapping or wooden pallets
- Brand: TSINGSHAN
Standard Size and Weight - Stainless Steel Angle Bar
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Standard Size and Weight - Stainless Steel Channel Bar
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in wholesale distribution, material processing, storage, and logistics. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable partnerships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, and Zhejiang Qingshan. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, South Korea, and other regions.
Material Range: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L, high-temperature resistant stainless steel series, duplex stainless steel series, and super stainless steel series.
Processing Capabilities: Plasma cutting machines, coil material opening equipment, laser cutting machines, 8K mirror finishing, grinding wire drawing, film and titanium plating equipment. We offer material opening, strip cutting, plate cutting, oil mill wire drawing, full coil oil film wire drawing, 8K mirror finishing, and titanium processing.
Specialized Services: Thick plate zero cutting, circular cutting, square cutting, shaped cutting, casting parts, forging parts with thickness up to 150MM. Custom materials and specifications can be ordered directly from steel mills according to customer requirements.

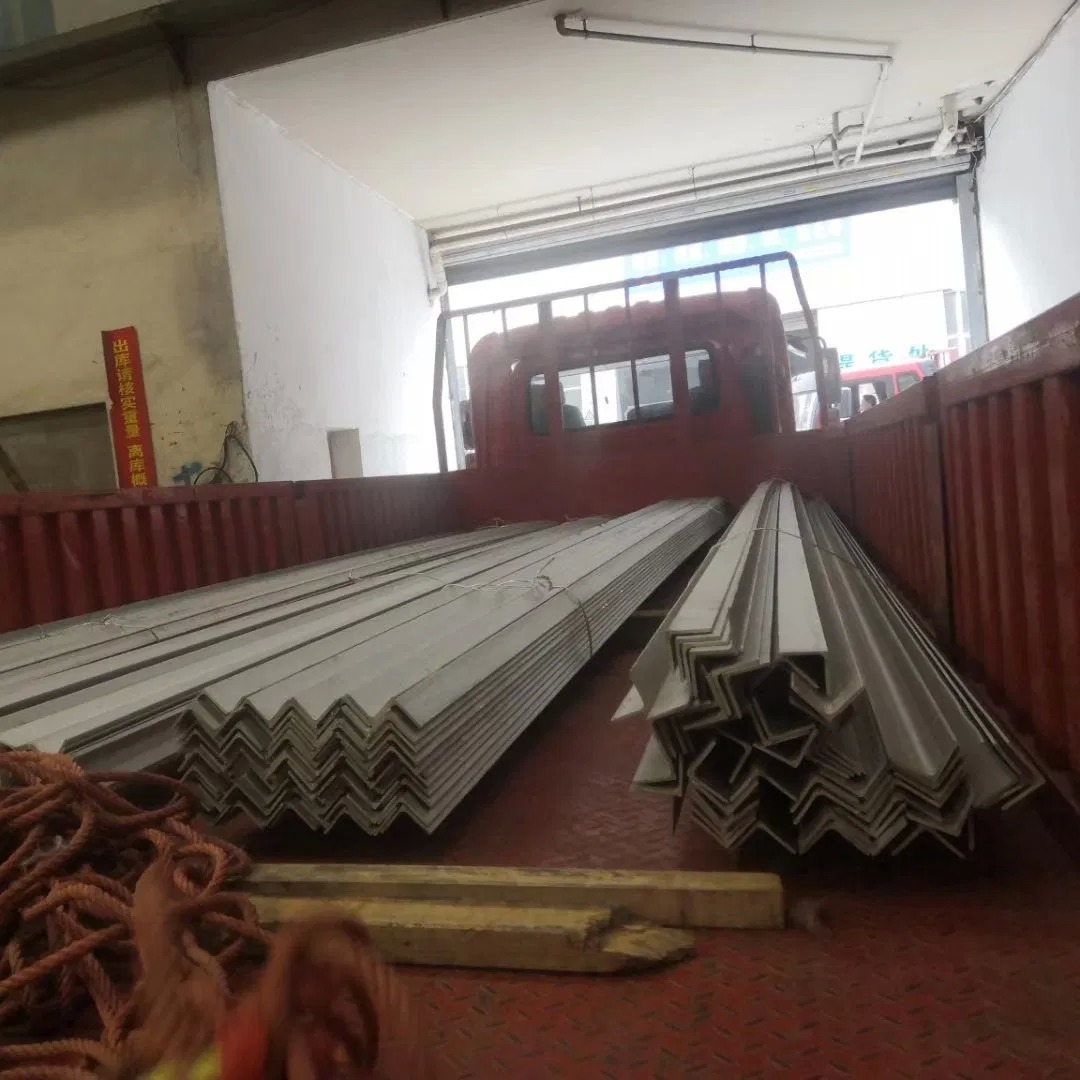

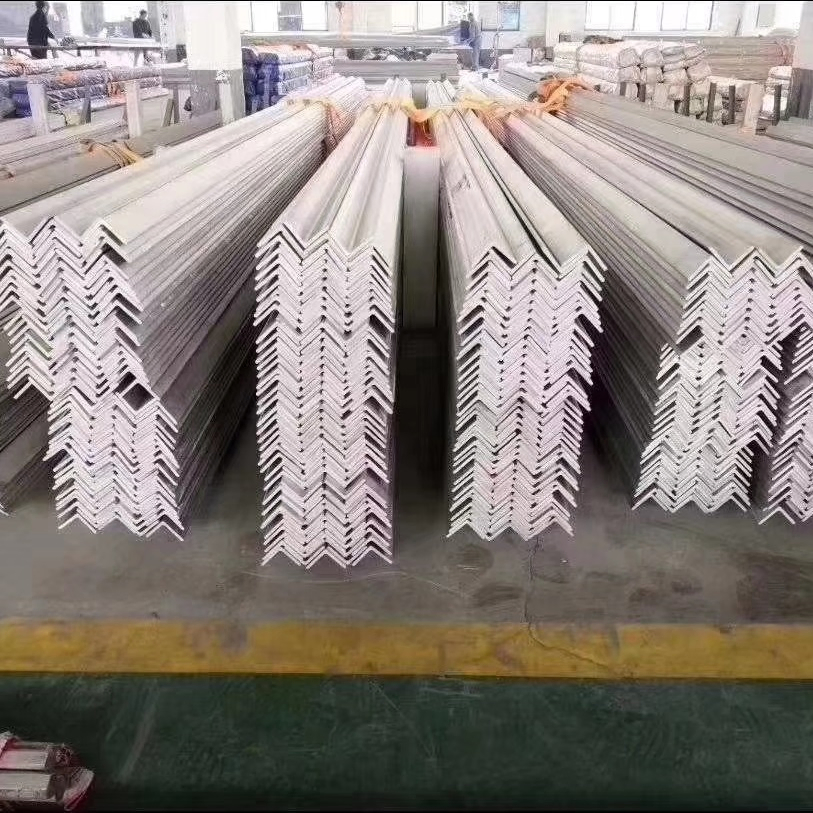

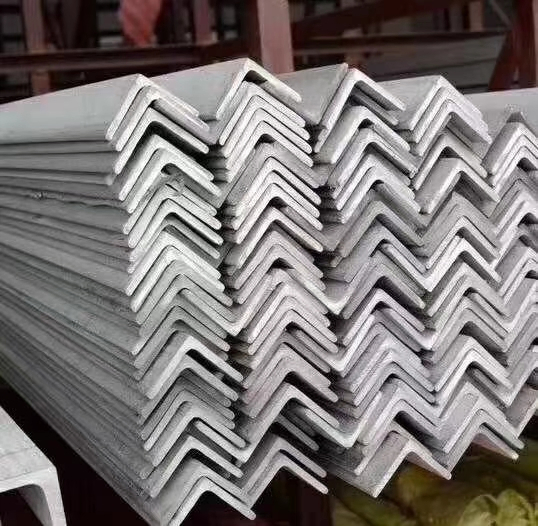

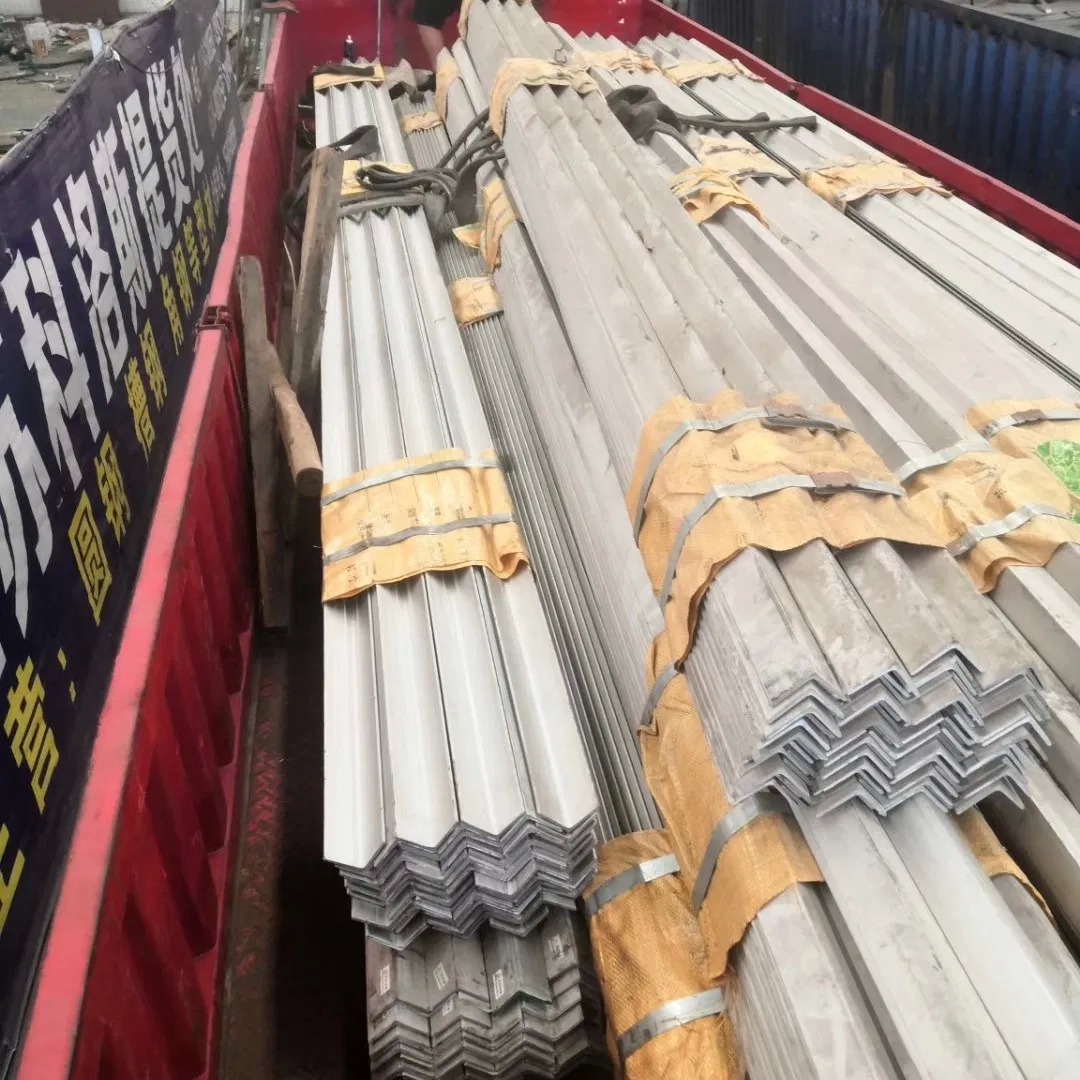

Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of steel bridge main beams
- Column and boom structures for tower cranes on construction sites
- Column and beam frameworks for workshop construction
- Air-conditioning and solar panel mounting brackets under windows
Widely applied in building structures and engineering projects including house beams, ship beams, industrial furnaces, and various industrial applications across multiple sectors.
Contact Information
Our stainless steel angle bars and channel bars are applied across various industries including machinery, chemical processing, petroleum, boiler manufacturing, heat exchangers, food machinery, beverage machinery, and medical equipment.
