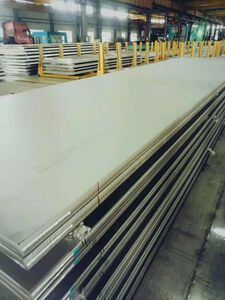

Incoloy 800HT UNS N08811 Nickel Alloy Steel Plate Hot Rolled with Polished Surface for High Temperature Resistance
Product Details
| Model Number | Incoloy 800HT | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 500000kgs |
| Grade | Ni-Cr-Fe Alloy | Nickel Content | 30.0-35.0% |
| Chromium Content | 19.0-23.0% | Iron Content | 39.5 Min% |
| Carbon Content | 0.06-0.10% | Aluminum Content | 0.25-0.60% |
| Titanium Content | 0.25-0.60% | Aluminum + Titanium | 0.85-1.2% |
| Ultimate Strength | ≥ 550 MPa | ||
| Highlight | High Temperature Resistant Nickel Alloy Steel Plate,Hot Rolled Incoloy 800HT Plate,Polished Surface UNS N08811 Plate |
||
Product Description
Incoloy 800HT UNS N08811 Nickel Alloy Steel Plate
Incoloy 800HT UNS N08811 Nickel Alloy Steel Plate offers exceptional high temperature resistance, making it ideal for demanding industrial applications.
Product Specifications
| Place of Origin | Shanghai, China (Mainland) |
| Type | Nickel plate |
| Application | Nitrate condenser, Steam heating pipes, etc. |
| Grade | Ni-Cr-Fe alloy |
| Ni (Min) | 38 |
| Powder Or Not | Not Powder |
| Ultimate Strength (≥ MPa) | 550 |
| Elongation (≥ %) | 35 |
| Model Number | Incoloy 800HT |
Packaging & Delivery
| Packaging Details | Wooden Cases |
| Delivery Detail | Delivery time is according to the actual order |
Incoloy 800, 800H, and 800HT are nickel-iron-chromium alloys with excellent strength and superior resistance to oxidation and carburization in high-temperature environments. These nickel steel alloys are similar, with alloy 800H featuring higher carbon content and alloy 800HT containing up to 1.20 percent aluminum and titanium. Incoloy 800HT ensures optimum high temperature properties through controlled titanium and aluminum levels (.85-1.20%). The nickel content provides exceptional resistance to chloride stress-corrosion cracking and sigma phase embrittlement.
Incoloy 800HT maintains excellent cold forming characteristics and can be welded using standard stainless steel techniques. It exhibits superior creep and stress rupture properties in solution annealed condition, making it suitable for temperatures above 1100°F where creep and rupture resistance is critical.
Available Forms
- Sheet
- Plate
- Bar
- Pipe & Tube (welded & seamless)
- Fittings (flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
- Wire
Chemical Composition - Alloy 800 (UNS N08800)
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .10 max | .15-.60 | .15-.60 | .30-1.20 |
Chemical Composition - Alloy 800H (UNS N08810)
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .05-.10 | .15-.60 | .15-.60 | .30-1.20 |
Chemical Composition - Alloy 800HT (UNS N08811)
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .06-.10 | .25-.60 | .25-.60 | 0.85-1.2 |
Key Characteristics
- High temperature strength
- High creep rupture strength
- Resistant to oxidation and carburization in high temperature environments
- Good corrosion resistance in many acidic environments
- Good resistance to many sulfur-containing atmospheres
Note: The chemical composition of Incoloy 800HT will always be within the limits of Incoloy 800H. However, the limits of Incoloy 800H may or may not be within the limits of Incoloy 800HT.
Typical Applications
- Ethylene furnace quench boilers
- Hydrocarbon cracking
- Valves, fittings and other components exposed to corrosive attack from 1100-1800°F
- Industrial furnaces
- Heat-treating equipment
- Chemical and petrochemical processing
- Super-heater and re-heaters in power plants
- Pressure vessels
- Heat exchangers
Alloys 800H/HT are widely used in applications involving exposure to corrosive environments and high temperatures, including heat treating equipment, chemical and petrochemical processing, nuclear power plants, and the paper pulp industry.
