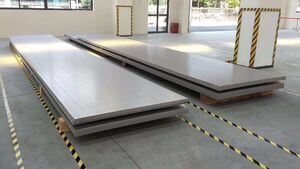

Inconel 600 Nickel-Chromium Alloy Plate 3mm Thickness Hot Rolled with Polished Surface
Product Details
| Thickness | 3mm | Width | 1200mm |
|---|---|---|---|
| Length | 3000mm | Material Grade | Inconel 600 |
| UNS Number | N06600 | Nickel Content | 72.0-76.0% |
| Chromium Content | 14.0-17.0% | Iron Content | 6.0-10.0% |
| Carbon Content | ≤0.15% | Manganese Content | ≤1.0% |
| Silicon Content | ≤0.5% | Sulfur Content | ≤0.015% |
| Ultimate Tensile Strength | 760 MPa | Yield Strength | 585 MPa |
| Elongation | 10% | ||
| Highlight | 3mm Thickness Inconel 600 Plate,Hot Rolled Nickel-Chromium Alloy Plate,Polished Surface UNS N06600 Plate |
||
Product Description
Inconel 600 Plate 3mm X 1200 X 3000 DIN 2.4816
Product Overview
Inconel 600 (UNS N06600) is a nickel-chromium alloy designed for use from cryogenic to elevated temperatures up to 2000°F (1093°C). This high-performance material offers excellent oxidation resistance, good mechanical properties, and superior corrosion resistance in various demanding environments.
Chemical Composition
Ni 72.0%, Cr 15.5%, Fe 8.0%, Mn 1.0%, C 0.15%, Cu 0.5%, Si 0.5%, S 0.015%
Key Characteristics
- Resistant to wide range of corrosive media including organic acids
- Virtually immune to chloride ion stress corrosion cracking
- Excellent resistance to alkaline solutions and sulfur compounds
- Good oxidation resistance at elevated temperatures
- Non-magnetic with high strength and good workability
- Readily weldable with cold forming characteristics
Typical Applications
- Thermocouple sheaths and furnace components
- Chemical and food processing equipment
- Heat exchanger tubing and reactor vessels
- Nuclear reactor components
- Process equipment for chlorinated and fluorinated hydrocarbons
- Vinyl chloride monomer production equipment
Chemical Requirements
| Element | Min (%) | Max (%) |
|---|---|---|
| Ni | 72.0 | - |
| C | - | 0.15 |
| Mn | - | 1.0 |
| Cr | 14.0 | 17.0 |
| S | - | 0.015 |
| Si | - | 0.5 |
| Fe | 6.0 | 10.0 |
Mechanical Properties
| Condition | Ultimate Tensile (min) | Yield Strength (0.2% OS, min) | Elongation (min, %) |
|---|---|---|---|
| Cold Worked | 110 KSi / 760 MPa | 85 KSi / 585 MPa | 10 |
| Hot Worked | 90 KSi / 620 MPa | 40 KSi / 275 MPa | 25 |
Specifications
| Form | Standard |
|---|---|
| Metal Type | UNS N06600 |
| Bar | ASTM B166, AMS 5665, DIN 17752 |
| Sheet/Plate | ASTM B168, AMS 5540, DIN 17750 |
| Tube/Pipe | ASTM B167 |
| Forging | ASTM B564, DIN 17754 |
| DIN | 2.4816 |
Machining Data
| Operation | Parameters |
|---|---|
| Single Point Turning | Roughing: 0.15" depth, 0.015"/rev feed, 175 SFM Finishing: 0.025" depth, 0.007"/rev feed, 200 SFM |
| Drilling | 1/4" Dia: 0.004"/rev feed, 60 SFM 1/2" Dia: 0.007"/rev feed, 60 SFM 3/4" Dia: 0.010"/rev feed, 60 SFM |
| Reaming | Feed same as drilling, 100 SFM |
| Side and Slot Milling | Roughing: 0.25" depth, 0.007"/tooth feed, 125 SFM Finishing: 0.050" depth, 0.009"/tooth feed, 140 SFM |
Note: Carbide tools recommended (C-2 for roughing, drilling, reaming; C-3 for finishing)
Product Packaging
