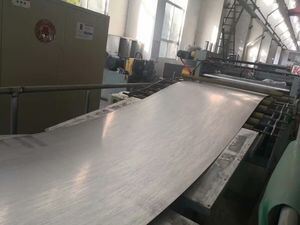

3mm Nonmagnetic Hot Rolled Inconel 600 Nickel-Chromium Alloy Plate for High Temperature Applications
Product Details
| Thickness | 3mm | Material | Inconel 600 |
|---|---|---|---|
| Standard | DIN 2.4816 | Shape | Flat |
| Technique | Hot Rolled | Surface Treatment | Polished |
| Dimensions | 8mm X 4 Feet X 8 Feet | Nickel Content | 72.0-76.0% |
| Chromium Content | 14.0-17.0% | Iron Content | 6.0-10.0% |
| Carbon Content | Max 0.15% | Manganese Content | Max 1.0% |
| Silicon Content | Max 0.5% | Sulfur Content | Max 0.015% |
| Ultimate Tensile Strength | 760 MPa | ||
| Highlight | Nonmagnetic Inconel 600 Plate,3mm Nickel-Chromium Alloy Plate,Hot Rolled High Performance Alloy Plate |
||
Product Description
Inconel 600 (UNS N06600 / DIN 2.4816) Plate
3mm Nonmagnetic DIN 2.4816 Inconel 600 Plate 8mm X 4 Feet X 8 Feet
Product Overview
Inconel 600 is a nickel-chromium alloy designed for use from cryogenic to elevated temperatures up to 2000°F (1093°C). This high-performance alloy offers excellent oxidation resistance, good performance in carburizing and chloride-containing environments, and is virtually immune to chloride-ion stress corrosion cracking.
Chemical Composition
Ni 72.0-76.0%, Cr 14.0-17.0%, Fe 6.0-10.0%, Mn 1.0%, C 0.15%, Cu 0.5%, Si 0.5%, S 0.015%
Key Characteristics
- Resistant to wide range of corrosive media including organic acids
- Virtually immune to chlorine ion stress corrosion cracking
- Excellent resistance to alkaline solutions and chloride environments
- Good resistance to sulfur compounds and oxidizing environments
- Non-magnetic with excellent mechanical properties
- High strength combined with good workability
- Readily weldable with good cold forming characteristics
Typical Applications
- Thermocouple sheaths
- Ethylene dichloride (EDC) cracking tubes
- Reactor vessels and heat exchanger tubing in vinyl chloride production
- Process equipment for chlorinated and fluorinated hydrocarbons
- Furnace retort seals, fans, and fixtures
- Roller hearths and radiant tubes in carbon nitriding processes
- Production of caustic alkalis
- Nuclear reactor components
Mechanical Properties
| Condition | Ultimate Tensile (Min) | Yield Strength (0.2% OS) Min | Elongation Min % |
|---|---|---|---|
| Cold Worked | 110 KSi / 760 MPa | 85 KSi / 585 MPa | 10 |
| Hot Worked | 90 KSi / 620 MPa | 40 KSi / 275 MPa | 25 |
Specifications
| Form | Standard |
|---|---|
| Metal Type | UNS N06600 |
| Bar | ASTM B166, AMS 5665, Din 17752 |
| Sheet/Plate | ASTM B168, AMS 5540, Din 17750 |
| Tube/Pipe | ASTM B167 |
| Forging | ASTM B564, Din 17754 |
| DIN | 2.4816 |
Machining Data
| Operation | Parameters |
|---|---|
| Single Point Turning | Roughing: 0.15" depth, 0.015"/rev feed, 175 SFM Finishing: 0.025" depth, 0.007"/rev feed, 200 SFM |
| Drilling | 1/4" Dia: 0.004"/rev feed, 60 SFM 1/2" Dia: 0.007"/rev feed, 60 SFM 3/4" Dia: 0.010"/rev feed, 60 SFM |
| Reaming | Feed same as drilling, 100 SFM |
| Side and Slot Milling | Roughing: 0.25" depth, 0.007"/tooth feed, 125 SFM Finishing: 0.050" depth, 0.009"/tooth feed, 140 SFM |
Note: Carbide tools recommended (C-2 for roughing, drilling, reaming; C-3 for finishing)
Available Forms
High Performance Alloys stocks and produces Inconel 600 in bar, wire cuts, sheet, plate, strip, tube, and pipe forms.
