EN 1.4541 AISI321 5mm Stainless Steel Plate Hot Rolled No.1 Finish
Product Details
| Model Number | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness | 0.6 To 80 Mm |
| Width | 1219mm, 1500mm, 1800mm, 2000mm | Length | 2m, 2.44m, 3m, 6m |
| Finish | SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror | Carbon Content | 0.08% |
| Chromium Content | 17.0-19.0% | Nickel Content | 9.0-12.0% |
| Yield Strength | 30 Ksi | Tensile Strength | 75 Ksi |
| Elongation | 40% | ||
| Highlight | EN 1.4541 Stainless Steel Plate,AISI321 Stainless Steel Plate,5mm Stainless Steel Sheet |
||
Product Description

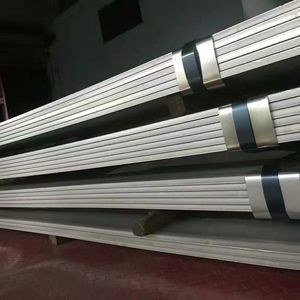

EN 1.4541 AISI321 No. 1 Hot Rolled 5mm Stainless Steel Plate
Product Overview
Grade 321 stainless steel is a titanium-stabilized austenitic stainless steel designed for service in the 1000-1600°F temperature range. This hot-rolled plate offers excellent resistance to intergranular corrosion and polythionic acid stress corrosion cracking.
Product Specifications
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
|---|---|
| Specification | ASTM A240 / ASME SA240 |
| Dimensions | Cold rolled: 4ft×8ft (1219×2438mm) Hot rolled: 5ft×20ft, 6ft×20ft (1500×6000mm, 1800×6000mm, 2000×6000mm) |
| Thickness | 0.6 to 80 mm |
| Width | 1219mm, 1500mm, 1800mm, 2000mm |
| Length | 2m, 2.44m, 3m, 6m or as required |
| Finish | Satin, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc. |
Available Forms & Services
Forms/Shapes: Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle)
Our Services: Laser Cutting, bending, welding, polishing
Alternative Designations
- SS 321
- SUS 321
- Inox 321
- DIN 1.4541
- UNS S32100
- AISI 321
- SAE 321 Sheet
Technical Properties
Chemical Composition (wt%)
| Element | 321 |
|---|---|
| Carbon | 0.08 |
| Chromium | 17.0-19.0 |
| Nickel | 9.0-12.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Nitrogen | 0.10 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Titanium | 5(C+N) min / 0.70 max |
Mechanical Properties
| Property | 321 |
|---|---|
| Yield Strength, min. (ksi) | 30 |
| Tensile Strength, min. (ksi) | 75 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 95 |
Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
Certifications & Standards
- ASTM A240, ASME SA240
- BS EN 10028-7, BS EN 10088-2, BS EN 10088-4
- EN 10088/2, EN 10088/4 with CE Marking
- NACE MR 0175/ISO 15156 Certification
