JIS G4305 SUS304 Stainless Steel Strips Thickness 0.1 - 3.0mm – Precision Slit Cutting Edge for Spring Applications

Product Overview

SUS304 stainless steel strips, manufactured in strict compliance with the JIS G4305:2021 standard, represent one of the most widely used austenitic stainless steel grades in precision engineering and industrial applications. With a thickness range of 0.1 mm to 3.0 mm, these cold-rolled strips are specially processed with precision slit cutting edges, making them ideal for high-performance components such as springs, connectors, terminals, and electronic parts.

SUS304 (also known internationally as AISI 304 or UNS S30400) offers an excellent balance of corrosion resistance, formability, weldability, and mechanical strength. Its composition—typically 18% chromium and 8% nickel—ensures superior performance in both ambient and mildly aggressive environments, including food processing, medical devices, automotive systems, and consumer electronics.

This product page provides comprehensive technical specifications, chemical composition, mechanical properties, and application guidance for engineers, procurement specialists, and manufacturers seeking reliable, high-tolerance stainless steel strip material.

Key Features & Advantages

• ✅ Compliance: Fully conforms to JIS G4305:2021 (Cold-Rolled Stainless Steel Plate, Sheet, and Strip)
• ✅ Precision Slitting: Edge tolerance ±0.01 mm; burr-free finish for automated assembly
• ✅ Thickness Range: 0.1 mm – 3.0 mm (customizable upon request)
• ✅ Width Options: 5 mm – 600 mm (standard); narrower widths available for micro-spring applications
• ✅ Surface Finish: 2B, BA (Bright Annealed), or custom finishes (e.g., hairline, matte)
• ✅ Excellent Spring Properties: High fatigue resistance and elastic recovery after repeated deflection
• ✅ Corrosion Resistance: Resists oxidation up to 800°C; suitable for humid, saline, and mildly acidic environments
• ✅ Non-Magnetic (Annealed State): Ideal for sensitive electronic and medical instruments

Technical Specifications

Chemical Composition (JIS G4303 / JIS G4311)

The chemical composition of SUS304 is tightly controlled to ensure consistent performance:

Note: All values comply with JIS G4303-1998 and JIS G4311-1991 standards.

Mechanical Properties (Typical Values – Annealed Condition)

For spring applications, strips are often supplied in 1/2 Hard (H) or Full Hard (EH/SH) tempers, offering higher yield strength (up to 1000 MPa) and improved resilience.

Why Choose Precision-Slit SUS304 Strips for Springs?

Springs require materials that can endure repeated stress cycles without permanent deformation. SUS304 stainless steel strips offer:

• High Elastic Limit: Maintains shape integrity under dynamic loading.
• Fatigue Resistance: Performs reliably in high-cycle applications (e.g., battery contacts, relay springs).
• Clean Edges: Precision slitting eliminates micro-cracks and burrs that could initiate fatigue failure.
• Corrosion Protection: Unlike carbon steel springs, SUS304 does not require plating or coating in most environments.
• Biocompatibility: Meets ISO 10993 standards for medical implant components (when properly finished).

Common spring types made from SUS304 strips include:

• Contact springs (electronics)
• Clip springs (automotive interiors)
• Torsion springs (small appliances)
• Flat spiral springs (watches, sensors)

Manufacturing & Quality Control

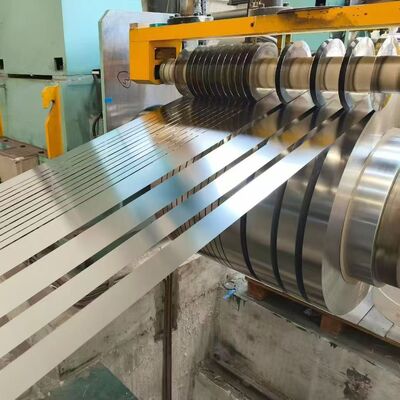

Our SUS304 strips are produced using advanced continuous cold rolling and annealing lines, followed by laser-guided precision slitting. Each coil undergoes rigorous quality checks:

• Dimensional Accuracy: Verified via laser micrometers and optical edge scanners.
• Surface Inspection: Automated vision systems detect scratches, pits, or roll marks.
• Material Certification: Mill Test Reports (MTRs) provided per EN 10204 3.1 or 3.2.
• Batch Traceability: Full heat number tracking from melt to final coil.

Optional value-added services:

• Custom Packaging: Plastic-wrapped coils on wooden pallets for export.
• Edge Conditioning: Rounded or chamfered edges for high-speed stamping.
• Lubricant-Free Surface: For cleanroom or medical-grade applications.

Applications

Ordering Information

To place an order or request a sample, please provide the following details:

• Grade: SUS304 (JIS G4305)
• Thickness: e.g., 0.25 mm ±0.005 mm
• Width: e.g., 12.5 mm ±0.05 mm
• Temper: Annealed / 1/2H / Spring Temper (specify if for spring use)
• Surface Finish: 2B / BA / Custom
• Coil ID: 200 mm, 300 mm, or 508 mm (20”)
• Weight per Coil: Typically 10–50 kg (adjustable)
• Packaging: VCI paper + plastic wrap + export crate

Minimum Order Quantity (MOQ): 100 kg
Lead Time: 7–15 days (depending on specification)

FAQs

Q: Is SUS304 the same as 304 stainless steel?
A: Yes. SUS304 is the Japanese designation (JIS standard), while 304 is the AISI/ASTM designation. Chemical and mechanical properties are nearly identical.

Q: Can SUS304 strips be used in marine environments?
A: SUS304 offers good resistance to atmospheric corrosion but may pit in prolonged seawater exposure. For harsh marine use, consider SUS316L.

Q: What’s the difference between 2B and BA finish?
A: 2B is a standard mill finish with moderate reflectivity. BA (Bright Annealed) is highly reflective, smooth, and ideal for decorative or optical applications.

Q: Do you provide RoHS/REACH compliance documentation?
A: Yes. All our SUS304 strips are compliant with RoHS, REACH, and conflict minerals regulations.
