Duplex 2205 / 1.4462 Stainless Sheet H Beam For Corrosion Resistance Structure
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 321 310S |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Stainless Steel Beam | Size | 100*100 - 400*400mm Or Custom As Request |
|---|---|---|---|
| Grade | 201 304 316L.etc | Length | 6m Or As Request |
| Finishing | Pickling | Other Products | Angle, Channel, Flat , Hexagonal |
| Standard | ASTM EN GB | Type | Welded |
| Highlight | 1.4462 Stainless Sheet H Beam,Corrosion Resistance Stainless Sheet H Beam,Duplex 2205 Stainless Sheet H Beam |
||
Product Description

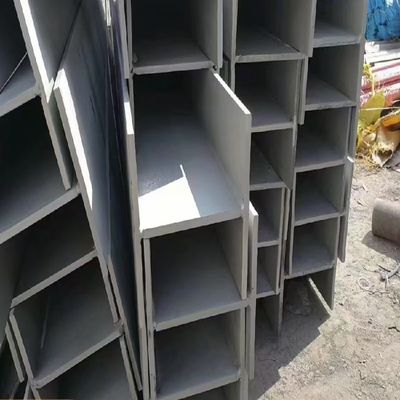

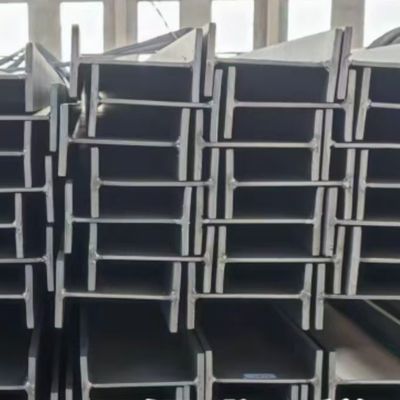

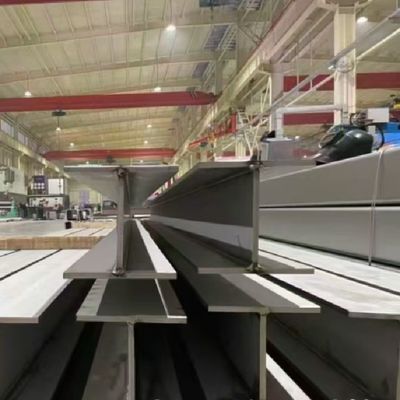

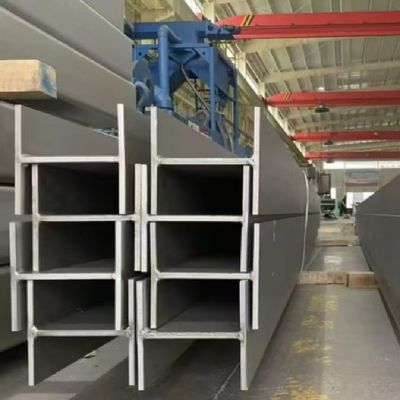

Duplex 2205 / 1.4462 Stainless Sheet H Beam for Corrosion Resistance Structure
Products Specification
| Product Name | Stainless steel H-beam |
| Material | stainless steel |
| Grade | 310S,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,301,302,201, 202,405,409,410,420,430,S32304,S31803,S32550,S32750,S31500,S31260,SS2377 ,SS2327,SS2376,etc |
| Standard | ASTM, AISI, JIS, DIN, GB, EN |
| size | Flange Thickness: 8mm-64mm,Flange width:50-400mm,Web thickness:8-45mm,Web Width:100mm~900mm |
| Length | 6-12m,or as required |
| Shape | H-beam |
| Surface | Black,peeled,polishing,bright,sand blast,hair line,etc |
| Applications | Mechanical&Manufacture,Steel Structure,Shipbuilding |
| Samples | Kindly Discuss with Sales Staff |
| Lead Time | Depends on Specifications, Quantity etc. |
| Package | Standard Seaworthy Package or as required |
2205 Duplex Stainless Steel H Beam
2205 duplex stainless steel H beam steel has high corrosion resistance. Because it contains Cr, Mo, Ni and other corrosion-resistant elements, it has good corrosion and oxidation resistance in some acidic or alkaline environments. In addition, its strength is higher than that of general austenitic stainless steel, and because 2205 stainless steel has a duplex structure, its toughness is better than that of 304 and 316 stainless steel, and it has higher resistance to crack growth and fatigue strength.
2205 duplex stainless steel H-shaped steel introduction
2205 Duplex stainless Steel H-shaped steel is an H-shaped steel made from 2205 duplex stainless steel, with both austenitic and ferrite structure, with excellent mechanical properties and corrosion resistance.
Main parameter
- Density: 7.8 g/cm³
- Melting point: about 1420-1460°C
- Tensile strength: ≥620 MPa
- Yield strength: ≥450 MPa
- Elongation: ≥25%
- Hardness: Approx. 290 HB
Chemical composition
- Carbon (C): ≤0.03%
- Silicon (Si): ≤1.00%
- Manganese (Mn): ≤2.00%
- Phosphorus (P): ≤0.030%
- Sulfur (S): ≤0.020%
- Chromium (Cr): 22.0-23.0%
- Nickel (Ni): 4.5-6.5%
- Molybdenum (Mo): 3.0-3.5%
- Nitrogen (N): 0.14-0.20%
Peculiarity
- High strength: High tensile and yield strength, suitable for high-load environments.
- Corrosion resistance: Excellent resistance to pitting corrosion, crevice corrosion and stress corrosion cracking.
- Good weldability: high strength and corrosion resistance after welding.
- High toughness: good toughness at low temperatures.
- Fatigue strength: High fatigue strength, suitable for cyclic load environment.
Apply
- Marine engineering: Used in seawater treatment equipment, offshore platforms, etc.
- Chemical equipment: suitable for reactors, storage tanks, pipelines, etc.
- Oil and natural gas: Used in oil well pipes, gas pipelines, etc.
- Building structure: Used for Bridges, high-rise buildings, etc.
- Environmental protection equipment: used for flue gas desulfurization equipment, sewage treatment equipment, etc.
2205 duplex stainless steel H-shaped steel with its high strength, corrosion resistance and good weldability, widely used in Marine engineering, chemical, oil and gas, construction and environmental protection and other fields.
