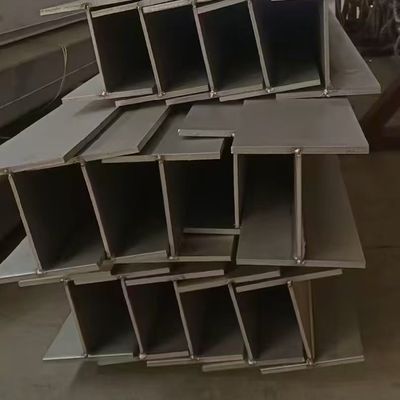

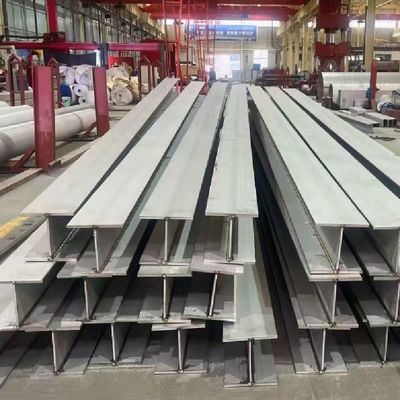

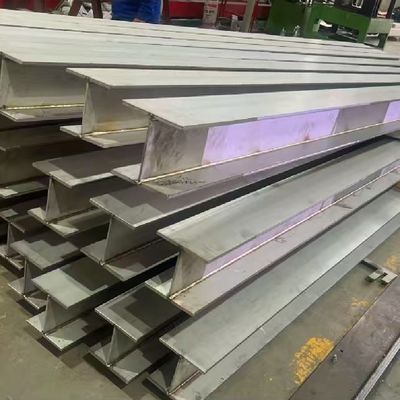

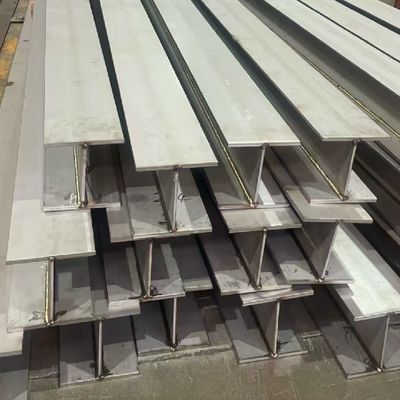

Welded Stainless Steel H Beam / SS Beams UNS S32100 321 1.4541 Heat Resistant Part
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 321 310S |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5Ton per week |
Product Details
| Products Name | Stainless Steel Beam | Size | 100*100 - 400*400mm Or Custom As Request |
|---|---|---|---|
| Grade | 201 304 316L.etc | Length | 6m Or As Request |
| Finishing | Pickling | Other Products | Angle, Channel, Flat , Hexagonal |
| Standard | ASTM EN GB | Type | Welded |
| Highlight | 1.4541 Stainless Steel H Beam,UNS S32100 Stainless Steel H Beam,Heat Resistant Stainless Steel H Beam |
||
Product Description
Welded Stainless Steel H Beam / SS Beams UNS S32100 , 321 , 1.4541 Heat Resistant Part
Products Specification
| Product Name | Stainless steel H-beam |
| Material | stainless steel |
| Grade | 310S,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,301,302,201, 202,405,409,410,420,430,S32304,S31803,S32550,S32750,S31500,S31260,SS2377 ,SS2327,SS2376,etc |
| Standard | ASTM, AISI, JIS, DIN, GB, EN |
| size | Flange Thickness: 8mm-64mm,Flange width:50-400mm,Web thickness:8-45mm,Web Width:100mm~900mm |
| Length | 6-12m,or as required |
| Shape | H-beam |
| Surface | Black,peeled,polishing,bright,sand blast,hair line,etc |
| Applications | Mechanical&Manufacture,Steel Structure,Shipbuilding |
| Samples | Kindly Discuss with Sales Staff |
| Lead Time | Depends on Specifications, Quantity etc. |
| Package | Standard Seaworthy Package or as required |
321 Stainless Steel Introduction
321 stainless steel is a titanium stabilized austenitic stainless steel, by adding titanium elements, effectively prevent chromium carbide precipitation, improve intergranular corrosion resistance, widely used in high temperature and corrosive environment.
argument
Chemical composition of 321 Stainless Steel:
- Carbon (C) : ≤0.08%
- Silicon (Si) : ≤1.00%
- Manganese (Mn) : ≤2.00%
- Phosphorus (P) : ≤0.045%
- Sulfur (S) : ≤0.030%
- Chromium (Cr) : 17.00-19.00%
- Nickel (Ni) : 9.00-12.00%
- Titanium (Ti) : ≥5×C%
Physical properties of 321 Stainless Steel
- Density: 7.93 g/cm³
- Melting point: 1398-1420℃
- Coefficient of thermal expansion: 16.6μm /m·℃ (20-100℃)
- Thermal conductivity: 16.3W /m·K (100℃)
- Resistivity: 0.72 μΩ·m (20℃)
Mechanical properties:
- Tensile strength: ≥520 MPa
- Yield strength: ≥205 MPa
- Elongation: ≥40%
- Hardness: ≤ 187HB
Peculiarity
- Intergranular corrosion resistance: The addition of titanium effectively prevents chromium carbide precipitation and improves intergranular corrosion resistance.
- High temperature strength: maintain good strength and oxidation resistance at high temperatures.
- Oxidation resistance: Excellent performance in high temperature oxidation environment.
- Machinability: good weldability and cold workability.
- Corrosion resistance: Good performance in a variety of corrosive media.
Apply
- High temperature environment:Heat exchanger,Boiler,heater
- Chemical Equipment:reactor,Storage tank,conduit
- Aerospace:Engine component,Exhaust system
- Food processing:Food processing equipment,Storage tank
- Other areas:Petrochemical equipment,Medical device,Automobile exhaust system
321 stainless steel because of its resistance to intergranular corrosion, high temperature strength and good processing properties, widely used in high temperature, corrosive environment and chemical industry, aerospace and other fields.
