321 Stainless Steel H Beam / I Beam 150*150mm 200*200mm 250*250mm 300*300mm

Place of Origin China
Brand Name DELTA
Certification ISO
Model Number 304 316L 321 310S
Minimum Order Quantity 1 Ton
Price 2400 - 3500 USD/Ton
Packaging Details standard packing for export
Delivery Time 5 - 12 days based on the quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 5Ton per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Name Stainless Steel Beam Size 100*100 - 400*400mm Or Custom As Request
Grade 201 304 316L.etc Length 6m Or As Request
Finishing Pickling Other Products Angle, Channel, Flat , Hexagonal
Standard ASTM EN GB Type Welded
Highlight

300*300mm Stainless Steel H Beam

,

200*200mm Stainless Steel H Beam

,

250*250mm Stainless Steel H Beam

Leave a Message
Product Description

321 Stainless Steel H Beam / I Beam150*150mm 200*200mm 250*250mm 300*300mm

Products Specification



Product Name Stainless steel H-beam
Material stainless steel
Grade 310S,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,301,302,201, 202,405,409,410,420,430,S32304,S31803,S32550,S32750,S31500,S31260,SS2377 ,SS2327,SS2376,etc
Standard ASTM, AISI, JIS, DIN, GB, EN
size Flange Thickness: 8mm-64mm,Flange width:50-400mm,Web thickness:8-45mm,Web Width:100mm~900mm
Length 6-12m,or as required
Shape H-beam
Surface Black,peeled,polishing,bright,sand blast,hair line,etc
Applications Mechanical&Manufacture,Steel Structure,Shipbuilding
Samples Kindly Discuss with Sales Staff
Lead Time Depends on Specifications, Quantity etc.
Package Standard Seaworthy Package or as required



Stainless Steel H-beam

The stainless steel used in our H-Beam is known for its resistance to corrosion and rust, making it ideal for outdoor or harsh environments. It also maintains its structural integrity even under extreme temperatures, ensuring consistent performance in all conditions.

Strength and Durability: The unique H-shape design of our beam provides exceptional strength and stability. The flanges and web of the beam distribute load evenly, ensuring maximum load-bearing capacity. The stainless steel material, coupled with this design, ensures that the beam can withstand heavy loads and repeated stress without showing signs of wear or failure.

Versatility: Our Stainless Steel H-Beam is suitable for a wide range of applications. It can be used in bridge construction, building façades, heavy-duty machinery, and even in shipbuilding. The beam’s dimensions and specifications can be customized to meet specific project requirements, adding to its versatility.

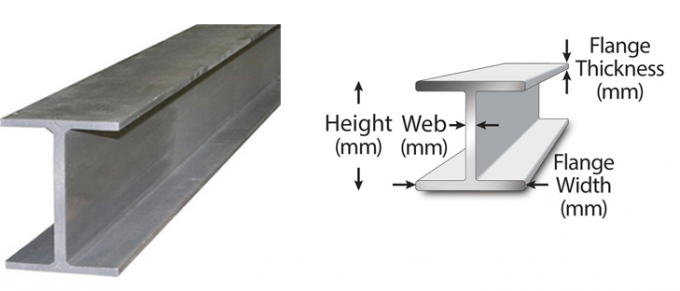

H-beam representation method

Height H× width B× web thickness T1 × wing thickness T2, for example, H-beam SS304 200×200×8×12 means wide flange H-beam with a height of 200mm and a width of 200mm and a thickness of 8mm and a thickness of 12mm. Its grade is SS304.Representation of hot – rolled H – beams.

Section steel is divided into wide flange H-beam (HW), narrow flange H-beam (HN) and H-beam pile (HU) three categories.Its representation method is: height H× width B× web thickness T1 × wing thickness T2, for example, H-beam SS304 200×200×8×12 is a wide flange H-beam with a height of 200mm, a width of 200mm, a thickness of 8mm, and a thickness of 12mm.

 Advantages of hot – rolled H – beam

H-beam steel is a new type of economic construction steel.

H-beam section shape is economical and reasonable, good mechanical properties, rolling section of the point extension is more uniform, small internal stress, compared with ordinary I-beam, has the advantages of large section modulus, light weight, save metal, can make the building structure reduce 30-40%;And because the inside and outside of the legs are parallel, and the leg ends are at right angles, the assembled components can save up to 25% of the welding and riveting work.It is often used in large buildings (such as workshops, high-rise buildings, etc.), as well as Bridges, ships, lifting and transportation machinery, equipment foundations, supports, foundation piles, etc.

H-section steel is a kind of economical section steel with more excellent section mechanical properties which is developed from the optimization of I-section steel, especially the section is the same as the English letter “H” so named.Its characteristics are as follows:

→ Wide flange, large lateral stiffness.Strong bending resistance.

→ The two surfaces of the flange are parallel to each other, making it easy to connect, process and install.

→ Compared with welding I-beam, the cost is low, high precision, small residual stress, no expensive welding materials and weld detection, saving about 30% of the production cost of steel structure.

→ Under the same section load.Hot-rolled H steel structures weigh 15%-20% less than traditional steel structures.

Compared with concrete structure, hot rolled H steel structure can increase the use area by 6%, and the structure weight is reduced by 20%-30%, reduce the internal force of structure design.

→ H beam can be processed into T beam, honeycomb beam can be combined to form a variety of cross section forms, Note: can provide a variety of materials, specifications of non-standard stainless steel bright rod!To meet the needs of engineering design and production.

H-beam steel is mainly used in engineering, plant equipment, mechanical equipment, Bridges, highways, civil houses, etc.Good mechanical and physical properties, firm, energy saving and environmental protection effect.H-beam steel is a kind of economical section steel, widely used in industry, construction, bridge, oil drilling platform and so on.

SS 304 H Beam STOCK SUPPLY APPLICATIONS

These stainless steel 304 H Beam are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

Stainless steel 304 H Beam for Chemical and petrochemical
Stainless Steel 304 H Beam used for Power generation
Stainless steel 304 H Beam for Renewable energy
304 Stainless Steel H Beam for Pulp and Paper
Stainless Steel 304 H Beam for Process piping
Seamless Stainless Steel 304H Beam used for Pharmaceutical
Stainless Steel 304 H Beam applications for Food and beverage
Stainless Steel 304 H Beam used for Oil and gas
Stainless Steel 304 H Beam applications in Mining
Stainless Steel 304 H Beam used for Water/waste
Stainless Steel 304 H Beam application for Marine Industry
Stainless Steel hot rolled 304 H Beam Channel application for Fertilizers.
