6m Length Stainless Steel H Beam SS Beam I Beam Grade 304 316L 310S 321
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 321 310S |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Stainless Steel Beam | Size | 100*100 - 400*400mm Or Custom As Request |
|---|---|---|---|
| Grade | 201 304 316L.etc | Length | 6m Or As Request |
| Finishing | Pickling | Other Products | Angle, Channel, Flat , Hexagonal |
| Standard | ASTM EN GB | Type | Welded |
| Highlight | 316L 310S Stainless Steel H Beam,6m Stainless Steel H Beam,Grade 304 SS Beam |
||
Product Description

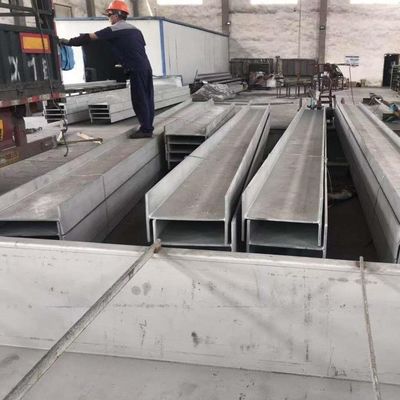

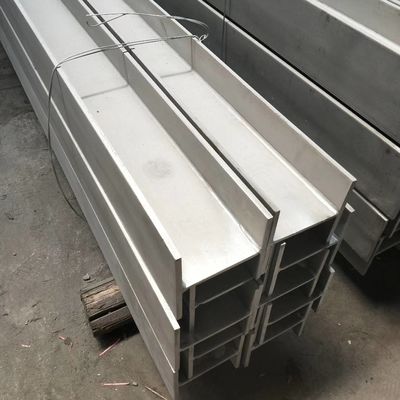

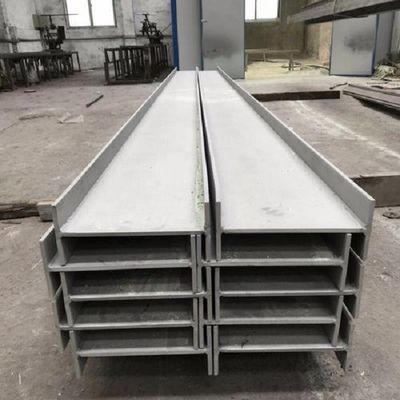

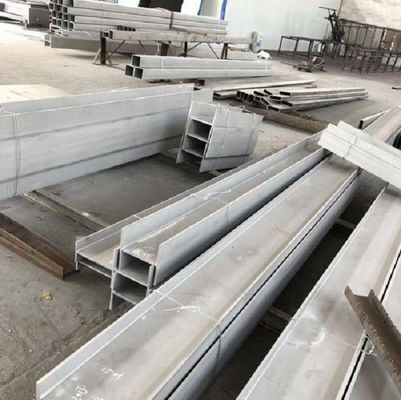

6m Length Stainless Steel H Beam SS Beam I Beam Grade 304 316L 310S 321
|
Products
|
stainless steel h beam
|
|
Grade
|
201 304 304L 316L 321 310S 2205 2507.etc
|
|
Length
|
6m,12m or as required
|
|
Web Thickness
|
5-45mm
|
|
Web Width
|
100-1000mm
|
|
Flange Thickness
|
8-70mm
|
|
Flange Width
|
100-500mm
|
|
Shape
|
H&I beam
|
|
Technique
|
Hot rolled / Welded
|
|
Standard
|
ASTM / AS / BS / GB / JIS
|
|
Size
|
100*50*5*7-900*300*16*28mm
|
|
Surface treatment
|
Galvanized / Black
|
|
Delivery time
|
In 10-30 days after receiving the deposit or L/C
|
|
Trade terms
|
FOB, CFR, CIF
|
Stainless Stee H Beam
Stainless steel H beam is a corrosion-resistant alloy known for its durability and strength, offering excellent corrosion resistance, high strength and aesthetics. Compared with I-shaped steel, H-shaped steel provides greater strength and load-bearing capacity and is often used in the construction of buildings, bridges and infrastructure projects that require superior structural support and stability.
H-beam representation method
Height H× width B× web thickness T1 × wing thickness T2, for example, H-beam SS304 200×200×8×12 means wide flange H-beam with a height of 200mm and a width of 200mm and a thickness of 8mm and a thickness of 12mm. Its grade is SS304.Representation of hot – rolled H – beams.
Section steel is divided into wide flange H-beam (HW), narrow flange H-beam (HN) and H-beam pile (HU) three categories.Its representation method is: height H× width B× web thickness T1 × wing thickness T2, for example, H-beam SS304 200×200×8×12 is a wide flange H-beam with a height of 200mm, a width of 200mm, a thickness of 8mm, and a thickness of 12mm.
Chemical Composition of our material
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | – |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | – |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | – |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | – |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | – |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | – |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | – |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-
3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 – 15.0 | 16 .0 -1 8.0 | 2.0 –
3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 – 13 .0 | 17.0 -1 9.0 | – |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | – |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | – |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | – | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | – |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | – | 11.5-13.5 | – |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 |
SS 304 H Beam STOCK SUPPLY APPLICATIONS
These stainless steel 304 H Beam are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:
Stainless steel 304 H Beam for Chemical and petrochemical
Stainless Steel 304 H Beam used for Power generation
Stainless steel 304 H Beam for Renewable energy
304 Stainless Steel H Beam for Pulp and Paper
Stainless Steel 304 H Beam for Process piping
Seamless Stainless Steel 304H Beam used for Pharmaceutical
Stainless Steel 304 H Beam applications for Food and beverage
Stainless Steel 304 H Beam used for Oil and gas
Stainless Steel 304 H Beam applications in Mining
Stainless Steel 304 H Beam used for Water/waste
Stainless Steel 304 H Beam application for Marine Industry
Stainless Steel hot rolled 304 H Beam Channel application for Fertilizers.
