Welded Stainless Steel H Beam AISI304 100*100 - 400*400 Thickness 6mm 8mm 10mm 12mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 321 310S |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Stainless Steel Beam | Size | 100*100 - 400*400mm Or Custom As Request |
|---|---|---|---|
| Grade | 201 304 316L.etc | Length | 6m Or As Request |
| Finishing | Pickling | Other Products | Angle, Channel, Flat , Hexagonal |
| Standard | ASTM EN GB | Type | Welded |
| Highlight | AISI304 Steel H Beam,6mm Welded Stainless Steel H Beam,8mm Welded Stainless Steel H Beam |
||
Product Description

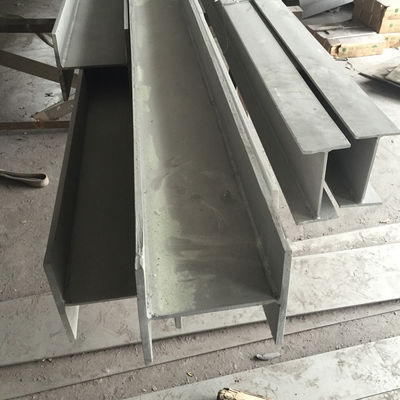

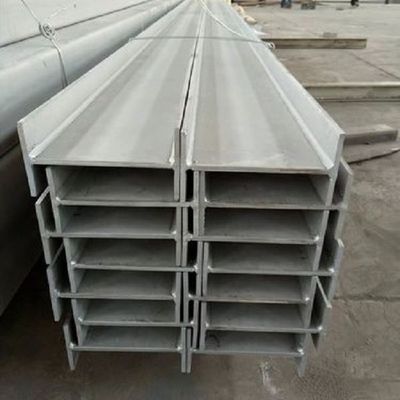

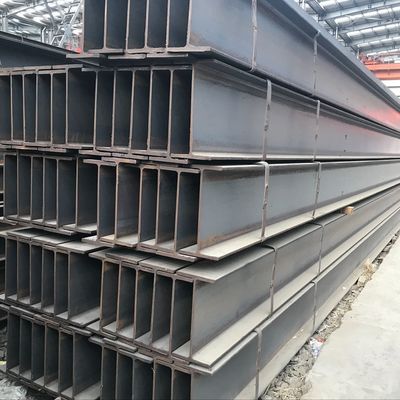

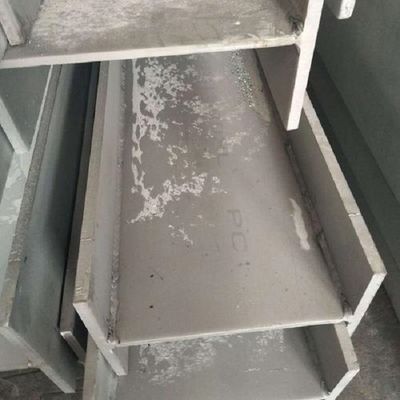

Welded Stainless Steel H Beam AISI304 100*100 - 400*400 Thickness 6mm 8mm 10mm 12mm
|
Material
|
Stainless steel I Beam H Beam
|
||
|
Product name
|
I Beam H Beam
|
||
|
Length
|
6--12m or according to customer's request
|
||
|
Flange Thickness
|
8mm - 70mm
|
||
|
Flange Width
|
50-400mm
|
||
|
Web Thickness
|
5-45mm
|
||
|
Web Width
|
100mm-900mm
|
||
|
Delivery time
|
7-15days or negotiation according to the quantity
|
||
|
Payment term
|
30%deposit,70% against copy of B/L
|
||
Chemical Composition of our Stainless Steel H Beam
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | Nb + Ta |
| 304 | ≤ 0.08% | ≤ 1.00% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 18.00-20.00% | 8.00-10.50% | – | – | – |
| 304L | ≤ 0.03% | ≤ 1.00% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 18.00-20.00% | 8.00-12.00% | – | – | – |
| 316 | ≤ 0.08% | ≤ 1.00% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 16.00-18.00% | 10.00-14.00% | 2.00-3.00% | – | – |
| 316L | ≤ 0.03% | ≤ 1.00% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 16.00-18.00% | 10.00-14.00% | 2.00-3.00% | – | – |
| 316Ti | ≤ 0.08% | ≤ 1.00% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 16.50-18.50% | 10.50-13.50% | 2.00-2.50% | 5xC-0.70% | – |
| 321 | ≤ 0.08% | ≤ 1.00% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 17.00-19.00% | 9.00-12.00% | – | 5xC-0.70% | – |
| 347 | ≤ 0.08% | ≤ 1.00% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 17.00-19.00% | 9.00-13.00% | – | – | 10xC-1.10% |
| 310 | ≤ 0.25% | ≤ 1.50% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 24.00-26.00% | 19.00-22.00% | – | – | – |
| 309 | ≤ 0.20% | ≤ 1.00% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | 22.00-24.00% | 12.00-15.00% | – | – | – |
| 430 | ≤ 0.12% | ≤ 1.00% | ≤ 1.00% | ≤ 0.040% | ≤ 0.030% | 16.00-18.00% | – | – | – | – |
Our Service for Stainless Steel
Dimensional Measurement: Measure dimensional parameters such as length, width and thickness by measuring instruments to ensure that the stainless steel is qualified and meets the design requirements.
Surface Measurement: Measure parameters such as flatness, bumpiness and surface roughness of the stainless steel surface to help ensure that the quality and surface condition of the stainless steel meets the requirements.
Thickness Measurement: Use thickness gauges to accurately measure the thickness of the stainless steel to ensure it meets the design requirements.
Material Measurement: Use material analysis instruments to measure the chemical composition and mechanical properties of the stainless steel to ensure that the quality and properties of the stainless steel meet the requirements.
Bending And Deformation Measurements: Use tools such as bending gauges and displacement sensors to measure and monitor the degree of bending and deformation of stainless steel to ensure that it is within the allowable range.
