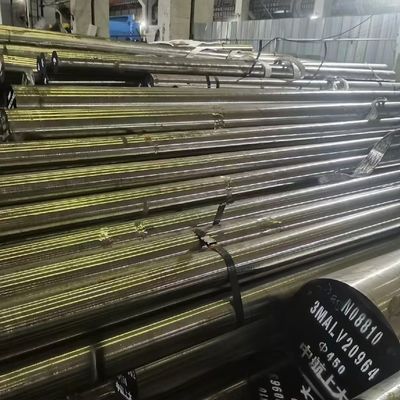

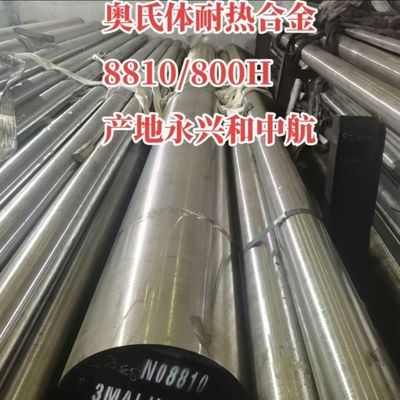

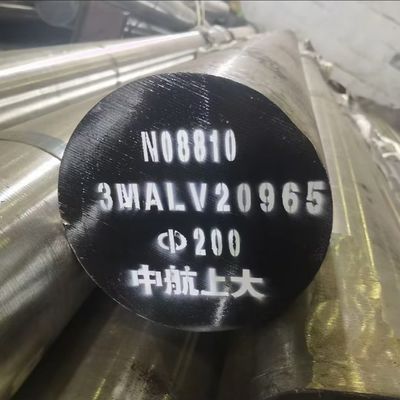

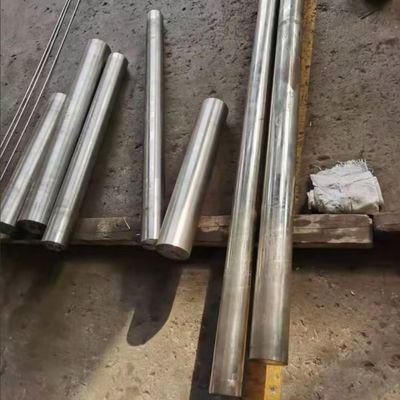

Hot Rolled & Cold Drawn Incoloy 800H Round Bar UNS N08810 Nickel Alloy Bright Bars
| Lugar de origem | CHINA |
|---|---|
| Marca | DELTA |
| Certificação | ISO |
| Número do modelo | INCOLOY 800H |
| Quantidade de ordem mínima | 10 kgs |
| Preço | 15-20 USD/Kg |
| Detalhes da embalagem | Embalagem padrão para exportação |
| Tempo de entrega | 5 - 12 dias com base na quantidade |
| Termos de pagamento | L/C, T/T, Western Union |
| Habilidade da fonte | 3 toneladas por semana |
Contacte-me para amostras grátis e vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Produtos | Incoloy 800H barra redonda | Nota | INCOLOY 800H |
|---|---|---|---|
| Diâmetro | 10 - 350mm | Comprimento | corte por encomenda de qualquer comprimento conforme pedido |
| Padrão | ASTM EN | Serviço | CORTE |
| Porta de carregamento | Porto de Xangai | Superfície | preto, brilhante |
Descrição de produto
Products Specification
|
Standard
|
AISI, ASTM, BS, DIN, GB, JIS
|
||
|
Grade
|
Monel series: 400 K500
Inconel series: 600 601 625 718 725 Incoloy series: 800 800H 825 925 Hastelloy series: B,B2,B3,C,C-276,C-4,C-22 Pure: Ni200, Ni201 |
||
|
Specifications
|
Round bar
|
Diameter:4~300mm
|
|
|
Flat bar
|
Thickness
|
1.0~100mm
|
|
|
Width
|
1~1500mm
|
||
|
Square bar
|
Size: 4*4-100*100mm
|
||
|
Length
|
2m, 5.8m, 6m, or as required.
|
||
|
Surface
|
Black, peeled, polishing, bright, sand blast, hair line, etc.
|
||
|
Price Term
|
Ex-work, FOB, CFR, CIF, etc.
|
||
|
Delivery Time
|
Standard size is in stock,prompt delivery or as order's quantity.
|
||
Hot Rolled & Cold Drawn Incoloy 800H Round Bar UNS N08810 Nickel Alloy Bright Bars
UNS N08810, commonly designated as Incoloy 800H, is a premium nickel-iron-chromium alloy round bar engineered for exceptional performance in high-temperature and corrosive environments. Available in hot rolled and cold drawn (bright bar) variants, this alloy combines robust mechanical strength, superior corrosion resistance, and structural stability—making it a cornerstone material in industries demanding reliability under extreme conditions. Whether for chemical processing equipment or power generation components, UNS N08810 round bars deliver consistent performance backed by rigorous material standards.
Core Properties of UNS N08810 (Incoloy 800H) Alloy
The exceptional performance of UNS N08810 stems from its precisely balanced chemical composition and austenitic face-centered cubic lattice structure. Its controlled carbon content (0.05-0.10%) and optimized aluminum-titanium ratio (0.85-1.20% combined) enhance creep resistance and structural stability at elevated temperatures, distinguishing it from standard 800-series alloys . Below is a detailed breakdown of its key properties:
1. Chemical Composition (Weight %)
| Element | Minimum | Maximum | Role |
|---|---|---|---|
| Nickel (Ni) | 30.0 | 35.0 | Enhances stress corrosion cracking resistance in aqueous environments |
| Chromium (Cr) | 19.0 | 23.0 | Provides oxidation, carburization, and pitting corrosion resistance |
| Iron (Fe) | Balance | Balance | Base metal ensuring structural integrity |
| Carbon (C) | 0.05 | 0.10 | Improves high-temperature creep and rupture strength |
| Manganese (Mn) | - | 1.50 | Aids in hot workability |
| Silicon (Si) | - | 1.00 | Supports oxide film formation for corrosion protection |
| Copper (Cu) | - | 0.75 | Minimized to avoid compatibility issues in harsh chemicals |
| Sulfur (S) | - | 0.015 | Reduced to prevent brittleness |
| Aluminum (Al) | 0.15 | 0.60 | Enhances oxidation resistance with titanium |
| Titanium (Ti) | 0.15 | 0.60 | Stabilizes austenitic structure and prevents sensitization |
2. Physical & Mechanical Performance
| Property | Specification | Notes |
|---|---|---|
| Density | 8.0 g/cm³ | Consistent across hot rolled and cold drawn variants |
| Melting Point | 1350-1400°C | Suitable for high-temperature processing and service |
| Tensile Strength (Rm) | 450 N/mm² (min) | Maintained even after long-term exposure to 600°C+ |
| Yield Strength (Rp0.2) | 180 N/mm² (min) | Ensures structural stability under load |
| Elongation (A5%) | 35% (min) | Enables formability for complex components |
| Oxidation Resistance | Up to 1000°C | Forms a protective chromium oxide layer |
Hot Rolled vs. Cold Drawn UNS N08810 Round Bars
UNS N08810 round bars are manufactured via two primary processes—hot rolling and cold drawing—each producing distinct characteristics tailored to specific applications. The table below compares their key attributes:
| Feature | Hot Rolled UNS N08810 Round Bar | Cold Drawn (Bright Bar) UNS N08810 |
|---|---|---|
| Surface Finish | Black, scaled, or pickled; matte texture | Bright, smooth, mirror-like (Ra ≤ 0.8μm) |
| Diameter Range | 10-200mm (standard); larger sizes on request | 3-100mm; tighter tolerances for precision applications |
| Dimensional Tolerance | ±0.5mm | ±0.1mm |
| Mechanical Properties | Moderate hardness; excellent ductility | Higher hardness (150-180 HB); enhanced tensile strength |
| Key Advantages | Cost-effective; ideal for heavy machining | Ready for direct assembly; reduces post-processing |
| Typical Applications | Furnace components, structural supports | Precision shafts, valve stems, instrument parts |
Processing & Fabrication Capabilities
UNS N08810 round bars offer exceptional workability, supporting diverse manufacturing needs across industries:
- Hot Working: Processable at 871-1232°C (1600-2250°F) for forging, bending, and shaping, followed by air cooling to retain mechanical properties .
- Cold Working: Cold drawing enhances surface finish and dimensional accuracy; annealing at 982°C for 15 minutes restores ductility after extensive cold forming .
- Welding: Compatible with standard stainless steel welding techniques (TIG, MIG, SMAW) without pre-heating; post-weld annealing is optional for critical corrosion-resistant applications .
- Machining: Machinable with carbide tools; coolant use is recommended to prevent work hardening .
Industrial Applications & Use Cases
The unique combination of high-temperature strength and corrosion resistance makes UNS N08810 round bars indispensable in demanding sectors:
- Chemical & Petrochemical: Sulfur-containing atmosphere equipment, nitric acid condensers, and 醋酐裂化 tubes—leveraging resistance to both oxidative and reductive media .
- Power Generation: Heat exchanger tubes, steam generator components, and gas turbine parts—withstanding 600-700°C operating temperatures without creep deformation .
- Nuclear Industry: Condenser systems and reactor auxiliary piping—valued for metallurgical stability and radiation resistance .
- Manufacturing: Furnace fixtures, carburizing equipment, and heating element sheathing—resisting oxidation and carburization in high-heat environments .
Quality Assurance & Standards Compliance
Our UNS N08810 round bars adhere to global industry standards, including ASTM B408 (for nickel alloy bars) and ASME SB408, ensuring consistency in composition and performance. Each batch undergoes rigorous testing:
- Chemical analysis via X-ray fluorescence (XRF)
- Mechanical testing (tensile, yield, elongation)
- Non-destructive testing (ultrasonic for internal defects)
- Dimensional inspection with precision calipers
Why Choose UNS N08810 Over Alternatives?
Compared to similar alloys like UNS N08811 (Incoloy 800HT), UNS N08810 offers a cost-effective balance of performance for applications below 700°C. While 800HT excels at higher temperatures, UNS N08810 delivers superior value for most industrial heat-resistant needs . Its resistance to sulfur-containing atmospheres also makes it preferable to 304 stainless steel in chemical processing .
Whether your project requires the cost-efficiency of hot rolled bars or the precision of cold drawn bright bars, UNS N08810 (Incoloy 800H) round bars provide reliable performance in the world’s most challenging environments. Contact us for custom sizes, technical data sheets, or application-specific recommendations.
