1250mm Width Galvalume Steel Sheet with Regular Spangle for Container Plate Application
商品の詳細
| 厚さ | 0.12～3.0mm（亜鉛メッキ）、0.25～3.0mm（ガルバリウム）、0.12～1.2mm（塗装済み） | 幅 | 914mm、1000mm、1200mm、1219mm、1220mm、1250mmまたはカスタム |
|---|---|---|---|
| 長さ | カスタム長 | コイル重量 | 2～8トン |
| コイルの内径 | 508mmまたは610mm | 亜鉛メッキ | Z30 - Z275 |
| アルミ亜鉛コーティング | AZ40～AZ180 | 塗るタイプ | PE、HDP、SMP、PVDF |
| 表面仕上げ | 通常のスパンコール、非スパンコール | 合金組成 | 55% アルミニウム、43% 亜鉛、2% シリコン |
| 耐熱性 | > 300°C | パターン印刷の厚さ | 0.17～1.5mm |
| 膜厚 | 20～25μm/5～10μm | コーティング層 | 上2層、下1層 |
| 標準 | AISI、ASTM、BS、DIN、GB、JIS、AS | ||
| ハイライト | 1250mm Width Galvalume Steel Sheet,Regular Spangle Aluminum Zinc Alloy Coated Steel,Container Plate Application Galvanized Steel Sheet |
||
製品の説明
Galvalume Steel Sheet 1250mm Regular Spangle Aluminum Zinc Alloy Coated Steel
High-quality Galvalume steel sheet featuring regular spangle pattern with aluminum-zinc alloy coating for superior corrosion resistance and durability.
Product Specifications
| Product Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness |
Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface |
Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Product Range
Prepainted Galvanized Steel Coil (PPGI)
Color coated steel plate using cold rolled steel and galvanized steel as base plates. Features surface pretreatment and continuous coating method for excellent corrosion resistance, light weight, and attractive appearance. Ideal for construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries.

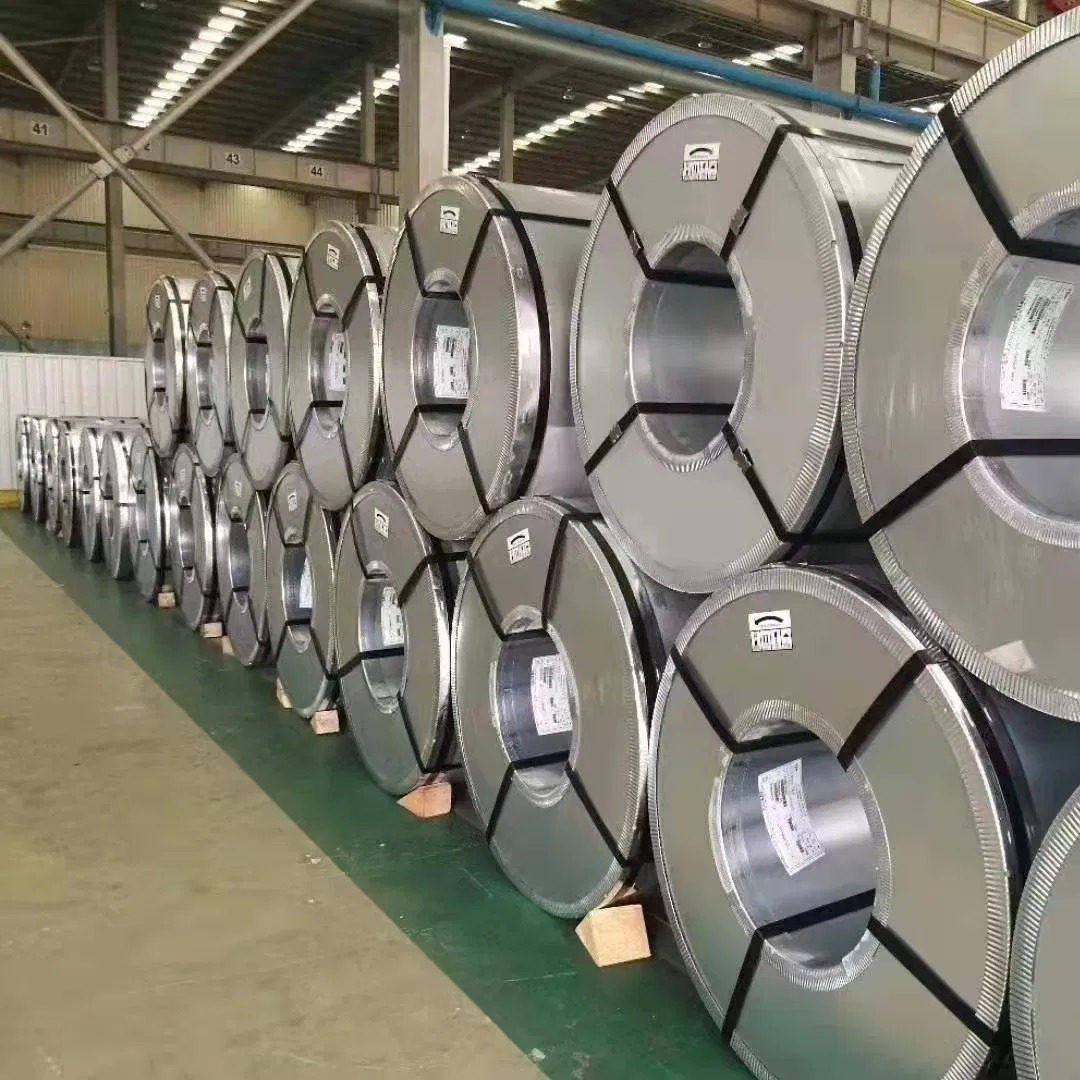

Galvanized Steel Coil
Zinc-coated steel sheet providing economical and effective rust prevention. Available in various surface states including regular spangle, small spangle, and big spangles. Ensures excellent appearance free from defects such as no plating, holes, cracks, or white rust.
Galvalume Steel Coil
Advanced alloy composition of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. Features dense tetrad junction crystal structure offering 3 times better corrosion resistance than pure galvanized sheet. Excellent heat resistance up to 300°C, suitable for chimney tubes, ovens, illuminators, and solar lampshades.
Featured Product: Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Description | Color plate printed on galvanized or aluminized zinc substrates using transfer printing or film covering technology |
| Features | Bright colors, wide variety including marble grain, camouflage, and wood grain patterns |
| Size | Thickness: 0.17 - 1.5mm, Width: less than 1.5mm |
| Color & Pattern | Customizable as per client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um / 5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm / 610mm |
| Application | Household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| Minimum Order Quantity | 5 Tons |
|---|---|
| Payment Terms | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Profile
We are a modern enterprise specializing in high-end coating plate processing, sales, and distribution. Our product portfolio includes color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese metal plates.
Strategic Partnerships
We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel.
Our products are widely used in steel structure buildings, metal building materials, steel silos, ventilation pipes, mechanical and electrical housing, home appliance plates, elevators, purification plates, and automotive stamping parts.
Expert Team
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency for our clients.
Committed to our value concept of sustainable development, we strive to provide perfect demand solutions and establish ourselves as China's premier high-end coating and plating steel products service provider.
