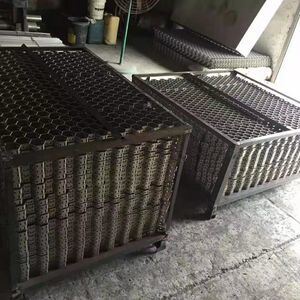

Stainless Steel Wire Mesh with 50*50mm Hole Size in Grade 410S for Boiler Applications
Produktdetails
| Materialtyp | Edelstahlplatte | Webtechnik | Köperbindung |
|---|---|---|---|
| Draht Mesh Width | 1m | Technik | Stanzen |
| Nickel | 8 % | Lochgröße | 50*50mm |
| Höhe | 8-40mm | Dicke | 1.2-2.0mm |
| Ganze Größe | 8-1,2-40*40 bis 40-1,75-50*50 | Fläche pro Stück | 0,6-2m2/STK |
| Length*width | 1070*562mm bis 1550*1300mm | Klassen verfügbar | 410S, 304, 310S, 0Cr13, S32205, 0Cr25Ni20, 304L, 321, 309S, 316L, 420, 430 |
| Sechskantbefestigung | Ja | Wärmedämmung | Ja |
| Futtermaterial | Ja | ||
| Hervorheben | Stainless Steel Grade 410S Wire Mesh,50*50mm Hole Size Punched Wire Mesh,Boiler Application Tortoise Shell Net |
||
Produkt-Beschreibung
High Quality Stainless Steel Tortoise Shell Net 50×50mm
Premium stainless steel tortoise shell mesh available in grades 410S, 304, and 310S with standard 50×50mm hole size. Engineered for superior performance in demanding industrial applications.
Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length×Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length1550×width | |
Additional Grades Available: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Hexagonal design significantly increases fixing power with lining materials
- Effectively strengthens self-connecting properties of lining materials
- Prevents heat insulation layer from peeling off
- Enhances fastness and durability of lining materials
Industrial Applications
Specifically designed for pouring shapeless lining material and lining material fixing applications. Our products serve as essential metal components for mainframe factories and petrochemical manufacturers worldwide.
Widely utilized in petrochemical large-scale devices, particularly as critical lining parts that contribute to catalyst performance and system efficiency.
Product Gallery
