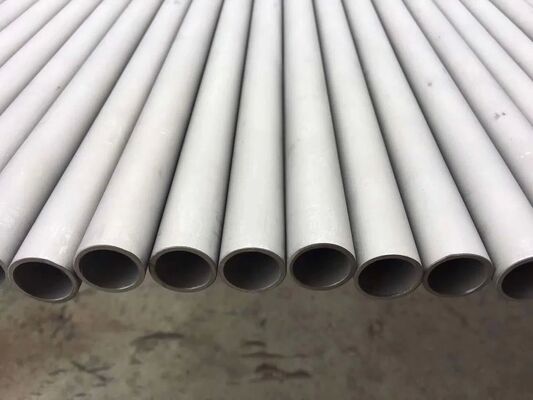

304 321 316L 310S 904L 2205 2507 253MA Stainless Steel Seamless Pipe Cold Rolled with Polished Surface OD 6-300mm
Produktdetails
| Modellnummer | 304 321 316L 310S 904L 2205 2507 253MA | Form | Runden |
|---|---|---|---|
| Technik | kaltgewalzt | Oberflächenbehandlung | Poliert |
| Außendurchmesser | 6-300mm | Produktionskapazität | 500000 kg |
| Chrominhalt | 24–26 % | Nickelinhalt | 21-23% |
| Molybdängehalt | 2-2,50 % | Kohlenstoffgehalt | ≤ 0,020 % |
| Zugfestigkeit | 540-740 MPa | Beweisstärke | 250 MPa |
| Bruchdehnung | 40 % | Härte Brinell | 95 |
| Elastizitätsmodul | 195 GPa | ||
| Hervorheben | Cold Rolled Stainless Steel Seamless Pipe,Polished Surface Stainless Steel Tube,OD 6-300mm Stainless Steel Round Pipe |
||
Produkt-Beschreibung
304 321 316L 310S 904L 2205 2507 253mA Stainless Steel Seamless Pipe
High-performance stainless steel seamless pipes available in various grades including 304, 321, 316L, 310S, 904L, 2205, 2507, and 253mA for diverse industrial applications.
TP 310 / 310S Stainless Steel Sheet Metal ASTM A240 Overview
310, 310S, and 310H stainless steel are austenitic grades specifically designed for high-temperature applications up to 2,100°F in continuous service. With 25% chromium and 20% nickel content, these grades offer exceptional resistance to oxidation and corrosion.
Product Forms
- Sheet, Plate, Coil, Strip
- Wire, Pipe, Tube, Bar
- Profile, Round, Flat, Square, Hexagonal
310S stainless steel features lower carbon content compared to standard 310 plate, reducing susceptibility to embrittlement and sensitization during service. 310H stainless steel plate represents the high-carbon variant. These grades perform well in moderately carburizing atmospheres typical of petrochemical environments but are not recommended for frequent liquid quenching due to thermal shock vulnerability. Their toughness and low magnetic permeability also make them suitable for cryogenic applications.
Specifications and Dimensions
Product Details
| Product Type | 310 Stainless Steel Sheet, 310 Stainless Steel Plate |
|---|---|
| Trade Names | SS 310, SUS 310, Inox 310, DIN 1.4840, UNS S31000, AISI 310, SAE 310 Sheet |
| Specification | ASTM A240 / ASME SA240 |
| Tolerances | EN 10258 / DIN 59381 |
| International Standards | ASTM A480, ASTM A959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510 |
| Dimensions | Cold Rolled: 0.5-6.4 mm, Hot Rolled: 3.0-10.0 mm |
| Thickness Range | 0.1 to 100 mm |
| Width Range | 10-2500 mm |
| Length Options | 2m, 2.44m, 3m, or custom requirements |
| Cutting Methods | Laser Cut, Plasma Cut, Waterjet Cut, Saw Cut, Shear/Guillotine |
| Available Finishes | Satin, 2B, 2D, BA NO (8), Cold Rolled (CR), Hot Rolled (HR), No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror |
| Hardness Options | Spring Hard, Soft, Hard, Half Hard, Quarter Hard |
Manufacturing Range
Plate, Sheet, Coils, Foils, Plain Sheet, Rolling Sheet, Rolling Plate, Strip, Flats, Clad Plate, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, Flat Shim, Flat Sheet, Shim Sheet, Tread Plate, Checker Plate
Dimension Ranges
- Width: 600mm - 2030mm
- Thickness: 0.1mm - 120.0mm
- Length: 300mm - 6000mm (Maximum: 18000mm)
Surface Finishes
No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, Color-coating, Embossing
Applications
TP 310/310S stainless steel sheets and plates serve diverse industrial sectors with their exceptional high-temperature performance:
- Furnace Construction: Burners, recuperators, doors, fans, and piping systems
- Food Processing: Equipment requiring high-temperature resistance
- Chemical & Pharmaceutical: Processing equipment and components
- Power Generation: Coal gasifier internals, pulverized coal burners, tube hangers
- Petroleum Refining: Catalytic recovery systems, flares, recuperators, tube hangers
- Thermal Processing: Annealing covers and boxes, burner grids, doors, fans, muffles, retorts, walking beams
- Steel & Ore Processing: Smelter equipment, steel melting, continuous casting systems
- Sintering & Cement Plants: Burners, burner shields, feeding and discharging systems, wind boxes
- Cryogenic Components: Applications requiring toughness and low magnetic permeability
International Equivalents
DIN 1.4845, DIN X12CrNi25-21, DIN X8CrNi25-21, AFNOR Z12CN2520, BS 310S24, UNI X6CrNi2520, SS 2361, UNE F.331, SAE 310S, JIS SUH310, JIS SUS310S, JIS SUS310STP, JIS SUS310STPY, JIS SUS310STB, JIS SUS310SFB, EN X8CrNi25-21, EN 1.4845, UNS S31008
Technical Data Sheet
Chemical Composition
| Element | Content (%) |
|---|---|
| Iron (Fe) | Balance |
| Chromium (Cr) | 24-26 |
| Nickel (Ni) | 21-23 |
| Molybdenum (Mo) | 2-2.50 |
| Manganese (Mn) | ≤ 2 |
| Nitrogen (N) | 0.10-0.16 |
| Silicon (Si) | ≤ 0.70 |
| Phosphorous (P) | 0.025 |
| Carbon (C) | ≤ 0.020 |
| Sulfur (S) | ≤ 0.010 |
Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile Strength | 540-740 MPa | 78,320-107,327 psi |
| Proof Strength | 250 MPa | 36,259 psi |
| Modulus of Elasticity (20°C) | 195 GPa | 28,282 ksi |
| Elongation at Break (50% cold worked) | 40% | 40% |
| Hardness, Brinell | 95 | 95 |
