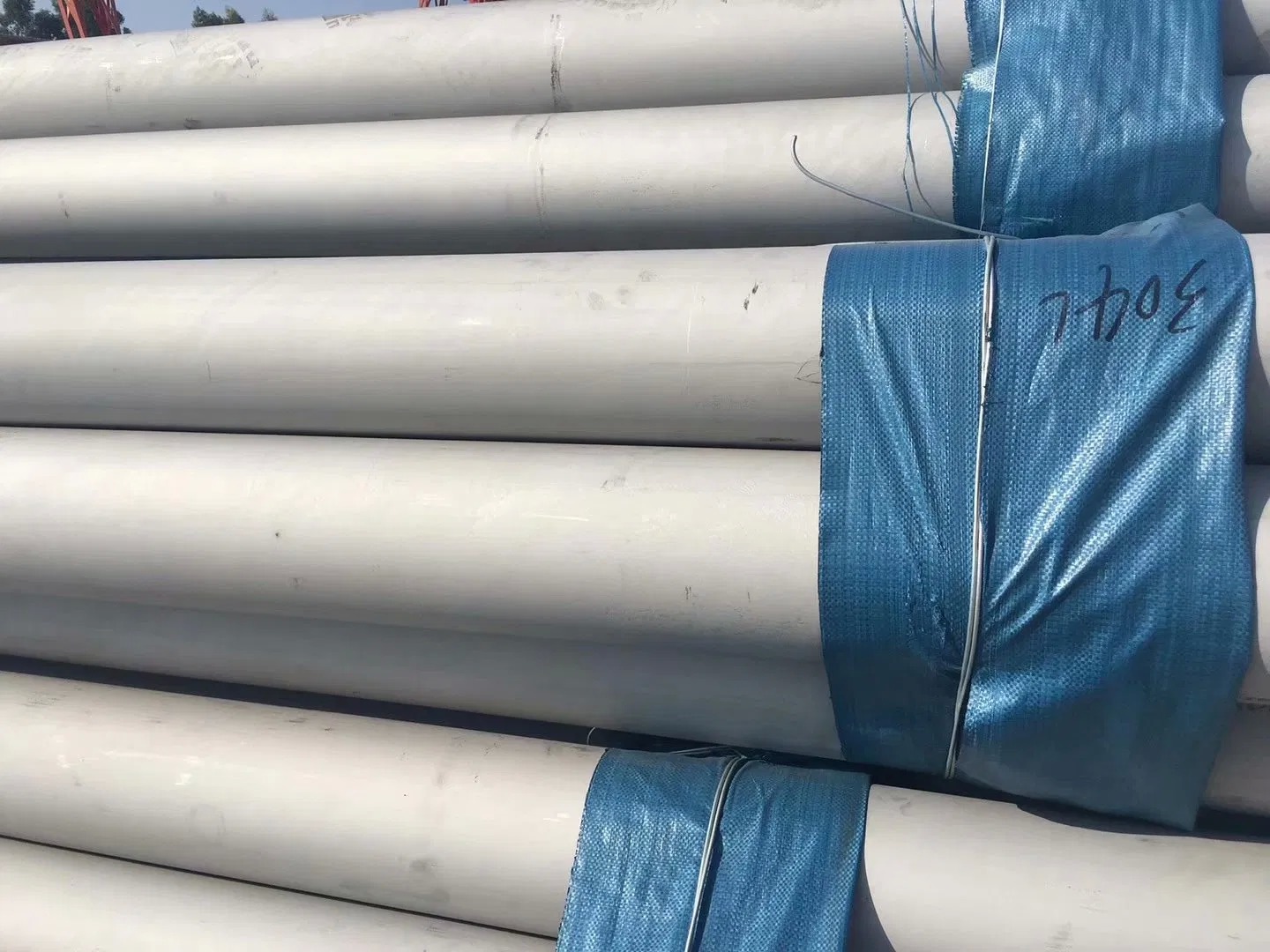

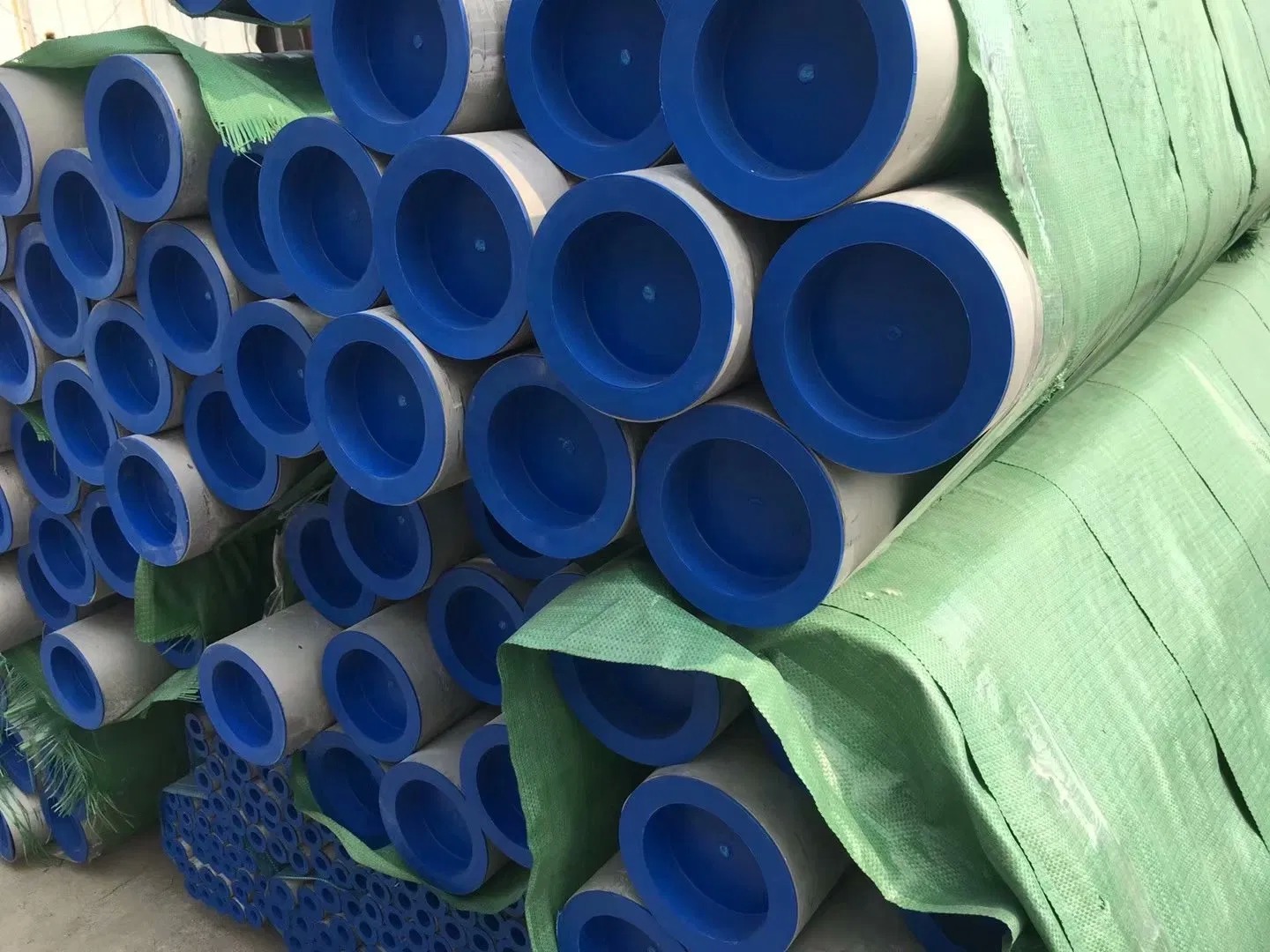

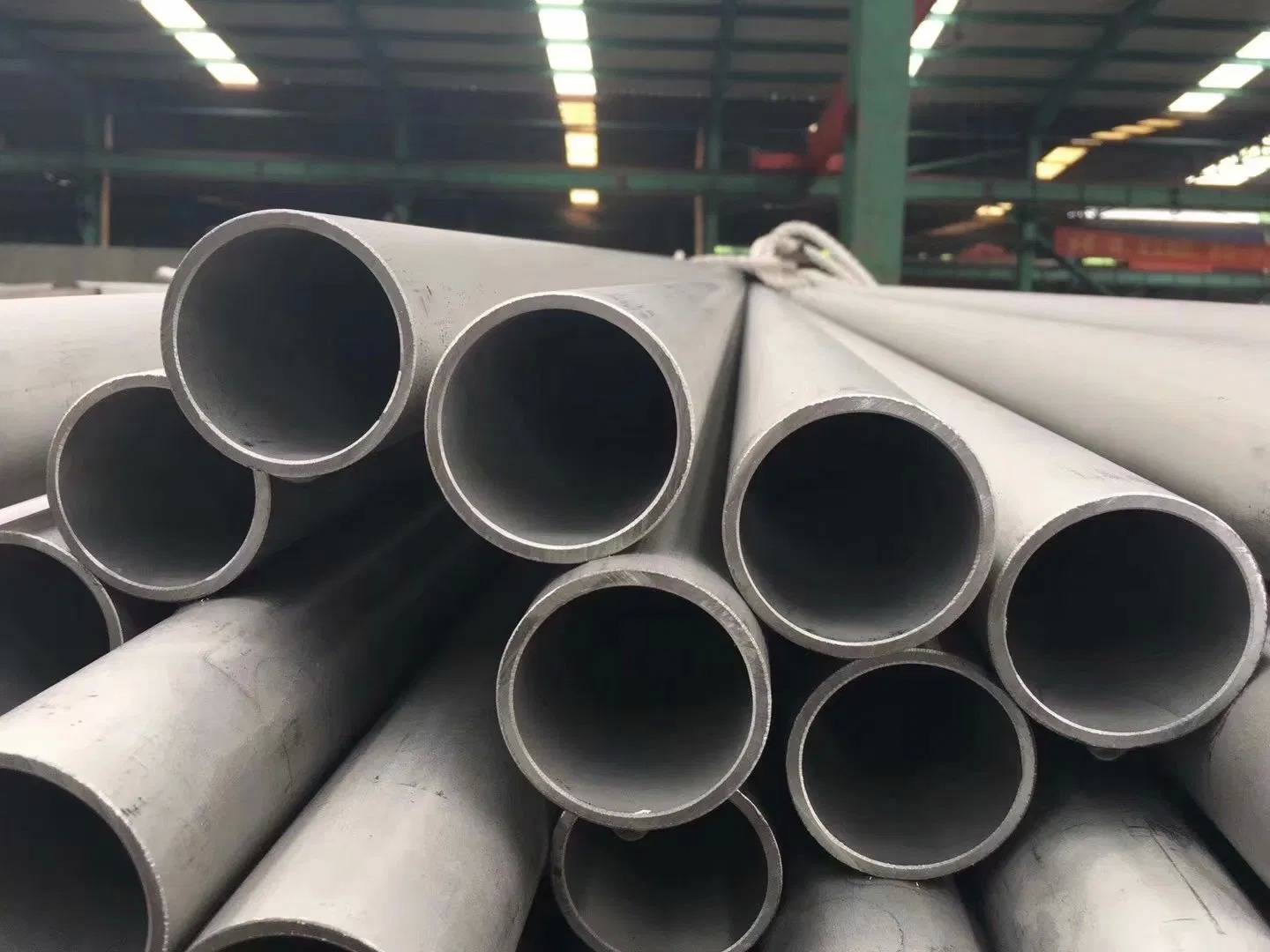

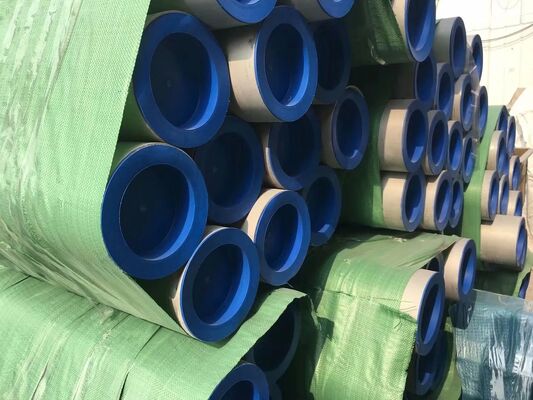

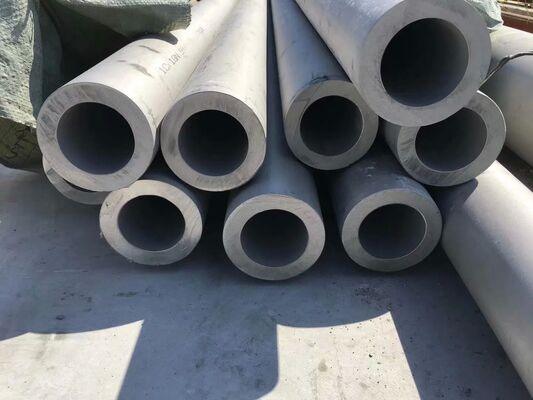

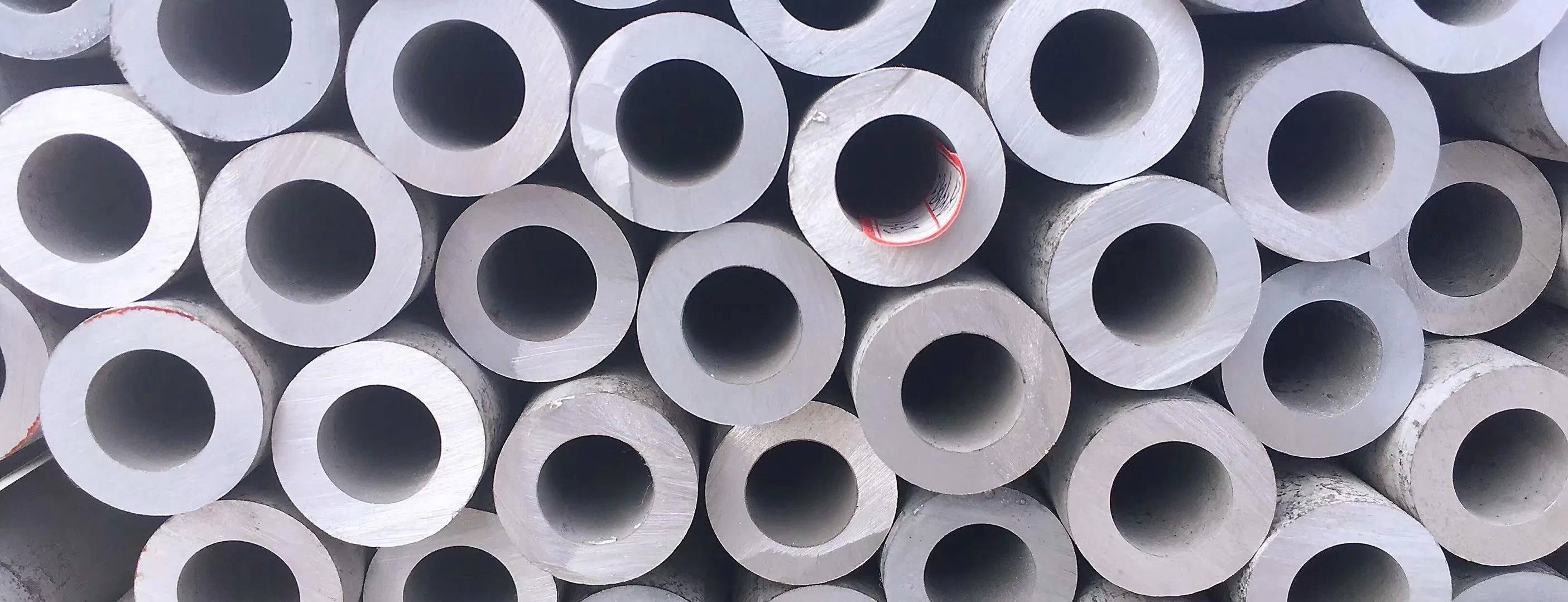

310S Stainless Steel Seamless Pipe with Cold Rolled Technique and Polished Surface

Zertifizierung	AISI, ASTM, EN, DIN
Min Bestellmenge	50 kg
Preis	US $6.75-8.75 / kg

Produktdetails

Modell Nr.	310s	Form	Runden
Technik	kaltgewalzt	Oberflächenbehandlung	Poliert
Spezifikation	Außendurchmesser 6–300 mm	Produktionskapazität	500000 kg
Chrominhalt	24–26 %	Nickelinhalt	21-23%
Molybdängehalt	2-2,50 %	Kohlenstoffgehalt	≤ 0,020 %
Zugfestigkeit	540-740 MPa	Beweisstärke	250 MPa
Bruchdehnung	40 %	Härte	95 Brinell
Elastizitätsmodul	195 GPa
Hervorheben	310S Stainless Steel Seamless Pipe , Cold Rolled Stainless Steel Pipe , Polished Surface Seamless Pipe

Hinterlass eine Nachricht

Produkt-Beschreibung

310S Stainless Steel Seamless Pipe

TP 310 / 310S Stainless Steel Sheet Metal ASTM A240 Overview

310, 310S and 310H stainless steel is an austenitic stainless steel designed for high temperature applications, capable of continuous service up to 2,100°F. This grade contains 25% chromium and 20% nickel, providing exceptional resistance to oxidation and corrosion. 310S stainless steel is the lower carbon version, making it less prone to embrittlement and sensitization in service, while 310H is the high carbon version. These grades are widely used in moderately carburizing atmospheres found in petrochemical environments and are suitable for cryogenic applications due to their toughness and low magnetic permeability.

Available Product Forms

Sheet, plate, coil, strip, wire, pipe, tube, bar, profile, round, flat, square, hexagonal

Specifications and Dimensions

Product Type	310 Stainless Steel Sheet, 310 Stainless Steel Plate
Other Trade Names	SS 310, SUS 310, Inox 310, DIN 1.4840, UNS S31000, AISI 310, SAE 310 Sheet
Specification	ASTM A240 / ASME SA240
Tolerances	EN 10258 / DIN 59381
International Standards	ASTM A480, ASTM A959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510
Dimensions	Cold rolled: 0.5-6.4 mm, Hot rolled: 3.0-10.0 mm
Thickness Range	0.1 to 100 mm
Width Range	10-2500 mm
Length Options	2m, 2.44m, 3m, or as required
Cutting Methods	Laser Cut, Plasma Cut, Waterjet Cut, Saw Cut, Shear/Guillotine
Available Finishes	Satin, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc.
Hardness Options	Spring Hard, Soft, Hard, Half Hard, Quarter Hard

Dimension Ranges

Width: 600mm - 2030mm
Thickness: 0.1mm - 120.0mm
Length: 300mm - 6000mm (Maximum: 18000mm)

Surface Finishes

No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, color-coating, embossing

Applications

Cryogenic components and furnace construction (burners, recuperators, doors, fans, piping)
Food processing, chemical, and pharmaceutical industries
Fluid bed furnaces, coal combustors, grids, piping, and wind boxes
Ore and steel processing facilities (smelters, steel melting, continuous casting equipment)
Petroleum refining (catalytic recovery systems, flares, recuperators, tube hangers)
Power generation (coal gasifier internals, pulverized coal burners, tube hangers)
Sintering and cement plants (burners, burner shields, feeding/discharging systems, wind boxes)
Thermal processing industry (annealing covers/boxes, burner grids, doors, fans, muffles, retorts, walking beams)

Equivalent Standards

DIN 1.4845, DIN X12CrNi25-21, DIN X8CrNi25-21, AFNOR Z12CN2520, BS 310S24, UNI X6CrNi2520, SS 2361, UNE F.331, SAE 310S, JIS SUH310, JIS SUS310S, JIS SUS310STP, JIS SUS310STPY, JIS SUS310STB, JIS SUS310SFB, EN X8CrNi25-21, EN 1.4845, UNS S31008

Chemical Composition

Element	Content (%)
Iron, Fe	Balance
Chromium, Cr	24-26
Nickel, Ni	21-23
Molybdenum, Mo	2-2.50
Manganese, Mn	≤ 2
Nitrogen, N	0.10-0.16
Silicon, Si	≤ 0.70
Phosphorous, P	0.025
Carbon, C	≤ 0.020
Sulfur, S	≤ 0.010

Mechanical Properties

Properties	Metric	Imperial
Tensile strength	540-740 MPa	78,320-107,327 psi
Proof strength	250 MPa	36,259 psi
Modulus of elasticity (20°C)	195 GPa	28,282 ksi
Elongation at break (In 2", 50% cold worked)	40%	40%
Hardness, Brinell	95	95
