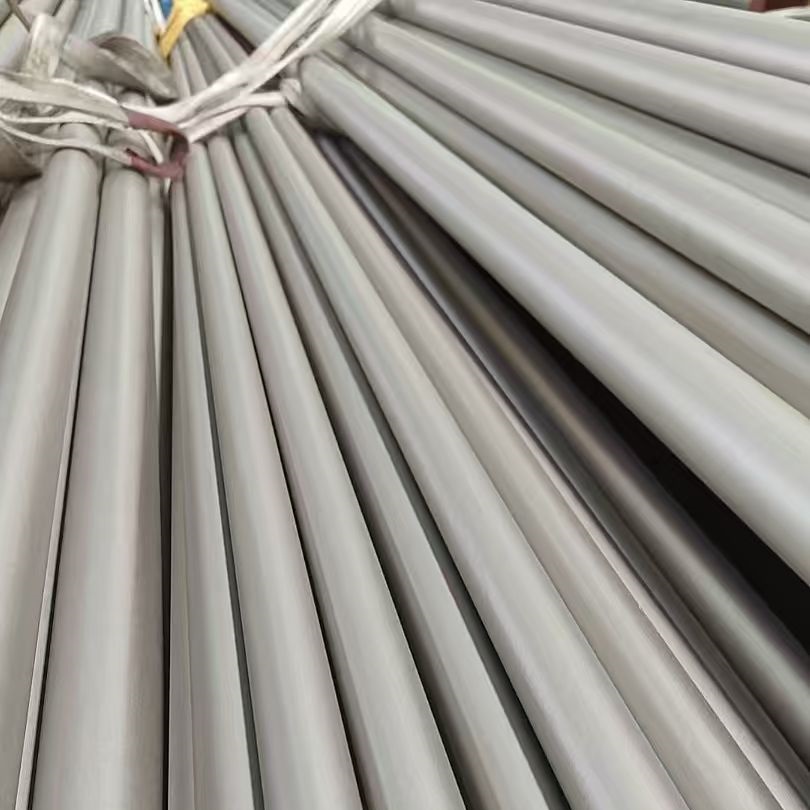

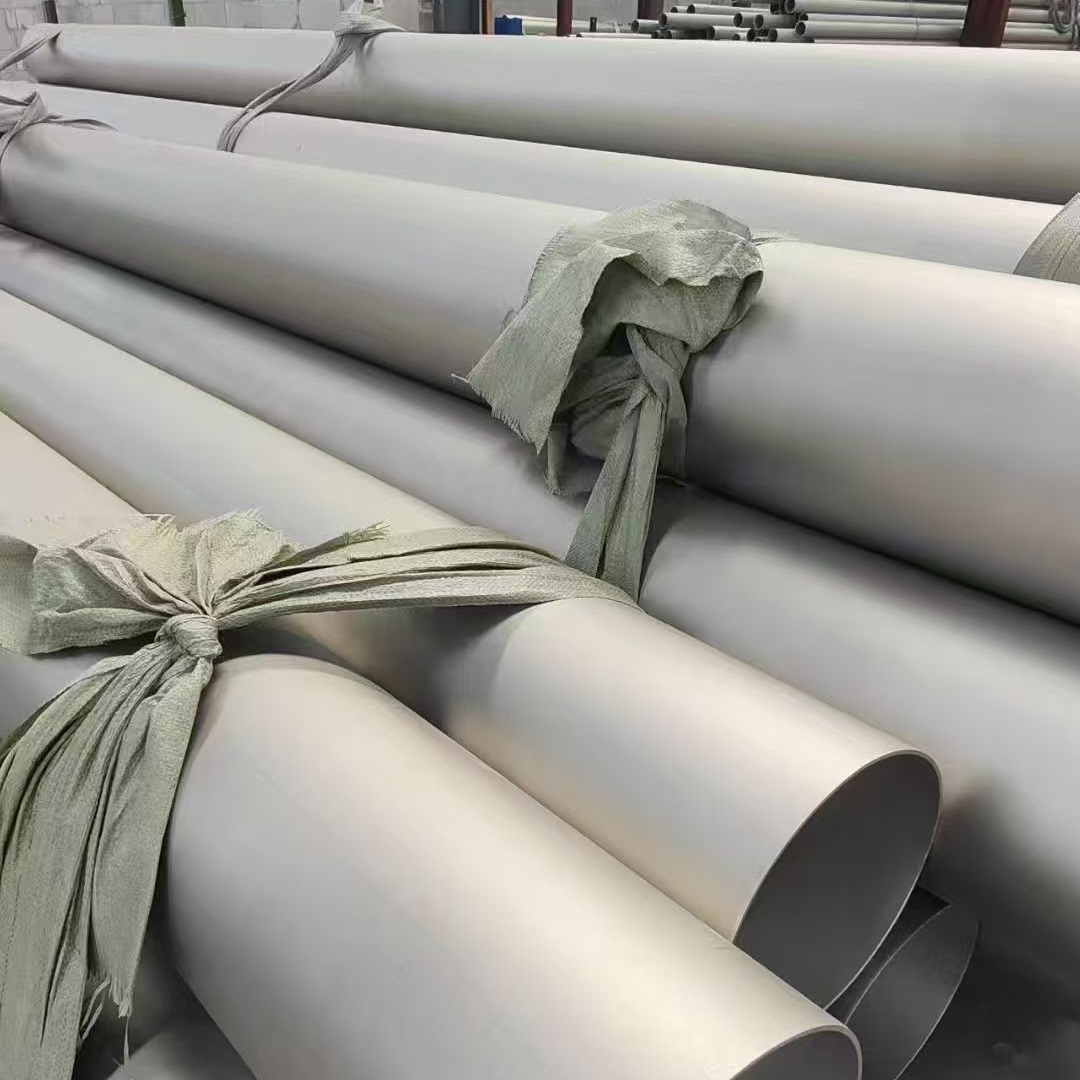

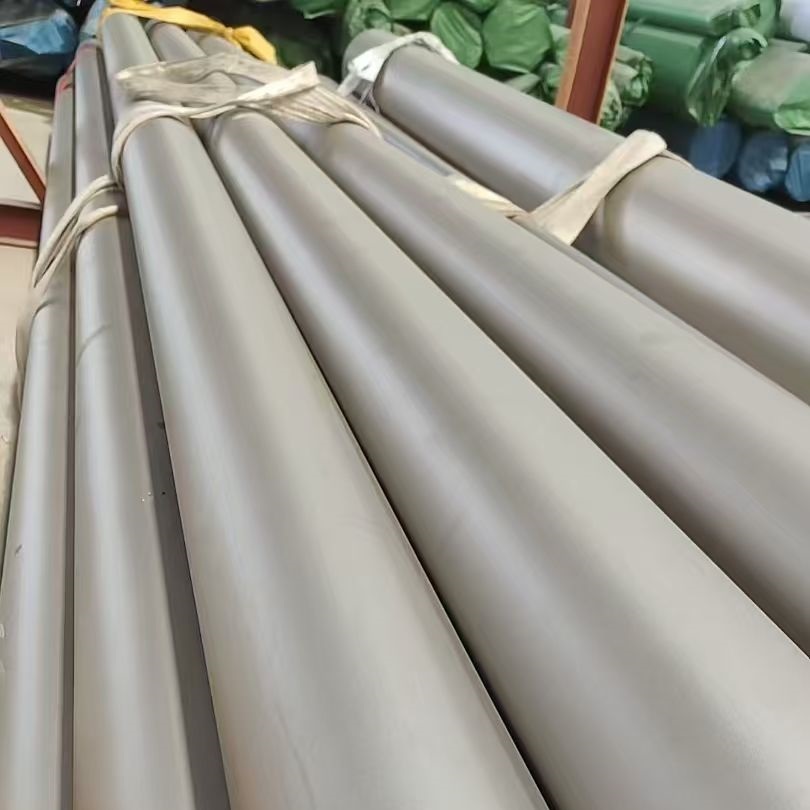

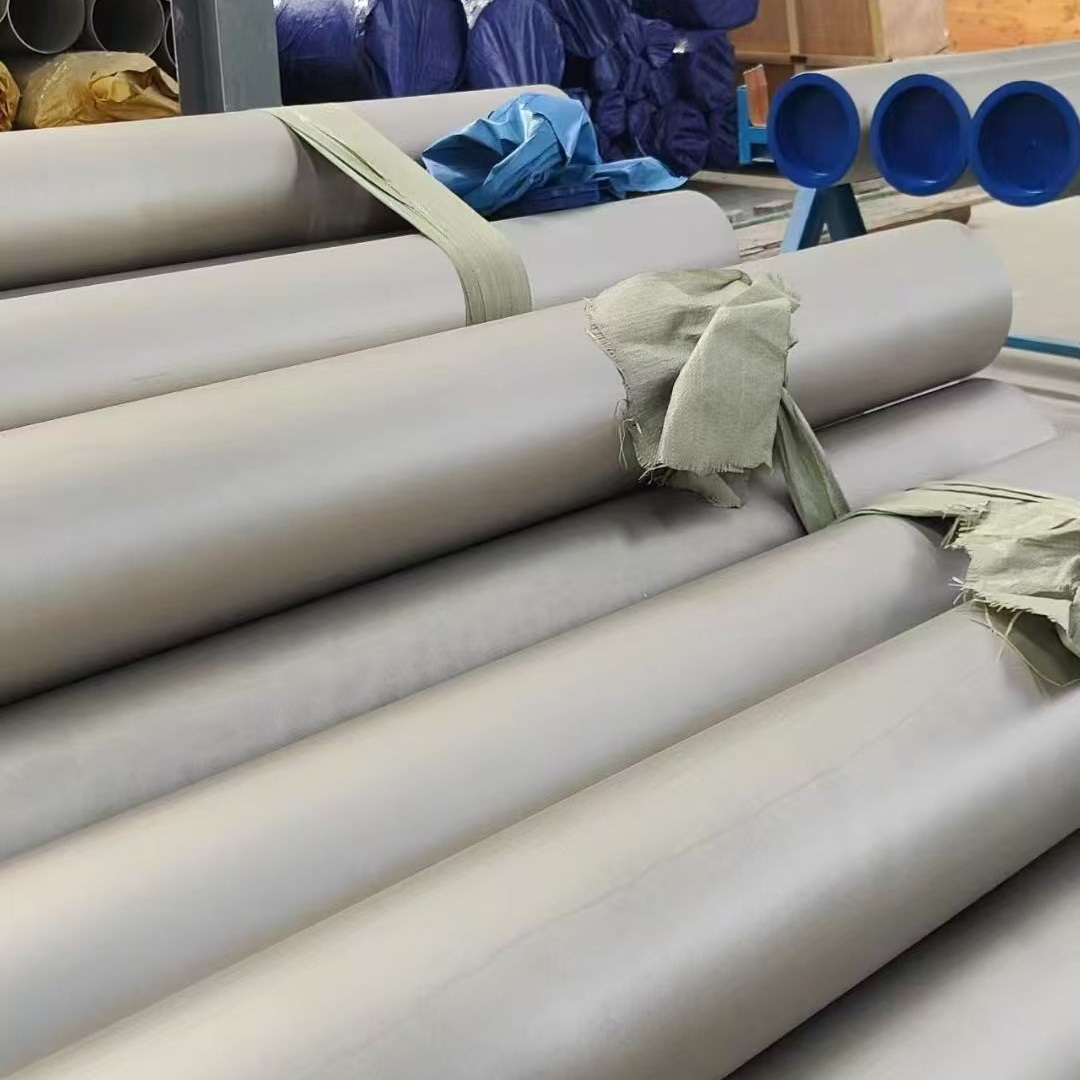

TP347H Stainless Steel Seamless Pipe DN10-DN400 ASTM EN
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 347H |
| Minimum Order Quantity | 500 kgs |
| Price | 5-10 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Seamless Pipe | Grade | 347H |
|---|---|---|---|
| Diameter | DN10 - DN400 | Length | 6m Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Thickness | 4.0 - 50.0mm |
| Highlight | TP347H stainless steel pipe,ASTM stainless steel seamless pipe,EN standard stainless steel pipe |
||
Product Description
TP347H Stainless Steel Pipe Seamless Tube DN10 - DN200 Hot Rolled Steel Pipes Alloy 347H
Products Specification
| Products Name | 347H Stainless Steel Seamless Pipe |
Grade: |
304 304L 309S 310S 314 316L 316Ti 321 329 347H 410 2205 2507 S32760 904L 254SMO and equal grade in GB JIS EN DIN Standard |
| Standards: | ASTM A213M-94b ASTM A249M-94a ASTM A269-94a ASTM A312M-94b,ect. |
| DIN 17456-85 DIN 17458-85 DIN 17459-92.ect | |
| JIS G3446-1994 JIS G3448-1997 JIS G3459-1997 JIS G3463-1994,ect. | |
| GB13296-1991 GB14975-2002 GB14976-2002,ect. | |
| Size: | ND5 - DN400 |
| Length: | 6m length or cutting any length as request |
| Applications: | fluid and gas transport, structure , boiler, heat exchanger, super heater |
TP347H stainless steel pipes, also known as Alloy 347H, are high-performance austenitic stainless steel seamless tubes renowned for exceptional high-temperature strength, corrosion resistance, and stability under prolonged heat exposure. Hot-rolled for enhanced structural integrity, these pipes are widely trusted in critical industrial applications where resistance to oxidation, creep, and intergranular corrosion is paramount. Produced to meet rigorous standards, they are ideal for high-pressure and high-temperature environments.
Key Parameters
- Alloy Grade: TP347H (a niobium-stabilized austenitic stainless steel, with "H" indicating a higher carbon content for improved high-temperature strength).
- Chemical Composition (Typical, %):
- Chromium (Cr): 17.0 - 19.0 (boosts oxidation and corrosion resistance).
- Nickel (Ni): 9.0 - 13.0 (stabilizes the austenitic structure, enhancing ductility and toughness).
- Niobium (Nb) + Tantalum (Ta): 10×C - 1.00 (stabilizes carbides, preventing intergranular corrosion during welding or high-temperature service).
- Carbon (C): 0.04 - 0.10 (higher carbon content compared to standard 347, improving creep strength at elevated temperatures).
- Manganese (Mn): ≤ 2.0.
- Silicon (Si): ≤ 0.75.
- Phosphorus (P): ≤ 0.040.
- Sulfur (S): ≤ 0.030.
- Mechanical Properties:
- Tensile Strength: ≥ 550 MPa.
- Yield Strength: ≥ 205 MPa.
- Elongation: ≥ 35% (in 50mm gauge length).
- High-Temperature Performance: Maintains stability at continuous service temperatures up to 900°C, with excellent resistance to creep (slow deformation under constant load) and oxidation.
Standards
TP347H seamless pipes comply with globally recognized standards to ensure consistency and reliability:
- ASTM A312/A312M (Standard Specification for Seamless and Welded Austenitic Stainless Steel Pipes).
- ASTM A213/A213M (Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes).
- ASME SA312/SA213 (Codes for pressure vessel and boiler applications, widely adopted in energy and petrochemical industries).
- EN 10216-5 (European standard for seamless steel tubes for pressure purposes, applicable to austenitic stainless steels).
Specifications
- Form: Seamless tube (no welds, ensuring uniform strength and leak resistance, critical for high-pressure systems).
- Processing: Hot-rolled (enhances grain structure, improving mechanical strength and suitability for high-temperature service).
- Nominal Diameter (DN): DN10 to DN200 (equivalent to outer diameters approximately 17.2mm to 219.1mm, covering a range of industrial piping needs).
- Wall Thickness: Typically 1.2mm to 12mm (customizable based on pressure and application requirements, with precise tolerances for seamless fit).
- Length: Common lengths include 6m, 12m, or cut-to-size as per customer specifications.
Similar Grades
TP347H is part of a family of stabilized austenitic stainless steels, with several comparable grades:
- TP321H: Titanium-stabilized instead of niobium, offering similar high-temperature performance but with slightly lower creep strength than 347H.
- TP347: Lower carbon variant (C ≤ 0.08%) of 347H, suitable for moderate-temperature applications where high creep resistance is not required.
- 1.4550 (EN designation): European equivalent to TP347H, with matching chemical composition and mechanical properties.
- TP316H: Molybdenum-containing (2-3% Mo) for enhanced corrosion resistance in chloride environments, with high-temperature strength comparable to 347H.
Applications
TP347H seamless pipes are engineered for demanding high-temperature and high-pressure environments, making them indispensable in:
- Power Generation: Boiler tubes, superheaters, and reheaters in fossil fuel and nuclear power plants, where resistance to high heat and steam oxidation is critical.
- Petrochemical Industry: Piping and heat exchangers in refineries and chemical plants, handling high-temperature hydrocarbons and corrosive process fluids.
- Aerospace and Aviation: Exhaust systems and high-temperature ducting in aircraft engines, where structural stability under extreme heat is essential.
- Oil and Gas: Downhole tubing and surface piping in high-temperature wells, resisting corrosion from aggressive reservoir fluids.
- Industrial Furnaces: Piping for furnace components, radiant tubes, and heat recovery systems exposed to continuous high temperatures.
