Precison Stainless Steel Pipe ASTM A269 SS Pipe Grade 304 316L 321 310S 317L 904L 254SMO

  • Precison Stainless Steel Pipe ASTM A269 SS Pipe Grade 304 316L 321 310S 317L 904L 254SMO
  • Precison Stainless Steel Pipe ASTM A269 SS Pipe Grade 304 316L 321 310S 317L 904L 254SMO
  • Precison Stainless Steel Pipe ASTM A269 SS Pipe Grade 304 316L 321 310S 317L 904L 254SMO
  • Precison Stainless Steel Pipe ASTM A269 SS Pipe Grade 304 316L 321 310S 317L 904L 254SMO
  • Precison Stainless Steel Pipe ASTM A269 SS Pipe Grade 304 316L 321 310S 317L 904L 254SMO
Place of Origin China
Brand Name DELTA
Certification ISO
Model Number 201 304 316L 321 310S 314 347 2205 2507 904L.etc
Minimum Order Quantity 500 kgs
Price 2400 - 3500 USD/Ton

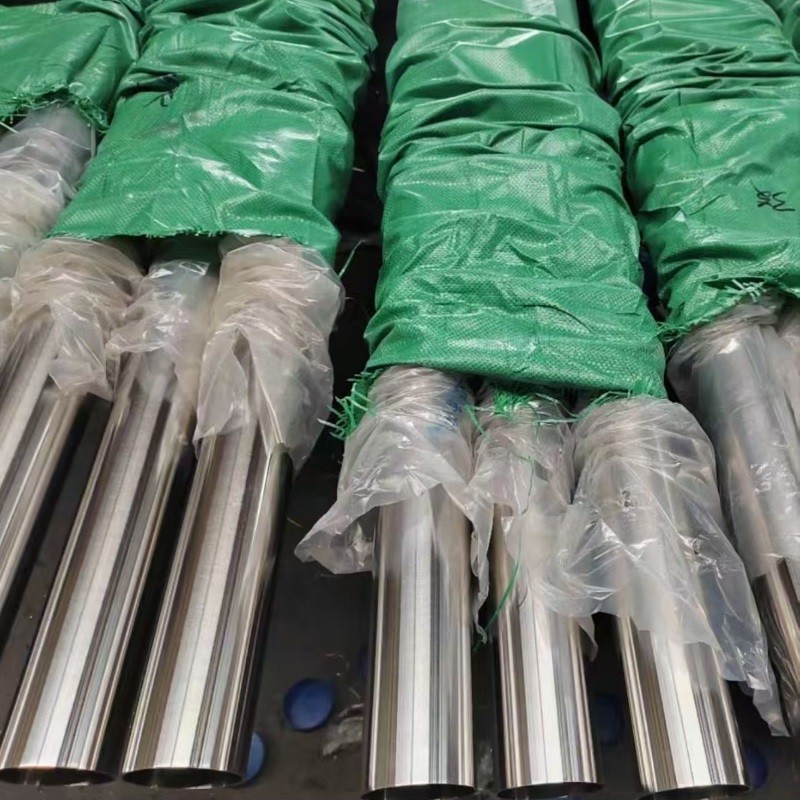

Packaging Details standard packing for export
Delivery Time 5 - 12 days based on the quantity
Payment Terms T/T, Western Union, L/C
Supply Ability 10 Ton per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products BA Stainless Steel Pipe Grade 304 316L 321 2205 310S 904L.etc
Standard ASTM GB EN Length 6m Or As Request
Diameter 6 - 219mm Or As Clients Request Wall Thickness 0.4 - 8.0mm
Type Seamless Pipe Service Cutting
Other Shape Square, Rectangle
Highlight

254SMO Stainless Steel Pipe
Leave a Message
Product Description

Precison Stainless Steel Pipe ASTM A269 SS Pipe Grade 304 316L 321 310S 317L 904L 254SMO


Products Specification



Standard ASTM A213, ASTM A269, ASME SA213, ASME SA269
Pipe Type Bright Annealed Stainless Steel Tubing
Grades 304, 304L, 316, 316L, 321, 310S, 2205, 2507
Dimensions Outer Diameter (OD): 1.00 mm to 76.2 mm
Wall Thickness 0.2 mm to 6.0 mm
Length Up to 12 meters (custom lengths available upon request)
Manufacturing Process Cold Drawn, Bright Annealed, Seamless
Material Surface Finish Bright Annealed (BA), Mirror Polished, No. 4 Finish
End Type Plain End (PE), Beveled End (BE), Threaded End (TE)
Certifications ISO 9001, EN 10204 3.1 / 3.2, PED, ASME



We are specialized manufacturer of ASTM A269 TP304, ASTM A269 TP304L, ASTM A269 TP316, ASTM A269 TP316L, ASTM A269 Tubing in China. Delivery condition in Bright Annealing or Annealing Pickling and Outside surface Polishing.

ASTM A269 Tubing mainly include ASTM A269 TP316 Stainless Steel Instrumentation Tubing, ASTM A269 TP316L Stainless Steel Instrument Tubing, Stainless Steel Hydraulic Tubing. ASTM A269 is issued under the fixed designation ASTM A269, the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript epsilon indicates an editorial change since the last revision or reapproval.

This specification covers grades of nominal-wall thickness, stainless steel tubing for general corrosion-resisting and low-or high-temperature service, as designated in Table 1.

The tubing sizes and thickness usually furnished to this specification are 1⁄4 in. (6.4 mm) in inside diameter and larger and 0.020 in. (0.51 mm) in nominal wall-thickness and heavier.

Mechanical properties requirements do not apply to tubing smaller than 1⁄8 in. (3.2 mm) in inside diameter or 0.015 in. (0.38 mm) in thickness. Additional testing requirements may apply for use in ASME B31.3 applications.

ASTM A 262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steel A 370 Test Methods and Definitions for Mechanical Testing of Steel Products A 480/A 480M Specification for General Requirements.



ASTM A269 is under the jurisdiction of ASTM Committee on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee on Stainless and Alloy Steel Tubular Products. Last previous edition approved in 2015 as ASTM A269 – 2015a.

2.2 ASME Piping Code:
ASME B31.3 Process Piping

  • Nominal Pipe Size (NPS): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2 inch
  • Outside Diameter: 10,3 – 73 mm (0,405 – 2,875 inch)
  • Wall Thickness: 1,24 – 7,01 (0,049 – 0,276 inch)

ASTM A269 Tubing Price List

  • ASTM A269 TP304 seamless tube
    USD 3.5-4.9 / kgs
  • ASTM A269 TP304 seamless tubing
    USD 3540-4900 / Metric Ton

ASTM A269 TP316L Tubing Weight Chart

OD inches Wall Thickness
Average Wall Thickness
inches		 D/t Ratio ID inches Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1269
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.316L7
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.316L3 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904

ASTM A269 TP316 Tubing Heat Treatment Requirements

  • All material shall be furnished in the heat-treated condition. Except as provided in 6.2, the heat-treatment procedure shall, except for S31254 and S32654, S24565, N08367, N08904 and N08926, consist of heating the material to a minimum temperature of 1900°F (1040°C) and quenching in water or rapidly cooling by other means. Alternatively, for seamless tubes, immediately following hot forming while the temperature of the tubes is not less than the specified minimum solution treatment temperature, tubes may be individually quenched in water or rapidly cooled by other means.
  • Controlled structural or special service characteristics shall be specified as a guide for the most suitable heat treatment. If the final heat treatment is at a temperature under 1900°F and is so specified on the order, each tubes shall be stenciled with the final heat treatment temperature in degrees Fahrenheit after the suffix ”HT”.
  • S31254 and S32654 shall be heat-treated to a minimum temperature of 2100°F (1150°C) followed by quenching in water or rapidly cooling by other means.
  • S24565 SHALL BE HEAT-TREATED IN THE RANGE 2050°F (1120°C) to 2140°F (1170°C) followed by quenching in water or rapidly cooling by other means.
  • N08904 shall be heat treated to a minimum temperature of 2000°F (1100°C) followed by quenching in water or rapidly cooling by other means.
  • A solution annealing temperature above 1950°F (1065°C) may impair the resistance to intergranular corrosion after subsequent exposure to sensitizing conditions in TP321, TP347, and TP348. When specified by the purchaser, a lower temperature stabilization or re-solution anneal shall be used subsequent to the initial high temperature solution anneal.
  • N08926 shall be heat-treated to a minimum temperature of 2010°F (1100°C) followed by quenching in water or rapidly cooling by other means.
  • UNS N08367 should be solution annealed from 2025°F (1107°C)minimum followed by rapid quenching.
  • Solution annealing of S35045 shall consist of heating the material to a temperature of 2000°F (1093°C) minimum for an appropriate time, followed by cooling in still air or at a faster rate.

ASTM A269 Mechanical Properties



Grade UNS
Designation		 Tensile Strength, Min. Ksi [MPa] Yield Strength, Min. Ksi [MPa] Others
TP304 S30400 75 [515] 30 [205]
TP304L S30403 70 [485] 25 [170]
ASTM A269 TP316 S31600 75 [515] 30 [205]
ASTM A269 TP316L S31603 70 [485] 25 [170]
TP317 S31700 75 [515] 30 [205]
TP321 S32100 75 [515] 30 [205] welded & seamless
TP347 S34700 75 [515] 30 [205]
TP347H S34709 75 [515] 30 [205]


Flaring Test (Seamless Tubes)

One test shall be made on specimens from one end of one tube from each lot of finished tubes.

Flange Test (Welded Tubes)

One test shall be made on specimens from one end of one tube from each lot of finished tubes.

Hardness Test

Brinell or Rockwell hardness determination shall be made on specimens from two tubes from each lot. The term lot applies to all tubes prior to cutting, of the same nominal diameter and wall thickness that are produced from the same heat of steel. When final heat treatment is in a batch-type furnace, a lot shall include only those tubes of the same size and the same heat which are heat treated in the same furnace charge. When the final heat treatment is in a continuous furnace or when the heat-treated condition is obtained directly by quenching after hot forming, a lot shall include all tubes of the same size and heat, heat treated in the same furnace at the same temperature, time at heat, and furnace speed, or all tubes of the same size and heat, hot formed and quenched in the same production run.

Reverse flattening Test

For welded tubes, one reverse flattening test shall be made on a specimen from each 1500ft(460m) of finished tubing. Coiled tubing greater than 1500ft(450m) in length shall be sampled at both ends, a coil must be continuous without any circumferential butt welds.

Hydrostatic or Nondestructive Testing

Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test.

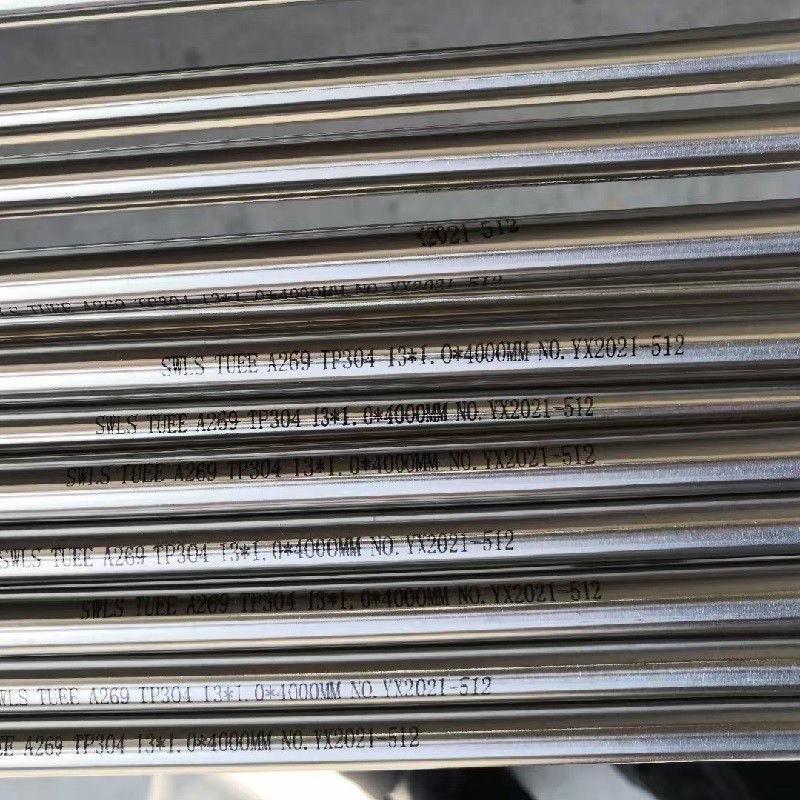

Markings

  • Markings will adhere to prescribed specifications in ASTM A1016/A 1016M and shall include whether the tubing is seamless or welded and the final heat-treatment temperature in digress Fahrenheit after the suffix” if the final heat treatment temperature is under 1900°F (1040°C).
  • When the nondestructive electric test is performed, each length of tubing shall be marked with the letters “NDE” and the certification, when required, shall also indicate this test.

Note:

  • Mill test certificates will be issued according to EN10204 3.1
  • All tubes shall be supplied as per applicable ASTM A269 Specification.

ASTM A269 Stainless Steel Tubes Application

These ASTM A269 TP316L stainless steel tube grades are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • ASTM A269 stainless steel tube for Chemical and petrochemical
  • ASTM A269 Welded Stainless Steel tube for Pulp and Paper
  • ASTM A269 Stainless Steel tubing for Mechanical Processing
  • ASTM A269 Stainless steel welded tube used for Power generation
  • ASTM A269 Stainless steel tube for Renewable energy
  • ASTM A269 Welded Stainless Steel tube used for Pharmaceutical
