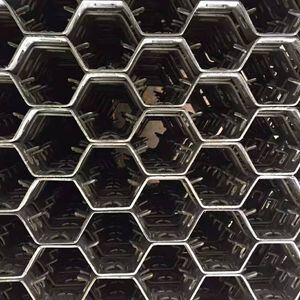

304 Stainless Steel Wire Mesh with Twill Weave Technique and 40x40mm Hole Size for Industrial Applications
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickel Content | 8% | Height | 8-40mm |
| Thickness | 1.2-2.0mm | Hole Size | 40x40-50x50mm |
| Area Per Piece | 0.6-2m² | Length | 1070-1550mm |
| Width | 562-1300mm | Grades Available | Carbon Steel, 0Cr13, 304, S32205, 0Cr25Ni20 |
| Hexagonal Fixing Power | Enhanced | Heat Insulation | Prevents Peeling |
| Lining Material Fastness | Increased | ||
| Highlight | 304 Stainless Steel Wire Mesh,Twill Weave Technique Hexagonal Wire Mesh,40x40mm Hole Size Tortoise Shell Net |
||
Product Description
Carbon Steel Tortoises Shell Net - Stainless Steel Variants 304, 410, 310S
Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length × Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length1550×width | |
Additional Grades Available: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Hexagonal hexsteel design increases fixing power with lining material
- Effectively strengthens self-connecting property of lining material
- Prevents heat insulation layer from peeling off
- Enhances fastness and durability of lining material
Applications
Used for pouring shapeless lining material and lining material fixing applications. We have produced necessary metal parts for many mainframe factories and various lining metal components for numerous petrochemical manufacturers. Our products are widely used in petrochemical large devices, especially as one of the key lining parts conducive to catalyst systems.
Product Images
