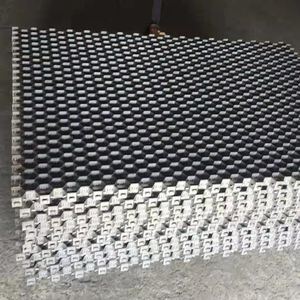

High-Temperature Resistant Corrosion Resistant Stainless Steel Tortoise Shell Net with 1m Width Hexagonal Wire Mesh
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickel Content | 8% | Height | 8-40mm |
| Thickness | 1.2-2.0mm | Hole Size | 40x40-50x50mm |
| Area Per Piece | 0.6-2m² | Length | 1070-1550mm |
| Width | 562-1300mm | Grades Available | Carbon Steel, 0Cr13, 304, S32205, 0Cr25Ni20, 304L, 321, 309S, 316L, 420, 430 |
| Hexagonal Fixing | Yes | Heat Insulation | Reinforced |
| Lining Material | Fixed | ||
| Highlight | High-Temperature Resistant Stainless Steel Tortoise Shell Net,Corrosion Resistant Hexagonal Wire Mesh,1m Width Punching Hole Wire Mesh |
||
Product Description
Stainless Steel Net Tortoise Shell / Stainless Steel High-Temperature Tortoiseshell Net
Standard Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length × Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length1550×width | |
Additional Available Grades: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Hexagonal hexsteel design increases fixing power with lining material
- Effectively strengthens self-connecting property of lining material
- Prevents heat insulation layer from peeling off
- Enhances fastness and durability of lining material
Applications
Used for pouring shapeless lining material and lining material fixing applications. We have produced necessary metal parts for many mainframe factories and various lining metal components for numerous petrochemical manufacturers. Our products are widely used in petrochemical large devices, especially as one of the key lining parts conducive to catalyst systems.
Product Images
