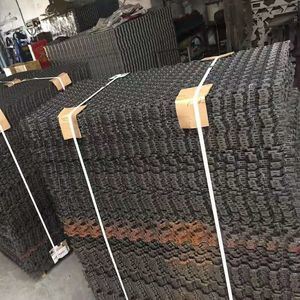

Grade 410 / 410S Corrosion Resistant Stainless Steel Tortoise Sheet Net with 1.0 - 2.0mm Thickness for Boiler Applications
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickel Content | 8% | Thickness Range | 1.0 - 2.0mm |
| Hole Size | 40*40mm, 50*50mm | Sheet Height | 8mm, 10mm, 15mm, 20mm, 25mm, 40mm |
| Sheet Area | 0.6m², 1m², 1.9m², 2m² | Sheet Dimensions | 1070*562mm, 1550*650mm, 1550*1230mm, 1540*1225mm, 1340*590mm |
| Available Grades | 410, 410S, 0Cr13, 304, S32205, 0Cr25Ni20, 304L, 321, 309S, 316L, 420, 430 | Hexagonal Hole Size | 40*40mm, 50*50mm |
| Sheet Length | 1070mm, 1550mm, 1540mm, 1340mm | Sheet Width | 562mm, 650mm, 1230mm, 1225mm, 590mm |
| Custom Dimensions | Length 1550mm, Width As Request | ||
| Highlight | Grade 410 / 410S Stainless Steel Tortoise Sheet Net,1.0 - 2.0mm Thickness Stainless Steel Punching Hole Wire Mesh,Corrosion Resistant Hexagonal Wire Mesh |
||
Product Description
Grade 410 / 410S Stainless Steel Tortoise Sheet Net
Available in thickness range of 1.0 - 2.0mm
Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length × Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length1550×width | |
Other Available Grades: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Hexagonal design increases fixing power with lining material
- Effectively strengthens self-connecting property of lining material
- Prevents heat insulation layer from peeling off
- Enhances fastness and durability of lining material
Applications
Used for pouring shapeless lining material and lining material fixing applications. We have supplied necessary metal parts for major mainframe factories and various lining metal components for petrochemical manufacturers. Our products are widely used in petrochemical large devices, particularly as key lining parts conducive to catalyst systems.
