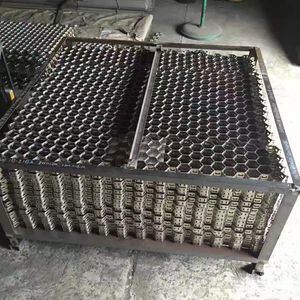

Stainless Steel Punching Hole Wire Mesh with Twill Weave Technique for Boiler Applications
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickels | 8% | Grade | Carbon Steel, 0Cr13, 304, S32205, 0Cr25Ni20 |
| Height | 8mm, 10mm, 15mm, 20mm, 25mm, 40mm | Thickness | 1.2mm, 1.5mm, 1.75mm, 2.0mm |
| Hole Size | 40*40mm, 50*50mm | Whole Size | 8-1.2-40*40, 10-1.2-40*40, 15-1.5-50*50, 20-1.75-50*50, 25-1.75-50*50, 40-1.75-50*50 |
| Area | 0.6m2/PCS, 1m2/PCS, 1.9m2/PCS, 2m2/PCS | Length*Width | 1070*562mm, 1550*650mm, 1550*1230mm, 1540*1225mm, 1340*590mm |
| Other Grades | 304L, 321, 309S, 316L, 420, 430 | Custom Size | Length1550*width (customizable) |
| Fixing Power | Strengthened Self-connecting Property | ||
| Highlight | Stainless Steel Material Punching Hole Wire Mesh,Twill Weave Technique Tortoise Shell Net,Boiler Application Hexagonal Hexsteel |
||
Product Description
Stainless Steel Tortoises Shell Shape Net Punching
High-quality stainless steel tortoises shell shaped net punching designed for industrial lining applications with superior fixing power and durability.
Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length × Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length 1550 × width | |
Additional Grades Available: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Enhanced fixing power with lining material for superior connection properties
- Effectively strengthens self-connecting property of lining materials
- Prevents heat insulation layer from peeling off
- Increases fastness and durability of lining materials
Applications
Specifically designed for pouring shapeless lining material and lining material fixing applications. Our products serve as essential metal components for mainframe factories and petrochemical manufacturers. Widely utilized in petrochemical large devices, particularly as key lining parts conducive to catalyst systems.
