ASTM JIS GB Standard Stainless Steel Punching Hole Wire Mesh with 40*40mm 50*50mm Hole Size and 8% Nickel Content
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickel Content | 8% | Hole Size | 40*40mm, 50*50mm |
| Height Range | 8-40mm | Thickness Range | 1.2-2.0mm |
| Area Per Piece | 0.6-2m² | Length Range | 1070-1550mm |
| Width Range | 562-1300mm | Grades Available | Carbon Steel, 0Cr13, 304, S32205, 0Cr25Ni20, 304L, 321, 309S, 316L, 420, 430 |
| Hexagonal Shape | Yes | Self Connecting | Yes |
| Heat Insulation | Yes | ||
| Highlight | ASTM JIS GB Standard Stainless Steel Wire Mesh,40*40mm 50*50mm Hole Size Punching Hole Wire Mesh,8% Nickel Content Tortoiseshell Wire Mesh |
||
Product Description

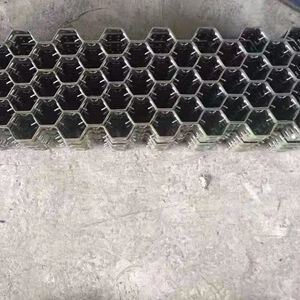

ASTM JIS GB Standard Stainless Steel Tortoises Shell Net
High-quality stainless steel tortoises shell net available in standard diameters of 40×40mm and 50×50mm, manufactured to ASTM, JIS, and GB standards for industrial applications.
Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length×Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as requested | |
Additional Grades Available: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Enhanced fixing power with lining material for superior connection properties
- Effectively strengthens self-connecting capability of lining materials
- Prevents heat insulation layer from peeling off
- Increases fastness and durability of lining materials
Industrial Applications
Specifically designed for pouring shapeless lining material and lining material fixing applications. Our products serve as essential metal components for mainframe factories and various lining requirements for petrochemical manufacturers. Widely utilized in petrochemical large-scale devices, particularly as key lining parts conducive to catalyst systems.
Product Images
