Grade 304 410S 310S 321 Stainless Steel Tortoise Shell Net with Twill Weave in 40*40mm and 50*50mm Sizes
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickel Content | 8% | Height | 8-40mm |
| Thickness | 1.2-2.0mm | Hole Size | 40*40mm, 50*50mm |
| Area Per Piece | 0.6-2m² | Length | 1070-1550mm |
| Width | 562-1300mm | Grades Available | 304, 410S, 310S, 321, 304L, 316L, 420, 430 |
| Whole Size | 8-1.2-40*40 To 40-1.75-50*50 | Hexagonal Fixing Power | Increased |
| Lining Material Fastness | Raised | ||
| Highlight | Grade 304 410S 310S 321 Stainless Steel Tortoise Shell Net,40*40mm and 50*50mm Stainless Steel Punching Hole Wire Mesh,Twill Weave Hexagonal Hexsteel |
||
Product Description

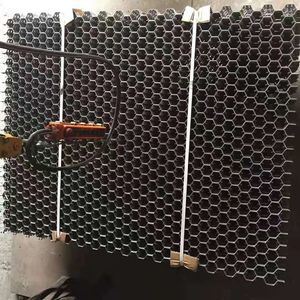

Stainless Steel Tortoise Shell Net - Grade 304, 410S, 310S, 321
Available Sizes & Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length × Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length1550×width | |
Other Available Grades: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Enhanced fixing power with lining material through hexagonal design
- Effectively strengthens self-connecting property of lining material
- Prevents heat insulation layer from peeling off
- Increases fastness and durability of lining material
Applications
Used for pouring shapeless lining material and lining material fixing applications. We have supplied essential metal components to major equipment manufacturers and various lining metal parts for petrochemical producers.
Our products are widely utilized in petrochemical large-scale devices, particularly serving as key lining components that support catalyst systems and enhance operational efficiency.
