Corrosion Resistant 304 316L 2205 Stainless Steel Tortoise Shell Net with 1.0 - 2.0mm Thickness for Boiler Applications
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickel Content | 8% | Thickness Range | 1.0 - 2.0mm |
| Hole Size | 40*40mm, 50*50mm | Height Range | 8mm - 40mm |
| Area Per Piece | 0.6m² - 2m² | Length Range | 1070mm - 1550mm |
| Width Range | 562mm - 1300mm | Available Grades | 304, 316L, 2205, 0Cr13, 0Cr25Ni20, 304L, 321, 309S, 420, 430 |
| Hexagonal Fixing | Yes | Heat Insulation | Yes |
| Lining Material | Yes | ||
| Highlight | Corrosion Resistant Stainless Steel Wire Mesh,304 316L 2205 Stainless Steel Tortoise Shell Net,1.0 - 2.0mm Thickness Punching Hole Mesh |
||
Product Description

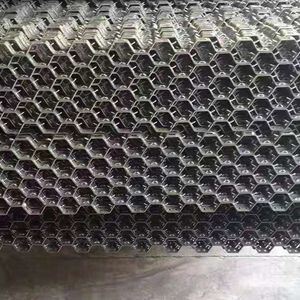

Corrosion Resistant Stainless Steel Tortoise Shell Net
High-quality stainless steel tortoise shell net available in 304, 316L, 2205 grades with thickness ranging from 1.0mm to 2.0mm, designed for superior corrosion resistance and durability in demanding industrial applications.
Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length × Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length 1550 × width | |
Additional Grades Available: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Enhanced fixing power with lining material for superior connection strength
- Effectively strengthens self-connecting properties of lining materials
- Prevents heat insulation layer from peeling off
- Increases fastness and durability of lining materials
Industrial Applications
Specifically designed for pouring shapeless lining material and lining material fixing applications. Our products serve as essential metal components for mainframe factories and various lining applications for petrochemical manufacturers. Widely utilized in petrochemical large-scale devices, particularly as key lining parts that support catalyst systems and enhance operational efficiency.
