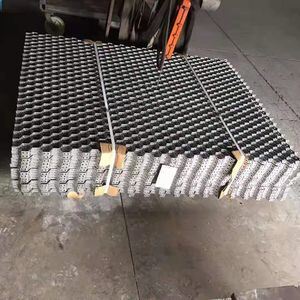

321 Stainless Steel Tortoise Shell Net with Twill Weave Technique in Heights 8mm 10mm 20mm 25mm for Boiler Applications
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickels | 8% | Height | 8mm, 10mm, 20mm, 25mm |
| Thickness | 1.2mm, 1.5mm, 1.75mm, 2.0mm | Hole Size | 40*40mm, 50*50mm |
| Whole Size | 8-1.2-40*40, 10-1.2-40*40, 15-1.5-50*50, 20-1.75-50*50, 25-1.75-50*50 | Area | 0.6m2/PCS, 1m2/PCS, 1.9m2/PCS, 2m2/PCS |
| Length*Width | 1070*562mm, 1550*650mm, 1550*1300mm, 1540*1225mm, 1550*1230mm | Grade | Carbon Steel, 0Cr13, 304, S32205, 0Cr25Ni20, 304L, 321, 309S, 316L, 420, 430 |
| Hexagonal Fixing | Yes | Heat Insulation | Yes |
| Lining Material | Yes | ||
| Highlight | 321 Stainless Steel Tortoise Shell Net,Twill Weave Technique Stainless Steel Punching Hole Wire Mesh,Height 8mm 10mm 20mm 25mm Hexagonal Hexsteel Mesh |
||
Product Description
321 Stainless Steel Tortoise Shell Net
Available in heights: 8mm, 10mm, 20mm, 25mm
Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length × Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length1550×width | |
Other available grades: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Enhanced fixing power with lining material through hexagonal design
- Effectively strengthens self-connecting property of lining material
- Prevents heat insulation layer from peeling off
- Increases fastness and durability of lining material
Applications
Used for pouring shapeless lining material and lining material fixing. We have supplied necessary metal parts for mainframe factories and various lining metal components for petrochemical manufacturers. Our products are widely used in petrochemical large devices, particularly as key lining parts conducive to catalyst applications.
