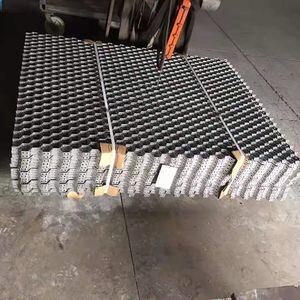

Grade 304 Stainless Steel Tortoise Sheet Net with 40*40mm Hole Size and 1.0 - 2.0mm Thickness for Boiler Applications
Product Details
| Material Type | Stainless Steel Plate | Weave Technique | Twill Weave |
|---|---|---|---|
| Wire Mesh Width | 1m | Technique | Punching |
| Nickel Content | 8% | Hole Size | 40*40mm |
| Thickness Range | 1.0 - 2.0mm | Height | 8-40mm |
| Area Per Piece | 0.6-2m² | Length | 1070-1550mm |
| Width | 562-1300mm | Grade Options | 304, 304L, 321, 309S, 316L, 420, 430 |
| Hexagonal Shape | Yes | Self Connecting | Yes |
| Heat Insulation | Yes | ||
| Highlight | Grade 304 Stainless Steel Tortoise Sheet Net,40*40mm Hole Size Stainless Steel Punching Hole Wire Mesh,1.0 - 2.0mm Thickness Hexagonal Hexsteel |
||
Product Description
Grade 304 Stainless Steel Tortoise Sheet Net 40×40mm
High-quality stainless steel tortoise sheet net with 40×40mm hole pattern and thickness options from 1.0mm to 2.0mm, designed for industrial lining applications.
Standard Product Specifications
| Grade | Height (mm) | Thickness (mm) | Hole Size (mm) | Whole Size | Area (m²/PCS) | Length×Width (mm) |
|---|---|---|---|---|---|---|
| Carbon Steel | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| Carbon Steel | 15 | 1.5 | 50×50 | 15-1.5-50×50 | 1 | 1550×650 |
| Carbon Steel | 15 | 1.75 | 50×50 | 15-1.75-50×50 | 1 | 1550×650 |
| Carbon Steel | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 2 | 1550×1300 |
| 0Cr13 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr13 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 0Cr13 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 8 | 1.2 | 40×40 | 8-1.2-40×40 | 0.6 | 1070×562 |
| 304 | 10 | 1.2 | 50×50 | 10-1.2-50×50 | 1 | 1550×650 |
| 304 | 20 | 1.75 | 50×50 | 20-1.75-50×50 | 1.88 | 1540×1225 |
| 304 | 25 | 1.75 | 50×50 | 25-1.75-50×50 | 1.9 | 1550×1230 |
| 304 | 40 | 1.75 | 50×50 | 40-1.75-50×50 | 1.9 | 1550×1230 |
| S32205 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.73 | 1340×590 |
| 0Cr25Ni20 | 10 | 1.2 | 40×40 | 10-1.2-40×40 | 0.6 | 1070×562 |
| 0Cr25Ni20 | 20 | 2.0 | 50×50 | 20-2.0-50×50 | Custom as request: length1550×width | |
Other Available Grades: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
- Enhanced fixing power with lining material through hexagonal design
- Strengthens self-connecting properties of lining materials
- Prevents heat insulation layer from peeling off
- Increases fastness and durability of lining materials
Industrial Applications
Specifically designed for pouring shapeless lining material and lining material fixing applications. Our products serve as essential metal components for:
- Mainframe factory equipment
- Petrochemical manufacturing facilities
- Large-scale petrochemical devices
- Catalyst systems as key lining parts
Our tortoise sheet nets are widely utilized in critical industrial applications where reliable lining material fixation is essential.
