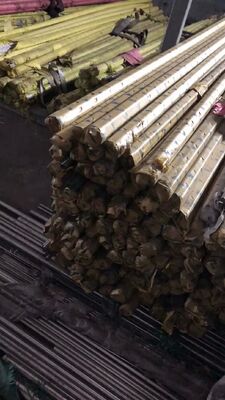

Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm

  • Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm
  • Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm
  • Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm
  • Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm
  • Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm
  • Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm
  • Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm
Certification AISI, ASTM
Minimum Order Quantity 100 kg
Price US $20-28 / kg
Product Details
Model NO. Monel 400 Shape Round
Technique Cold-Drawing Surface Treatment Bright
Specification OD 6-300mm Production Capacity 50000kgs
Size 5 Mm To 500 Mm Diameter 0.1 Mm To 100 Mm
Length 100 Mm To 3000 Mm Finish Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 Form Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging
Density 8.8 G/cm3 Melting Point 1350 °C (2460 °F)
Tensile Strength Psi - 80,000 , MPa - 550
Highlight

Cold-Drawing Technique Monel Bar

,

Bright Surface Treatment Monel 400 Alloy Bar

,

OD 6-300mm Nickel Alloy Bar
Leave a Message
Product Description
Monel Bar Monel 400 Alloy Bar

ASTM B164 UNS N04400/NS111 DIN 2.4360 Alloy 400 Monel 400 Round Steel Bar

  • MONEL ALLOY 400 Bar, ASTM B164 Monel 400 Round Bars, Monel UNS N04400 Bright Bar, 400 Monel Triangular Bar, Monel 28-2,5-1,5 Round Bar, Monel Alloy 400 Rods Suppliers
Monel 400 Round Bar Specifications
SpecificationsASTM B164 / ASTM SB164
DimensionsEN, DIN, JIS, ASTM, BS, ASME, AISI
Size5 mm To 500 mm
Diameter0.1 mm to 100 mm
Length100 mm To 3000 mm Long & Above
FinishBlack, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
ToleranceH8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients' requirements
FormRound, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Monel 400 Bars Product Types
Product TypeVariants
Monel 400 Bright BarMonel® 400 Bright Bar, 400 Monel Bright Bar, Monel Alloy 400 Bright Bar, UNS N04400 Monel Bright Bar, WERKSTOFF NR. 2.4360 Bright Bar, ASTM B164 400 Monel Bright Bar
Monel 400 Hex BarMonel® 400 Hex Bar, 400 Monel Hexagonal Bar, 400 Monel Alloy Hex Bar, UNS N04400 Monel Hexagonal Bar, ASTM B164 400 Monel Hex Bar
Monel 400 Square BarMonel® 400 Square Bar, 400 Monel Square Bars, 400 Monel Alloy Square Bar, UNS N04400 Monel Square Bar, WERKSTOFF NR. 2.4360 Square Bar, ASTM B164 400 Monel Square Bars
Monel 400 Rectangular BarMonel® 400 Rectangular Bar, 400 Monel Rectangular Bars, 400 Monel Alloy Rectangular Bar, UNS N04400 Monel Rectangular Bars, WERKSTOFF NR. 2.4360 Rectangular Bar, ASTM B164 400 Monel Rectangular Bar
Monel 400 Flat BarsAlloy 400 Flat Bar, 400 Monel Alloy Flat Bars, 400 Monel Flat Bars, UNS N04400 Monel Flat Bars, WERKSTOFF NR. 2.4360 Flat Bars, ASTM B164 400 Monel Flat Bars
Monel 400 Polished BarMonel® 400 Polished Bar, 400 Monel Polished Bars, 400 Monel Alloy Polished Bar, UNS N04400 Monel Polished Bars, WERKSTOFF NR. 2.4360 Polished Bar, ASTM B164 400 Monel Polished Bar
Monel 400 Threaded BarAlloy 400 Threaded Bar, 400 Monel® Threaded Bars, 400 Monel Alloy Threaded Bar, UNS N04400 Monel Threaded Bar, WERKSTOFF NR. 2.4360 Threaded Bar, ASTM B164 400 Monel Threaded Bar
Other Round Bar Products
General Specifications
Product TypesRound Bar, Square Bar, Hexagon Bar, Flat Bar
SurfaceBlack or Bright or Pickling White
StandardSUS, AISI, DIN
Manufacture TechniqueHot Rolling, Cold-drawing
Diameter5~500mm
Length<=12M or As Per Client's Requirements
Diameter ToleranceH7 H9 H10 H11
Available Alloy Standards
StandardAlloy Types
ASTM/ASME SB 446Alloy 625/UNS N06625
ASTM/ASME SB164Monel 400/Alloy 400/UNS N04400
ASTM/ASME SB 408Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 800/Incoloy 800/UNS N08800, Alloy 800H/Incoloy 800H/UNS N08810
ASTM/ASME SB 649Alloy 925/Incoloy 925/UNS N09925, Alloy 926/Incoloy 926/UNS N08926, Alloy 31/UNS N08031
ASTM/ASME SB 166Alloy 600/Inconel 600/UNS N06600, Alloy 601/Inconel 601/UNS N06601
ASTM/ASME SB160Alloy 200/UNS N02200, Alloy 201/UNS N02201
ASTM/ASME SB 472Hastelloy C-276/UNS N10276, Alloy 926/Incoloy 926/UNS N08926, Alloy 31/UNS N08031, Alloy 20/N08020, Alloy C-22/Hastelloy C-22/N06022, Alloy 600/Inconel 600/UNS N06600
ASTM/ASME SB 473Alloy 20/UNS N08020
ASTM/ASME SB 574Hastelloy C-276/UNS N10276
ASTM/ASME SB 637Alloy 718/Inconel 718/N07718
Stainless Steel ASTM/ASME SA 276304/SUS304/UNS S30400, 304L/UNS S30403, 316/UNS S31600, 316Ti/UNS S31635, 316H/UNS S31609, 316L/UNS S31603, 310S/UNS S31008, 321/UNS S32100, 321H/UNS S32109, 347/UNS S34700, 347H/UNS S34709, F51/S31803/2205, F53/S32750/2507, F55/S32760, F44/S31254/254SMO, S31050/1.4466, F904L/N08904
ASTM/ASME SA 479304H/UNS S30409
Carbon Steel and Low Alloy Steel ASTM/ASME SA 694F42, F46, F48, F50, F52, F56, F60, F65, F70
ASTM/ASME SA 350LF2, LF3, ASTM A105/ASME SA105
Monel 400 Alloy Technical Data
Chemical Composition
GradeCMnSiCuFeNiS
Monel 4000.30 max2.00 max0.50 max28.00 - 34.002.50 max63.00 min0.024 max
Mechanical Properties
DensityMelting PointTensile StrengthYield Strength (0.2% Offset)Elongation
8.8 g/cm³1350 °C (2460 °F)Psi - 80,000, MPa - 550Psi - 35,000, MPa - 24040%
Equivalent Grades
StandardWerkstoff Nr.UNSJISGOSTBSAFNOREN
Monel 4002.4360N04400NW 4400МНЖМц 28-2,5-1,5NA 13NU-30MNiCu30Fe
Quality Assurance & Testing

We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirements like NACE MR 01075. Ferrite content as per norms if requested by clients.

Certification & Documentation
  • EN 10204/3.1B
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report
Material Testing Services
  • Mechanical Testing Such as Tensile of Area
  • Hardness Test
  • Chemical Analysis - Spectro Analysis
  • Positive Material Identification - PMI Testing
  • Flattening Test
  • Micro and Macro Test
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
Documentation Provided
  • Commercial Invoice which includes HS Code
  • Packing List including net weight and gross weight, number of boxes, Marks and Numbers
  • Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
  • Fumigation Certificates
  • Raw Material Test Reports
  • Material Traceability Records
  • Quality Assurance Plan (QAP)
  • Heat Treatment Charts
  • Test Certificates certifying NACE MR0103, NACE MR0175
  • Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
  • Guarantee Letter
  • NABL approved Laboratory Test Reports
  • Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
  • Form A for the purposes of the Generalized System of Preferences (GSP)
Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm 0 Monel 400 Alloy Bar with Cold-Drawing Technique and Bright Surface Treatment in OD 6-300mm 1
