Cold-Drawn Hastelloy C276 Seamless Tube with Polished Surface and OD 6-630mm for Corrosion Resistance
Product Details
| Model NO. | Hastelloy C276 | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Polished |
| Outer Diameter | 3.18mm-101.6mm | Wall Thickness | 0.5mm-20mm |
| Length | 6m | Standard | ASTM B169; ASTM B167; ASTM B444; ASTM B622 |
| Nickel Content | Balance | Chromium Content | 14.5-22.5% |
| Molybdenum Content | 12.5-14.5% | Tensile Strength | 690 MPa |
| Yield Strength | 283 MPa | Elongation | 40% |
| Hardness | Not Specified | ||
| Highlight | Cold-Drawn Hastelloy C276 Seamless Tube,Polished Surface UNS N10276 Tubing,OD 6-630mm Alloy C276 Pipe |
||
Product Description
Cold Rolled Nickel Alloy C276 Pipe/Tube
Alloy C276 Seamless Tube, UNS N10276 Tubing Hastelloy C276 Pipe Fittings with wall thickness range of 0.5mm - 20mm
Material Overview
C-276 Hastelloy is a nickel-based alloy of nickel-molybdenum-chromium-iron-tungsten and is one of the most corrosion-resistant modern metal materials. It provides excellent resistance to wet chlorine, various oxidizing chlorides, chlorinated salt solutions, sulfuric acid, and oxidizing salts, with good corrosion resistance in low and medium temperature hydrochloric acid.
This alloy has been widely used in harsh corrosive environments for over three decades, including chemical processing, petrochemical, flue gas desulfurization, pulp and paper manufacturing, environmental protection, and other industrial fields.
Technical Specifications
| Material Grade | UNS N10276, UNS N10001, UNS N10665, UNS N10675, UNS N06022, N08800, N08825, N04400 |
|---|---|
| Outer Diameter | 3.18mm - 101.6mm |
| Wall Thickness | 0.5mm - 20mm |
| Length | Standard 6m fixed length, customizable per customer requirements |
| Standard | ASTM B169; ASTM B167; ASTM B444; ASTM B622 |
| Process Method | Cold Drawn or Cold Rolled |
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Ni | Balance | 22.5 |
| Cr | 20.0 | 22.5 |
| Mo | 12.5 | 14.5 |
| Fe | 2.0 | 6.0 |
| W | 2.5 | 3.5 |
| Co | - | 2.5 |
| C | - | 0.015 |
| Mn | - | 0.50 |
| Si | - | 0.08 |
| P | - | 0.020 |
| S | - | 0.020 |
| V | - | 0.35 |
Mechanical Properties
| Property | Minimum Value |
|---|---|
| Ultimate Tensile Strength | 100 KSi (690 MPa) |
| Yield Strength (0.2% Offset) | 41 KSi (283 MPa) |
| Elongation in 2 in. (50.8mm) | 40% |
Applications & Advantages
Primary Applications
- Chemical processing industry
- Petrochemical equipment
- Flue-gas desulfurization plants
- Organic chloride process equipment
- Pulp and paper production
- Environmental protection systems
- Marine engineering
- Waste treatment facilities
- Pollution control equipment
Key Advantages
C276 alloy is suitable for numerous chemical process industries containing both oxidizing media and reductants. The high molybdenum and chromium content provides excellent resistance to chloride corrosion, while tungsten enhances overall corrosion resistance. This alloy is one of the few materials capable of resisting corrosion from wet chlorine, hypochlorite, and chlorine dioxide, with outstanding performance against high concentration chlorates such as iron chloride and copper chloride.
Additional Size Specifications
| Dimension | Range |
|---|---|
| Outer Diameter (OD) | 5-420mm |
| Wall Thickness (WT) | 0.5-50mm |
| Maximum Length | 12000mm |
Quality Assurance & Terms
| Item | Description |
|---|---|
| Price Terms | FOB, CFR, CIF or negotiable |
| Payment Methods | T/T, LC or negotiable |
| Delivery Time | 30 working days after deposit receipt (based on order quantity) |
| Packaging | Iron case, woven bag, or customized per requirements |
| Quality Documentation | Mill Test Certificate supplied with shipment, Third Party Inspection acceptable |

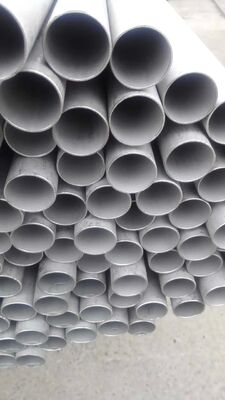

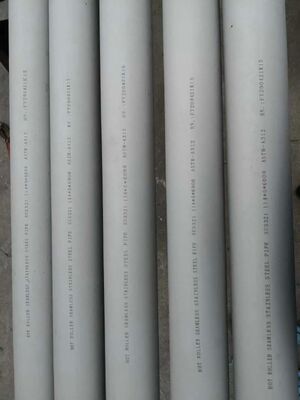

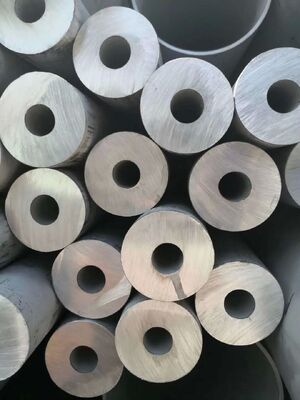

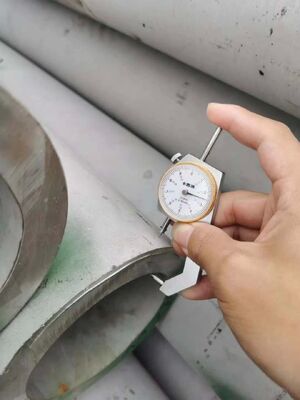

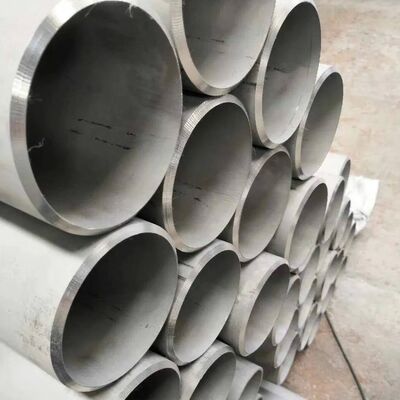

Product Images
