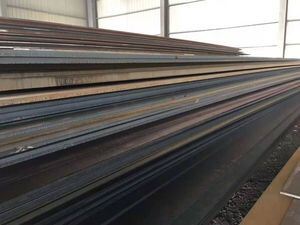

CCS Certified Hot Rolled High Tensile Strength AH36 DH36 EH36 Ship Steel Plate for Marine Vessel Construction

Minimum Order Quantity	1 Ton
Price	US $680-1,450 / Ton

Product Details

Model NO.	Ah36 Dh36 Eh36	Technique	Hot Rolled
Width	100-3000mm	Production Capacity	500000kgs
Length	4m-12m Or As Required	Thickness	3mm-300mm Or As Required
Thickness Tolerance	±0.15mm	Material	NVA,NVD,A,A32,A36,AH32,AH36,B,16MnL,Q235,Q235B,EH32,EH36,CCS-A,CCS-B,CCSA,CCSB,CCS,CCSD,CCSE,D32,D36,DH32,DH36,GL-B,GL-D,GL-E,E32,E36
Surface Treatment	Clean, Blasting And Painting	Yield Strength	355 MPa
Tensile Strength	490-620 MPa	Elongation	21%
Min Impact Energy	34J (-40°C)	Specific Gravity	7.8
Chemical Composition	C:0.180%, Si:0.1-0.5%, Mn:0.90-1.6%, P:0.035%, S:0.035%, V:0.05-0.10%, AL:0.015%, Cr:0.200%, Cu:0.350%, Mo:0.080%, Nb:0.02-0.05%, Ni:0.400%, Ti:0.020%
Highlight	CCS Certified Ship Steel Plate , Hot Rolled Marine Steel Plate , High Tensile Strength Shipbuilding Steel Plate

Leave a Message

Product Description

AH36 DH36 EH36 Ship Plate ABS Ship Plate Steel Sheet

CCS Certified AH36 DH36 EH36 Ship Steel Board Plate for marine vessel ship building and boat construction.

Standard: AISI, ASTM, BS, DIN, GB, JIS

Grade: AH32, DH32, EH32, AH36, DH36

Width: 25-3000mm

Length: 10000MM or Customized

Technique: Hot Rolled

Surface Treatment: Coated, Clean, Blasting, Painting

Product Specifications

Length	4m-12m or as required
Width	0.6m-3m or as required
Thickness	3mm-300mm or as required
Thickness Tolerance	±0.15mm
Minimum Order Quantity	25 tons (sample orders accepted)
Shipment Time	15-20 workdays after receiving deposit or L/C
Annual Capacity	250,000 tons/year

ABS EH36 Shipbuilding Steel

ABS EH36 steel is a high tensile strength marine steel engineered for optimal long-lived shipbuilding applications. With a specific gravity of 7.8, these grades feature yield strength of 51,000 psi (355 MPa) and ultimate tensile strength of 71,000-90,000 psi (490-620 MPa).

Applications

Container and bulk cargo vessels
Cruise ships, ferries and yachts
Ship hull construction and repair
Offshore oil drilling platforms
Platform pipe joints and components

ABS EH36 Chemical Composition

Element	Content (%)
C	0.180
Si	0.1-0.5
Mn	0.90-1.6
P	0.035
S	0.035
V	0.05-0.10
Al	0.015
Cr	0.200
Cu	0.350
Mo	0.080
Nb	0.02-0.05
Ni	0.400
Ti	0.020

ABS EH36 Mechanical Properties

Thickness (mm)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Impact Energy
8mm-50mm	Min 355	490-620	21%	34J at -40°C
51mm-70mm	Min 355	490-620	21%	41J at -40°C
71mm-100mm	Min 355	490-620	21%	50J at -40°C

Quality Assurance: ISO 9001 certified manufacturer with quality guaranteed products, on-time delivery, and comprehensive after-sales warranty. Large inventories maintained in various grades including stainless, duplex, and nickel alloys.
