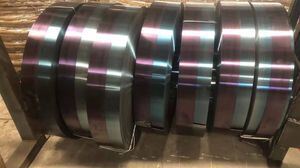

65Mn Cold Rolled Steel Strip with HRC 40 Hardness and 0.3mm-2.5mm Thickness for Spring Applications

Minimum Order Quantity	1 Ton
Price	US $780-1,150 / Ton

Product Details

Model NO.	65mn	Edge Type	Slit Edge
Thickness Range	0.01-3mm	Thickness Tolerance	+/-0.015mm
Width Range	10mm - 900mm	Inner Diameter	200mm/500mm (slit Edge: 508mm)
Coil Weight	0.1~3.5MT	Min Order	20MT
Steel Grade	65Mn,50CrV,60Si2MnA,62Si2MnA	Delivery State	Surface Polishing+Blueing
Tensile Strength	825~925 MPA (65Mn)	Yield Strength	520~690 MPA (65Mn)
Elongation	14~21.5% (65Mn)	Reduction Area	More Than 10% (65Mn)
Hardness	Hot-rolled 240~270HB (65Mn)
Highlight	HRC 40 Cold Rolled Steel Strip , 0.3mm-2.5mm Spring Steel Strip , Slit Edge 65Mn Steel Strip

Leave a Message

Product Description

Cold Rolled Carbon Steel Sheet / Spring Steel Strip 65Mn Heat Treatments HRC 40

High-quality spring steel strip 65Mn cold rolled steel with heat treatments, available in various surface finishes and hardness specifications.

Available Finishes

Bright Steel Strip
Black Annealed Steel Strip
Cold Hardened Steel Strip

Product Specifications

Quality/Industry: Temper Rolled (Full Hard, Half Hard, Quarter Hard), Drawing, Deep Drawing, Extra deep drawing, Mediums High Carbon Or equivalent materials.
Available Standards: BS/DIN/ASTM/JIS and equivalent
Thickness: 0.3mm-2.5mm (Tolerance: ±0.015mm)
Width: 10mm - 900mm
I.D.: 200mm/500mm (slit edge: 508mm)
Coil Weight: 0.1~3.5MT
Minimum Order: 20MT per size

Packing Details

Mill Edge: 4 steel strapping and 2 wire rod through coil eye, 1 steel strapping on coil circumference; 3-4 strips bundled into larger coil, max. 3MT per package
Slit Edge: 6 steel strapping through coil eye, 1 steel strapping on coil circumference; 3-4 strips bundled with edge protection; max. 3MT per package

Spring Steel Strip Specifications

Commodity: Spring steel strip
Type: High quality and strength steel
Steel Grades: 65Mn, 50CrV, 60Si2MnA, 62Si2MnA
Specifications: Thickness: 0.2-4.0mm, Width: 3-400mm (customizable)
Delivery State: Surface Polishing + Blueing

Applications

Appliances parts
Car and motorcycle components
Watches and instrument parts
Optical communication components
Medical equipment parts
Motors with shaft parts
Laser printer parts
Office supplies parts
Sanitary products

Chemical Composition

Grade	C	Si	Mn	P	S	Cr	Ni	Cu
65Mn	0.62~0.70	0.17~0.37	0.90~1.20	≤0.035	≤0.035	≤0.25	≤0.25	≤0.25
50CrV	0.46~0.54	0.17~0.37	0.50~0.80	≤0.030	≤0.030	0.80~1.10	≤0.35	≤0.25
60Si2MnA	0.52~0.60	1.5~2.0	1.00~1.30	≤0.035	≤0.035	≤0.35	≤0.35	≤0.25

Mechanical Properties

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation	Reduction of Area	Hardness
65Mn	825~925	520~690	14~21.5	>10	Hot-rolled 240~270HB
50CrV	≥1274(130)	≥1274(130)	≥10	≥40	Hot-rolled ≤321HB; Cold drawn+Heat treatment ≤321HB
60Si2MnA	≥1372(140)	≥1225(125)	≥5	≥30	Hot-rolled ≤321HB; Cold drawn+Heat treatment ≤321HB

Our company is committed to developing with customers, utilizing first-class hardware and software with a top-tier team to manufacture products that maximize value and ensure customer satisfaction.
