Monel K500 Bar and Alloy 500 Rod with Diameter 4-300mm, High Strength and Corrosion Resistant for Marine and Aerospace Applications
Product Details
| Diameter Range | 4mm - 300mm | Length | Customizable (3m Or 6m) |
|---|---|---|---|
| Surface Finish | Bright, Polished, Black | Alloy Type | Monel K500 (Nickel-Copper) |
| Delivery Condition | Cold Drawn, Annealed | Nickel Content | 63.0% - 70.0% |
| Copper Content | 28.0% - 33.0% | Aluminum Content | 2.3% - 3.15% |
| Tensile Strength | 1100 - 1300 MPa | Yield Strength | 550 - 900 MPa |
| Elongation | 25% (minimum) | Hardness | Rockwell B 90-95 |
| Density | 8.8 G/cm³ | Thermal Expansion | 13.4 µm/m°C |
| Modulus Of Elasticity | 175,000 MPa | ||
| Highlight | Diameter 4-300mm Monel K500 Bar,Corrosion Resistant Monel Alloy 500 Rod,High Strength Nickel-Copper Alloy Bar |
||
Product Description

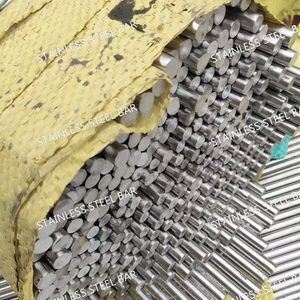

Monel K500 Bright Bar and Black Bars
Monel K500 is a nickel-copper alloy that combines high strength and excellent resistance to corrosion, making it a popular choice in a variety of industries. This alloy, identified as Alloy 500, is specifically designed for applications requiring high mechanical strength and resistance to seawater corrosion. Available in both bright bars and black bars with diameters ranging from 4mm to 300mm, Monel K500 rods are ideal for marine, chemical, and aerospace applications.
Product Specifications
| Product Type | Monel K500 Bright Bar and Black Bar |
| Diameter Range | 4mm - 300mm |
| Length | Customizable (typically 3m or 6m lengths) |
| Form | Bright Bar, Black Bar, Rod |
| Surface Finish | Bright, Polished, Black |
| Alloy | Monel K500 (Nickel-Copper Alloy) |
| Packaging | Wooden crates, Pallets, Shrink-wrapped |
| Delivery Condition | Cold Drawn, Annealed |
Material Description
Chemical Composition of Monel K500
Monel K500's remarkable corrosion resistance and strength are due to its carefully balanced chemical composition:
| Element | Percentage Range |
|---|---|
| Nickel (Ni) | 63.0% - 70.0% |
| Copper (Cu) | 28.0% - 33.0% |
| Iron (Fe) | 2.5% Max |
| Manganese (Mn) | 1.0% Max |
| Carbon (C) | 0.30% Max |
| Silicon (Si) | 0.50% Max |
| Sulfur (S) | 0.024% Max |
| Phosphorus (P) | 0.02% Max |
| Aluminum (Al) | 2.3% - 3.15% |
Monel K500's composition is primarily based on nickel and copper, with additions of aluminum and titanium, which significantly improve its hardness and strength without compromising its corrosion resistance. The alloy also features good resistance to stress-corrosion cracking, making it highly durable in hostile environments.
Mechanical Properties of Monel K500
Monel K500 exhibits impressive mechanical properties that make it suitable for high-performance applications:
| Property | Value |
|---|---|
| Tensile Strength | 1100 - 1300 MPa |
| Yield Strength | 550 - 900 MPa |
| Elongation | 25% (minimum) |
| Hardness | Rockwell B 90-95 |
| Modulus of Elasticity | 175,000 MPa |
| Poisson's Ratio | 0.32 |
| Density | 8.8 g/cm³ |
| Coefficient of Thermal Expansion | 13.4 µm/m°C |
These mechanical properties demonstrate Monel K500's ability to perform under extreme conditions. Its high tensile and yield strength, along with good elongation, make it suitable for heavy-duty applications. The alloy's hardness ensures it retains its strength and shape under stress.
Product Standards
Monel K500 bars comply with various international standards, ensuring quality and reliability:
- ASTM B164 - Standard Specification for Nickel-Copper Alloy Bars, Rods, and Forgings
- ASME SB164 - Specification for Nickel-Copper Alloy Bars and Rods
- DIN 17744 - Nickel-Copper Alloys (Monel) Round Bars
- ISO 9001 - Quality Management Systems
These standards ensure that the Monel K500 rods meet all necessary mechanical, chemical, and dimensional requirements for their intended applications.
Key Features
- High Corrosion Resistance - Excellent resistance to corrosion in a wide range of aggressive environments, including seawater, chemical environments, and high-temperature applications
- Superior Strength - High strength achieved through the addition of aluminum and titanium, ideal for structural applications
- Good Wear Resistance - Excellent resistance to wear and abrasion in applications with constant movement or contact
- Non-Magnetic - Suitable for use in electromagnetic and marine applications where magnetism could cause interference
- Resistance to Stress Corrosion Cracking - Essential for high-stress applications in marine and industrial environments
- Good Machinability - Relatively easy to machine despite high strength, ensuring it can be shaped into custom parts
Similar Alloys
Monel K500 is often compared with other similar alloys that offer comparable corrosion resistance and strength:
- Monel 400 - Nickel-copper alloy with excellent corrosion resistance in seawater, though Monel K500 offers higher strength
- Inconel 625 - High-performance nickel-based alloy for extreme environments, while Monel K500 is more suitable for lower-temperature applications
- Hastelloy C276 - Known for resistance to a wide range of chemicals, while Monel K500 is more suitable for marine and structural applications
Applications
Monel K500 is used in industries where high strength, excellent corrosion resistance, and low maintenance are critical:
- Marine Applications - Propeller shafts, pumps, valves, and marine hardware due to excellent resistance to seawater corrosion
- Aerospace Industry - High-stress components including landing gears and fasteners exposed to harsh environmental conditions
- Chemical Processing - Valve stems, pumps, and heat exchangers in chemical plants
- Oil and Gas - Offshore drilling rigs, piping systems, and critical components exposed to aggressive environments
- Nuclear Industry - Reactor coolant systems and reactor internals due to non-magnetic properties and corrosion resistance
Packaging and Shipping
Monel K500 bars are carefully packaged and shipped to ensure safe delivery:
- Packaging Options - Shrink wrapping, wooden boxes/crates, palletized
- Shipping Methods - Sea freight, air freight, or land-based transport based on customer location and urgency
All orders are carefully inspected and packed to ensure safe delivery.
Frequently Asked Questions
What is the difference between Monel K500 and Monel 400?
Monel K500 has higher strength and hardness compared to Monel 400, thanks to the addition of titanium and aluminum. However, both alloys offer excellent corrosion resistance in seawater and chemical environments.
What are the common forms of Monel K500 available?
Monel K500 is available in rods, bars (bright and black), and custom shapes. It is available in diameters from 4mm to 300mm, with custom lengths available.
How do I machine Monel K500?
Monel K500 is relatively easy to machine compared to other high-strength alloys. Standard cutting tools and machining techniques can be used. However, it is recommended to use tools made from carbide for better performance.
Can Monel K500 be welded?
Yes, Monel K500 can be welded using standard welding techniques such as TIG and MIG welding. However, the alloy should be preheated to prevent cracking during the welding process.
What are the shipping options for Monel K500 bars?
Shipping can be done via air, sea, or road freight, depending on the customer's location and requirements. Lead times and shipping costs may vary based on order size and destination.
