Hastelloy G35 Nickel Alloy Plate - Corrosion Resistant High-Temperature Strength 1.0 - 80.0mm Thickness Cold Rolled and Hot Rolled
Product Details
| Model NO. | Hastelloy G35 | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Pickling |
| Thickness | 0.5 - 80.0mm | Standard Size | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm |
| Cold Rolled Thickness | 0.5 - 3.0mm | Hot Rolled Thickness | 4.0 - 30.0mm |
| Surface Finish | 2B NO.1 | Tensile Strength | 620 MPa (min) |
| Yield Strength | 275 MPa (min) | Elongation | 30% (min) |
| Hardness | 90 HRB (max) | Nickel Content | Balance |
| Chromium Content | 19.5% - 21.5% | ||
| Highlight | Corrosion Resistant Hastelloy G35 Plate,High-Temperature Strength Nickel Alloy Plate,1.0 - 80.0mm Thickness Alloy 2.4643 Plate |
||
Product Description

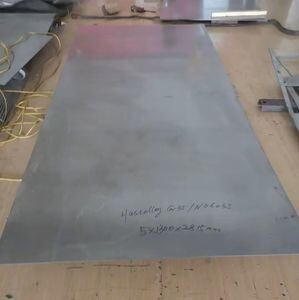

Hastelloy G35 / Alloy 2.4643 / UNS N06035 Nickel Alloy Plate
High-performance nickel alloy plates available in thickness range 1.0 - 80.0mm, offered in both cold rolled and hot rolled variants for industrial applications.
Product Specifications
| Products Name | Hastelloy G35 Nickel Alloy Sheet Plate |
|---|---|
| Thickness | Cold rolled: 0.5 - 3.0mm | Hot rolled: 4.0 - 30.0mm |
| Standard Size | 1000×2000mm, 1219×2438mm, 1219×3048mm, 1500×6000mm |
| Surface | 2B NO.1 |
| MOQ | 50 kgs |
| Service | Cutting, Surface Finishing |
| Packing | Waterproof paper and wooden pallets |
| Loading Port | Shanghai Port |
| Price Term | FOB, CFR, CIF, EXW |
| Payment Term | 30% TT in advance, 70% TT balance against copy of B/L |
Material Overview
Hastelloy G35 (Alloy 2.4643 / UNS N06035) is a highly corrosion-resistant nickel-based alloy engineered for demanding environments. This alloy provides exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking, making it ideal for chemical processing, aerospace, and power generation applications.
Key Features
- High corrosion resistance to oxidation, carburization, and corrosion in reducing/oxidizing environments
- Excellent high-temperature strength for extreme condition applications
- Good fabricability with easy welding, machining, and fabrication capabilities
- Versatile plate forms available in cold-rolled and hot-rolled variants
Chemical Composition
- Nickel (Ni): Balance
- Chromium (Cr): 19.5% - 21.5%
- Molybdenum (Mo): 6.0% - 7.0%
- Iron (Fe): 3.0% max
- Cobalt (Co): 1.0% max
- Manganese (Mn): 0.5% max
- Silicon (Si): 0.5% max
- Copper (Cu): 0.5% max
- Tungsten (W): 1.0% max
- Carbon (C): 0.015% max
Mechanical Properties
- Tensile Strength (Room Temperature): 620 MPa (min)
- Yield Strength (Room Temperature): 275 MPa (min)
- Elongation (at break): 30% (min)
- Hardness: 90 HRB (max)
Applications
Hastelloy G35 plates are extensively used in:
- Chemical Processing: Equipment for handling corrosive chemicals and acids
- Aerospace: High-temperature components such as gas turbines
- Power Generation: Heat exchangers and reactors in extreme thermal conditions
- Marine and Petrochemical: Components requiring high strength and corrosion resistance in saltwater or acidic environments
Available Product Forms
- Cold Rolled Plate: Smooth surface finish with tight dimensional tolerance for precision applications
- Hot Rolled Plate: Excellent strength and wear resistance where mechanical properties are critical
Related Material Grades
Other Hastelloy Grades: C22, C4, X, C276, G35
Monel: 400, K500
Incoloy: 800, 800H, 800HT, 825, 925
Inconel: 600, 601, 617, 625, 716, 718
Stainless Steel: 201, 202, 301, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 409L, 410, 410S, 420J1, 420J2, 430, 431, 436L, 439, 440A/B/C, 441, 443, 444, 2205, 2507, 904L, 254SMO, 253MA
Monel: 400, K500
Incoloy: 800, 800H, 800HT, 825, 925
Inconel: 600, 601, 617, 625, 716, 718
Stainless Steel: 201, 202, 301, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 409L, 410, 410S, 420J1, 420J2, 430, 431, 436L, 439, 440A/B/C, 441, 443, 444, 2205, 2507, 904L, 254SMO, 253MA
Why Choose Hastelloy G35
Outstanding performance in corrosive and high-temperature conditions • Cost-effective solution for durable material requirements • Versatile plate options for various fabrication methods • Custom cutting and fast delivery available
Contact us for technical support, custom requirements, and pricing information.
