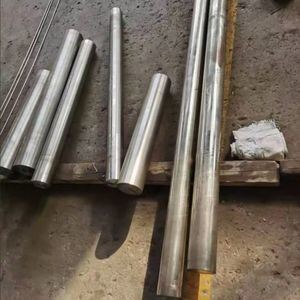

Bright Polish Incoloy 800H Round Bar Hot Rolled Alloy UNS N08810 Stainless Steel Bars 5-300mm
Product Details
| Model NO. | 800H | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Pickling |
| Specification | 5-300mm | Diameter Range | 6mm - 300mm |
| Standard Lengths | 3m, 6m, Or Cut-to-length | Surface Roughness | ≤0.8 μm Ra |
| Reflectivity | ≥85% Light Reflection | Dimensional Accuracy | ±0.05mm Tolerance |
| Tensile Strength | 450 MPa (min) | Yield Strength | 180 MPa (min) |
| Elongation | 35% (min) | Hardness | 140 - 190 HB |
| Density | 7.9 G/cm³ | ||
| Highlight | Bright Polish Incoloy 800H Round Bar,Hot Rolled Alloy UNS N08810 Round Bar,5-300mm Stainless Steel Bars |
||
Product Description
Bright Polish Incoloy 800H Round Bar / Alloy UNS N08810 Round Stainless Steel Bars
Premium high-performance alloy round bars with bright polish finish, designed for applications demanding exceptional heat resistance and aesthetic precision. These stainless steel bars combine robust mechanical properties with a mirror-like surface finish for industries where functionality meets visual and hygienic requirements.
Product Specifications
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|
| Grade | Monel series: 400 K500 Inconel series: 600 601 625 718 725 Incoloy series: 800 800H 825 925 Hastelloy series: B,B2,B3,C,C-276,C-4,C-22 Pure: Ni200, Ni201 |
| Specifications | Round bar: Diameter: 4-300mm Flat bar: Thickness: 1.0-100mm, Width: 1-1500mm Square bar: Size: 4*4-100*100mm |
| Length | 2m, 5.8m, 6m, or as required |
| Surface | Black, peeled, polishing, bright, sand blast, hair line, etc. |
| Price Term | Ex-work, FOB, CFR, CIF, etc. |
| Delivery Time | Standard size is in stock, prompt delivery or as order's quantity |
Material Description
Incoloy 800H (UNS N08810) round bars with bright polish finish represent the pinnacle of high-performance alloy engineering. These premium stainless steel bars deliver uncompromising performance in extreme environments while maintaining exceptional aesthetic quality.
Chemical Composition
The exceptional characteristics of Incoloy 800H (UNS N08810) stem from its precisely balanced chemical composition, ensuring stability across a wide temperature range and resistance to oxidation, carburization, and creep deformation.
| Element | Composition Range (%) | Primary Function |
|---|---|---|
| Nickel (Ni) | 30.0 - 35.0 | Maintains austenitic structure at high temperatures; prevents embrittlement |
| Chromium (Cr) | 19.0 - 23.0 | Forms protective oxide layer; resists oxidation and corrosion |
| Iron (Fe) | Balance | Provides structural base while optimizing cost-efficiency |
| Carbon (C) | 0.05 - 0.10 | Enhances creep strength through carbide formation |
| Aluminum (Al) | 0.15 - 0.60 | Works with titanium to form strengthening precipitates |
| Titanium (Ti) | 0.15 - 0.60 | Stabilizes carbide formation; Al+Ti sum controlled at 0.85-1.20% |
| Manganese (Mn) | ≤1.50 | Aids in deoxidation during manufacturing |
| Silicon (Si) | ≤1.00 | Improves high-temperature oxidation resistance |
| Sulfur (S) | ≤0.015 | Minimized to prevent hot working issues |
| Phosphorus (P) | ≤0.030 | Controlled to avoid brittleness |
Mechanical Properties
Bright polish Incoloy 800H round bars maintain exceptional mechanical integrity across a broad temperature spectrum, from cryogenic conditions to extreme heat.
| Property | Room Temperature | At 815°C (1500°F) |
|---|---|---|
| Tensile Strength | 450 MPa (min) | 200 MPa (min) |
| Yield Strength (0.2% offset) | 180 MPa (min) | 100 MPa (min) |
| Elongation | 35% (min) | 25% (min) |
| Hardness (Brinell) | 140 - 190 HB | - |
| Modulus of Elasticity | 205 GPa | 165 GPa |
| Density | 7.9 g/cm³ | 7.8 g/cm³ |
| Melting Range | 1300 - 1350°C | - |
Bright Polish Finish Advantages
Our UNS N08810 round bars undergo specialized bright polishing that creates a smooth, reflective surface with numerous functional benefits beyond aesthetics.
| Feature | Specification | Advantage |
|---|---|---|
| Surface Roughness | ≤0.8 μm Ra | Minimizes friction; reduces material buildup |
| Reflectivity | ≥85% light reflection | Enhances heat dissipation in radiant environments |
| Corrosion Resistance | Improved passivation layer | Extends service life in aggressive environments |
| Cleanability | Non-porous surface | Ideal for hygienic applications; easy to sanitize |
| Dimensional Accuracy | ±0.05mm tolerance | Ensures precise fit in critical assemblies |
| Visual Appeal | Mirror-like finish | Suitable for visible components in architectural or equipment applications |
Applications
Bright polish Incoloy 800H round bars excel in industries requiring both high-temperature performance and superior surface quality:
- Chemical Processing: Reactors, mixing shafts, and valve components where corrosion resistance and easy cleaning are essential
- Aerospace: Engine components, exhaust systems, and structural parts requiring heat resistance and dimensional stability
- Power Generation: Boiler tubes, turbine parts, and heat exchanger components in gas and nuclear power plants
- Pharmaceutical: Processing equipment demanding hygienic surfaces and corrosion resistance
- Food Processing: Mixers, conveyors, and handling equipment requiring easy cleaning and chemical resistance
- Architectural: High-visibility structural components exposed to extreme temperatures and weather conditions
Manufacturing Excellence
Our bright polish UNS N08810 round bars undergo a rigorous production process to ensure uncompromising quality:
- Premium Raw Material Selection: Only certified Incoloy 800H billets meeting ASTM B408/ASME SB408 standards
- Precision Hot Working: Controlled forging and rolling to achieve initial dimensions and refine grain structure
- Solution Annealing: Heat treatment at 1040-1150°C followed by rapid cooling to optimize microstructure
- Cold Drawing: Further dimensional refinement and surface preparation
- Multi-stage Polishing: Progressive abrasive treatments from 120 to 600 grit, followed by buffing to achieve mirror finish
- Strict Quality Inspection: Comprehensive testing including ultrasonic examination, dimensional verification, and surface roughness measurement
Available Sizes and Custom Options
| Diameter Range | Standard Lengths | Finish Options |
|---|---|---|
| 6mm - 50mm | 3m, 6m, or cut-to-length | 2B, BA, No.4, Mirror (8K) |
| 51mm - 200mm | 3m, 6m | Mirror (8K), Super Mirror (12K) |
| 201mm - 300mm | Custom lengths up to 6m | Mirror (8K) |
Additional Customization Options
- Precision cutting to exact lengths with tight tolerances
- Specialized surface treatments for enhanced lubricity
- Heat treatment to meet specific mechanical property requirements
- Certification to industry-specific standards (NACE, ASME, etc.)
Quality Assurance and Compliance
All our bright polish Incoloy 800H round bars come with complete traceability and certification:
- Material Test Reports (MTRs) per EN 10204 3.1
- Compliance with ASTM B408, ASME SB408, and UNS N08810 specifications
- ISO 9001:2015 quality management system certification
- Non-destructive testing documentation when required
- Chemical composition verification through spectrometric analysis
