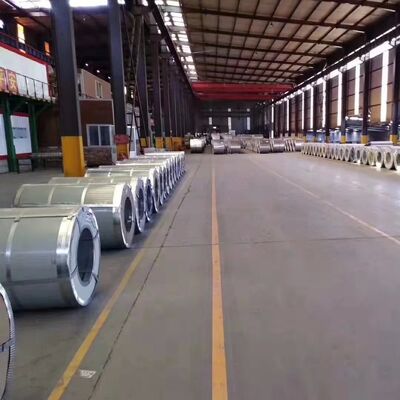

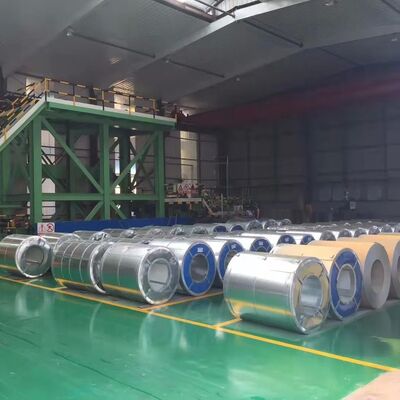

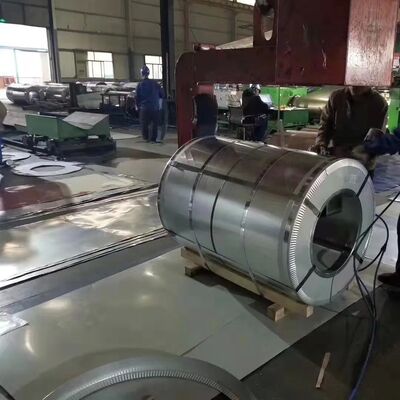

14 Gauge 3.8mm Thickness DX51 Grade Prepainted Galvanized Steel Coil (PPGI Coil) for Container Plate
Product Details
| Thickness | 0.12 - 3.0mm | Width | 914mm,1000mm,1200mm,1219mm,1220mm,1250mm |
|---|---|---|---|
| Coil Weight | 2Ton - 8 Tons | Coil Inner Diameter | 508mm Or 610mm |
| Zinc Coating | Z30 - Z275 | Aluminum Coating | AZ40 - AZ180 |
| Painting Type | PE,HDP,SMP,PVDF | Surface State | Regular Spangle / Non-spangle |
| Alloy Composition | 55% Aluminum, 43% Zinc, 2% Silicon | Heat Resistance | >300°C |
| Coating Thickness | 20-25um/5-10um | Coating Layers | Above 2 Layer, Bottom 1 Layer |
| Pattern Thickness | 0.17 - 1.5mm | Edge Type | Slit Edge |
| Specification Sizes | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | ||
| Highlight | 14 Gauge PPGI Coil,3.8mm Thickness Prepainted Galvanized Steel Coil,DX51 Grade Color Coated Steel Coil |
||
Product Description
PPGI HDG GI SECC DX51 14 Gauge 3.8mm Rolled Coil
High-quality prepainted galvanized steel coil designed for industrial applications requiring durability and corrosion resistance.
Product Specifications
| Product Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness | Galvanized: 0.12-3.0mm | Galvalume: 0.25-3.0mm | Prepainted: 0.12-1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2-8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized: Regular spangle/non-spangle Zinc Z30-Z275 | Galvalume: AZ40-AZ180 | Prepainted: PE, HDP, SMP, PVDF coatings |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Prepainted Galvanized Steel Coil (PPGI)

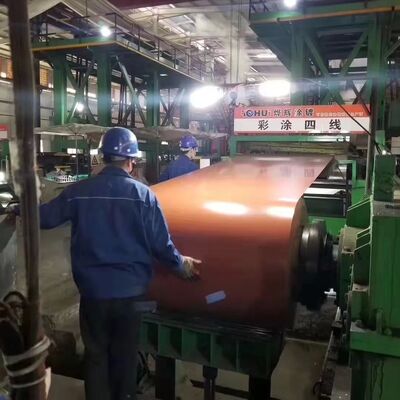

Color coated steel plate manufactured using cold rolled steel and galvanized steel as base plates. Features surface pretreatment including degreasing, cleaning, and chemical conversion treatment, followed by continuous roller coating and baking processes.
- Light weight with attractive appearance
- Excellent anti-corrosion performance
- Direct processing capability
- Applications: Construction, shipbuilding, vehicle manufacturing, home appliances, electrical industry
Galvanized Steel Coil
Zinc-coated steel sheet providing economical and effective rust prevention. Surface treatments include regular spangle, small spangle, and big spangles.
Quality standards ensure no plating defects, holes, cracks, scum, excessive plating thickness, abrasion, chromic acid dirt, or white rust.
Galvalume Steel Coil
Alloy composition: 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. Features dense tetrad junction crystal structure.
- Superior corrosion resistance - 3x better than pure galvanized sheet
- Attractive zinc flower surface decoration
- Excellent heat resistance up to 300°C
- Applications: Chimney tubes, ovens, illuminators, solar lampshades
Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Description | Color plate printed on galvanized or aluminized zinc substrates using transfer printing or film covering technology |
| Features | Bright colors, variety of patterns including marble grain, camouflage, wood grain |
| Size | Thickness: 0.17-1.5mm, Width: less than 1.5mm |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coil ID | Φ510mm/610mm |
| Applications | Household appliances, furniture, doors, windows, indoor and outdoor decoration |
Trade Information
| Minimum Order Quantity | 5 Tons |
|---|---|
| Payment Terms | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Profile
Modern enterprise specializing in high-end coating plate processing, sales, and distribution. Registered in Wuxi city, we offer comprehensive solutions for color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese metal plates.
Strategic partnerships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin Zongcheng Steel.
Applications: Steel structure building, metal building materials, steel silo, ventilation pipes, mechanical and electrical housing, home appliance plate, elevator, purification plate, automotive stamping parts.
Our experienced team (average 8+ years industry experience) provides customized supply solutions and technical services for medium and large engineering projects worldwide.
