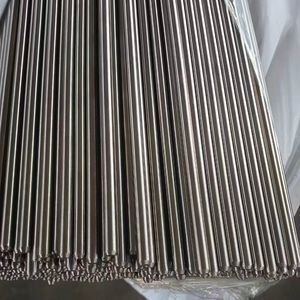

Corrosion Resistant Hastelloy Round Bar with High-Temperature Strength and Custom Cutting Options
Product Details
| Diameter | 10 - 350mm | Length | Custom Cutting Any Length As Request |
|---|---|---|---|
| Surface Treatment | Polished | Technique | Hot Rolled |
| Shape | Flat | Other Shape | Flat, Square, Hexagonal |
| Tensile Strength | 100 Ksi/689 MPa (C276) | Yield Strength | 45 Ksi/310 MPa (C276) |
| Temperature Resistance | Up To 2200°F (1204°C) | Corrosion Resistance | Oxidizing And Reducing Environments |
| Material Composition | Nickel-chromium-molybdenum (C276) | Surface Finish | 1.6-6.3 μm Ra (Cold Drawn) |
| Dimensional Tolerance | ±0.001 Inches (Cold Drawn) | Elongation | Minimum 40% (B-3) |
| Hardness | Rockwell B Or C | ||
| Highlight | Corrosion Resistant Hastelloy Round Bar,High-Temperature Strength Nickel Alloy Bar,Custom Cutting Super Alloy Bar |
||
Product Description
Hastelloy Round Bars: Product Specifications
| Products Name | Hastelloy round bar |
|---|---|
| Grade | Hastelloy C276, Hastelloy B-2, Hastelloy B-3, Hastelloy X, Hastelloy C-22, Hastelloy C-2000 |
| Diameter | 10 - 350mm |
| Length | Custom cutting any length as requested |
| Surface | Bright, Black, Pickling, Polishing |
| Brand | DELTA |
| Service | Cutting, Polishing |
| MOQ | 2 Kgs |
| Other Type | Bar, Strip, Coil, Pipe, Sheet, Plate, Wire, etc. |
| Packing | Wooden box |
| Loading Port | Shanghai Port |
| Price term | EXW, FOB, CIF, CFR |
| Deliver time | Within 12 days |
Hastelloy Alloys: Material Overview
Hastelloy alloys represent a family of high-performance nickel-based superalloys renowned for their exceptional resistance to corrosion, high-temperature strength, and durability in demanding industrial environments. Our round bar product line includes Hastelloy C276, Hastelloy B-2, Hastelloy B-3, and Hastelloy X—each engineered with unique chemical compositions to excel in specific applications.
Hastelloy C276 Round Bars
Hastelloy C276 is a nickel-chromium-molybdenum alloy with unmatched resistance to a broad spectrum of corrosive media. Its composition includes 54-60% nickel, 14-18% chromium, 15-17% molybdenum, 3-4.5% tungsten, and ≤2% iron.
- Corrosion Resistance: Withstands oxidizing and reducing environments including sulfuric acid, hydrochloric acid, chlorine gas, and seawater
- Mechanical Strength: Minimum tensile strength of 100 ksi/689 MPa and yield strength of 45 ksi/310 MPa at room temperature
- Fabricability: Easily machined, welded, and formed with specialized tooling
Hastelloy B-2 Round Bars
Hastelloy B-2 is optimized for resistance to strongly reducing environments, particularly those containing hydrochloric acid, with 65-70% nickel and 26-30% molybdenum composition.
- Reducing Environment Resistance: Excels in pure hydrochloric acid and other reducing acids
- Thermal Stability: Maintains properties at temperatures up to 1800°F (982°C)
- Mechanical Performance: Minimum tensile strength of 95 ksi (655 MPa) and yield strength of 40 ksi (276 MPa)
Hastelloy B-3 Round Bars
Hastelloy B-3 offers improved resistance to pitting, crevice corrosion, and stress corrosion cracking in mixed acid environments with refined composition including 65-70% nickel and 27-32% molybdenum.
- Mixed Environment Resistance: Outperforms B-2 in solutions containing both reducing acids and oxidizing contaminants
- Weldability: Superior post-weld corrosion resistance without need for heat treatment
- Mechanical Toughness: Minimum tensile strength of 100 ksi (689 MPa) with excellent ductility
Hastelloy X Round Bars
Hastelloy X is engineered for high-temperature strength and oxidation resistance with balanced composition including 47-54% nickel, 18-22% chromium, 17-20% iron, and 8-10% molybdenum.
- High-Temperature Performance: Maintains structural integrity at temperatures up to 2200°F (1204°C)
- Thermal Fatigue Resistance: Withstands repeated thermal cycling without cracking
- Fabricability: Easily welded, forged, and machined with good formability at elevated temperatures
Manufacturing Processes: Cold Drawn vs. Hot Rolled
Cold Drawn Hastelloy Round Bars
Cold drawing involves pulling bars through a die at room temperature, refining grain structure and improving surface quality.
- Precision dimensional tolerances with tight diameter control
- Superior smooth, polished surface finish (1.6-6.3 μm Ra)
- Enhanced mechanical properties with 10-20% increased tensile strength
- Grain refinement for improved toughness and corrosion resistance
Hot Rolled Hastelloy Round Bars
Hot rolling involves heating above recrystallization point and shaping through rolls, then cooling to room temperature.
- Cost-effective production for large-diameter bars
- Improved ductility and formability for easier fabrication
- Large size range from 0.5 inches to 24+ inches diameter
- Minimized internal stresses reducing warping or cracking risk
Application Areas
Chemical Processing Industry
Used in reactors, heat exchangers, and piping for processing sulfuric acid, hydrochloric acid, and chlorine-based chemicals.
Aerospace and Defense
Primary choice for gas turbine components, rocket engine parts, aircraft fuel systems, and hydraulic components.
Oil and Gas Industry
Deployed in downhole tools, wellhead components, subsea pipelines, and sour gas processing equipment.
Thermal Processing and Power Generation
Fabricated into furnace rollers, radiant tubes, heat exchanger tubes, and waste-to-energy plant components.
Medical and Pharmaceutical Industries
Produced into surgical instruments, implantable devices, and pharmaceutical processing equipment requiring corrosion resistance and sterility.
Quality Control and Standards Compliance
Standards Compliance
- ASTM B574 - Nickel-chromium-molybdenum and nickel-molybdenum alloys
- ASTM B366 - Nickel alloy forgings specification
- AMS 5754 - Aerospace material specification for Hastelloy X
- ISO 9001 - Quality management system certification
Quality Control Testing
- Chemical Analysis using OES or XRF spectroscopy
- Mechanical Testing including tensile, yield strength, and hardness tests
- Corrosion Testing with salt spray and immersion tests
- Dimensional Inspection using precision measurement tools
- Non-Destructive Testing with ultrasonic and magnetic particle methods
