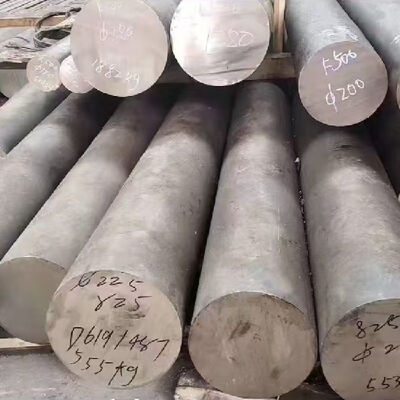

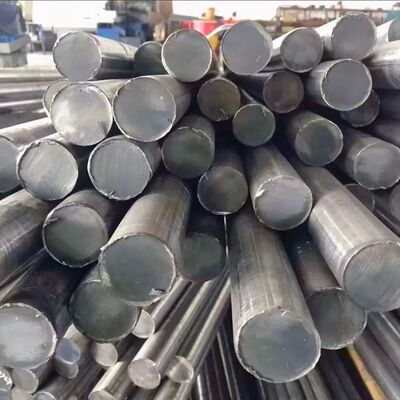

Corrosion Resistant High Strength Monel 400 Round Bar Precision Machined for Marine and Industrial Applications
| Model NO. | Monel 400 | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Pickling |
| Length | Custom Cutting Any Length As Request | Specification | OD10 - 350mm |
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Grade | Monel Series: 400 K500, Inconel Series: 600 601 625 718 725, Incoloy Series: 800 800H 825 925, Hastelloy Series: B,B2,B3,C,C-276,C-4,C-22, Pure: Ni200, Ni201 |
| Round Bar Diameter | 4~300mm | Flat Bar Thickness | 1.0~100mm |
| Flat Bar Width | 1~1500mm | Square Bar Size | 4*4-100*100mm |
| Surface | Black, Peeled, Polishing, Bright, Sand Blast, Hair Line | Density | 8.8 G/cm³ |
| Melting Point | 1300-1350°C | ||
| Highlight | Corrosion Resistant Monel 400 Round Bar,High Strength Nickel Alloy Round Bar,Precision Machined UNS N04400 Round Bar |
||
Premium nickel-copper alloy round bar offering exceptional corrosion resistance, high strength, and precision machining for demanding marine and industrial applications.
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|
| Grade | Monel series: 400, K500 Inconel series: 600, 601, 625, 718, 725 Incoloy series: 800, 800H, 825, 925 Hastelloy series: B, B2, B3, C, C-276, C-4, C-22 Pure: Ni200, Ni201 |
| Specifications |
Round bar: Diameter: 4-300mm Flat bar: Thickness: 1.0-100mm, Width: 1-1500mm Square bar: Size: 4×4-100×100mm Length: 2m, 5.8m, 6m, or as required Surface: Black, peeled, polishing, bright, sand blast, hair line, etc. |
| Price Term | Ex-work, FOB, CFR, CIF, etc. |
| Delivery Time | Standard sizes in stock, prompt delivery or as per order quantity |
| Package | Export standard package, bundled or as required |
Our high-quality Monel 400 Round Bar is a premium nickel-copper alloy manufactured to international standards including ASTM B164. Monel 400 (UNS N04400) delivers superior performance in corrosive environments, making it ideal for critical components in offshore, chemical processing, oil and gas, and marine engineering applications.
Outstanding performance in seawater, salt solutions, sulfuric acid, phosphoric acid, and alkaline solutions with corrosion rates below 0.025mm/year in flowing seawater.
Excellent mechanical properties maintained from sub-zero temperatures up to 540°C with tensile strength ≥480 MPa and elongation ≥35% in annealed condition.
Manufactured to tight dimensional tolerances (h8, h9 grades) ensuring easy integration and reduced secondary machining requirements.
Single-phase austenitic microstructure allows for good cold and hot workability with common welding methods including TIG and MIG.
Extended service life in aggressive environments reduces maintenance costs and downtime.
- Material Grade: Monel 400 / UNS N04400 / NCu30-2-1 / 2.4360
- Standard Specifications: ASTM B164, ASTM B865, ASME SB-164, SB-865, GB/T standards
| Element | Content |
|---|---|
| Nickel (Ni) | ≥ 63% |
| Copper (Cu) | 28 - 34% |
| Iron (Fe) | ≤ 2.5% |
| Manganese (Mn) | ≤ 2.0% |
| Carbon (C) | ≤ 0.3% |
| Silicon (Si) | ≤ 0.5% |
| Sulfur (S) | ≤ 0.024% |
- Density: 8.8 g/cm³
- Melting Point: 1300-1350°C
- Tensile Strength: ≥ 480 MPa
- Yield Strength (0.2% Offset): ≥ 170 MPa
- Elongation: ≥ 35%
- Hardness: HB 150-200
- Hot-rolled round bars: Diameter Φ8mm - Φ100mm
- Cold-drawn/finished round bars: Diameter Φ2mm - Φ280mm
- Forged round bars: Diameter Φ30mm - Φ350mm
- Custom sizes and lengths available upon request
- Marine & Offshore: Pump shafts, propeller shafts, valve stems, fasteners, seawater piping systems, condenser tubes, desalination plant components
- Oil & Gas: Valve components, pump parts, downhole tools, piping components for corrosive oil and gas production environments
- Chemical Processing: Reactors, heat exchangers, vessels, piping, and fittings handling acids (especially HF and H₂SO₄), alkalis, and other corrosive chemicals
- Power Generation: Components in feedwater heaters, evaporators, and other equipment
- Other Industries: Aerospace (fuel system components), pharmaceutical, and water treatment equipment

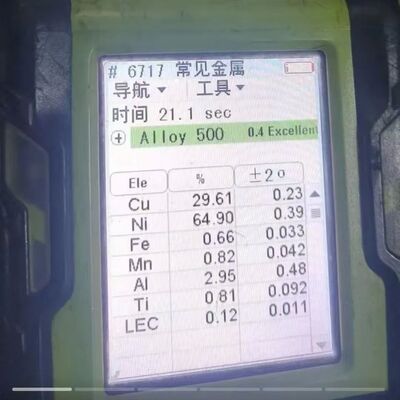

Every shipment includes a complete Material Test Report (MTR) certifying compliance with specified standards, including chemical composition and mechanical properties. We employ strict quality control throughout manufacturing and use proper packaging (rust-preventive oil, VCI paper) to ensure perfect condition upon arrival.
- Consistent High Quality: Sourced from reputable mills employing vacuum melting techniques (VIM/VAR) for high purity
- Technical Expertise: Our team provides expert guidance on material selection and fabrication techniques
- Reliable Supply: We maintain stock to meet your project timelines
- Competitive Pricing: We offer competitive pricing for high-quality material
